CR9EK NGK Standard Spark Plug | Genuine NGK Spark Plug

🔧 Product Description

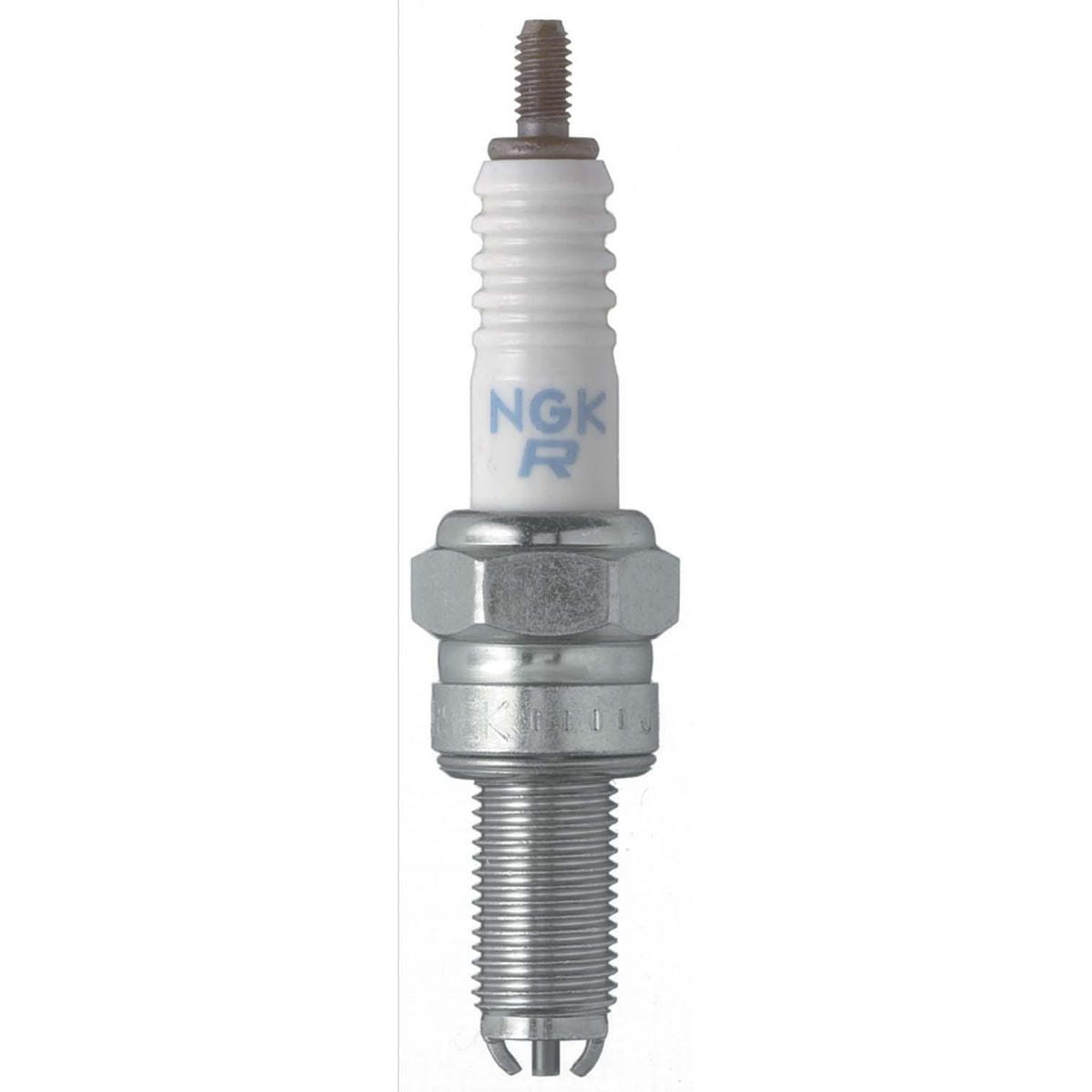

NGK Standard Spark Plug – Part Number: CR9EK

Spark plugs are a critical engine component, providing the spark that ignites the air-fuel mixture that drives an engine. NGK spark plugs feature trivalent plating – a silver/chrome-coloured finish on the threads – for corrosion resistance against moisture and chemicals, and are designed to meet or exceed OE standards.

⚙️ Key Features

• Standard nickel centre electrode
• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs reduce the risk of flashover
• Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

📏 Specifications

• NGK stock number: 4548
• Thread: 10 mm
• Reach: 19 mm (3/4 in)
• Hex: 16 mm (5/8 in)
• Seat: Gasket
• Terminal: Threaded stud
• Type: 2-Ground Electrode

🚘 Application

Listed in NGK's application charts for marine, motorcycle, ATV and snowmobile equipment. The gap is not the same on all of them – the chart lists between 0.5 mm and 1.0 mm depending on the engine, so check the line for yours.

• Kawasaki (Jet-Ski) STX (JT1500D) (1500, 2010-2009) – Personal Watercraft
• Kawasaki (Jet-Ski) STX-15F (JT1500-A) (1500, 2014-2004) – Personal Watercraft
• Kawasaki (Jet-Ski) STX-15F (JT1500-C) (1500, 2004) – Personal Watercraft
• Kawasaki (Jet-Ski) STX-15F (T1500AAF) (1500, 2010) – Personal Watercraft
• Kawasaki (Jet-Ski) STX-15F (JT1500AFF) (1500, 2016-2015) – Personal Watercraft
• Kawasaki (Jet-Ski) ULTRA LX (JT1500) (1500, 2014-2007) – Personal Watercraft
• Kawasaki (Jet-Ski) ULTRA LX (JT1500KFF) (1500, 2016-2015) – Personal Watercraft
• Kawasaki (Jet-Ski) STX-12F (JT1200-B) (1200, 2007-2003) – Personal Watercraft
• Atk SUPERMOTARD - 4-STROKE (600, 2003) – Motorcycle
• Beta ALP 4.0 (350, 2011-2008) – Motorcycle
• Cannondale C440 (440, 2002) – Motorcycle
• Cannondale E440 (440, 2002) – Motorcycle
• Cannondale EX400 (440, 2001) – Motorcycle
• Cannondale MX400 (440, 2001) – Motorcycle
• Cannondale X440 (440, 2002) – Motorcycle
• Cannondale XC400 (440, 2001) – Motorcycle
• Kawasaki ZR1200-A (1200, 2005-2004) – Motorcycle
• Kawasaki ZRX1200-A (1200, 2003-2001) – Motorcycle
• Kawasaki ZRX1200-R (1200, 2005-2004) – Motorcycle
• Kawasaki ZX1200-A - NINJA (1200, 2002-2001) – Motorcycle
• Kawasaki ZR1100-C (1100, 2000-1999) – Motorcycle
• Kawasaki ZRX1100 (1100, 2000-1999) – Motorcycle
• Kawasaki ZX1100-E - L/C (1100, 1997-1995) – Motorcycle
• Kawasaki ZX1100-F - L/C (1100, 1996) – Motorcycle
• Kawasaki Z1000A (1000, 2006-2004) – Motorcycle

That is the 25 most common of 80 applications NGK's charts list for this plug – ask us to check yours.

🔄 Supersession & Cross Reference

NGK's cross-reference tables list this plug against these part numbers.

• Champion: 653, G57C, RG92DC
• DENSO: 4155, U27ETR
• e3: E3.38

📦 Condition

• Brand new genuine product
• Supplied in original packaging
