CS0297C Faria Fuel Gauge | Genuine Used Part

🔧 Product Description

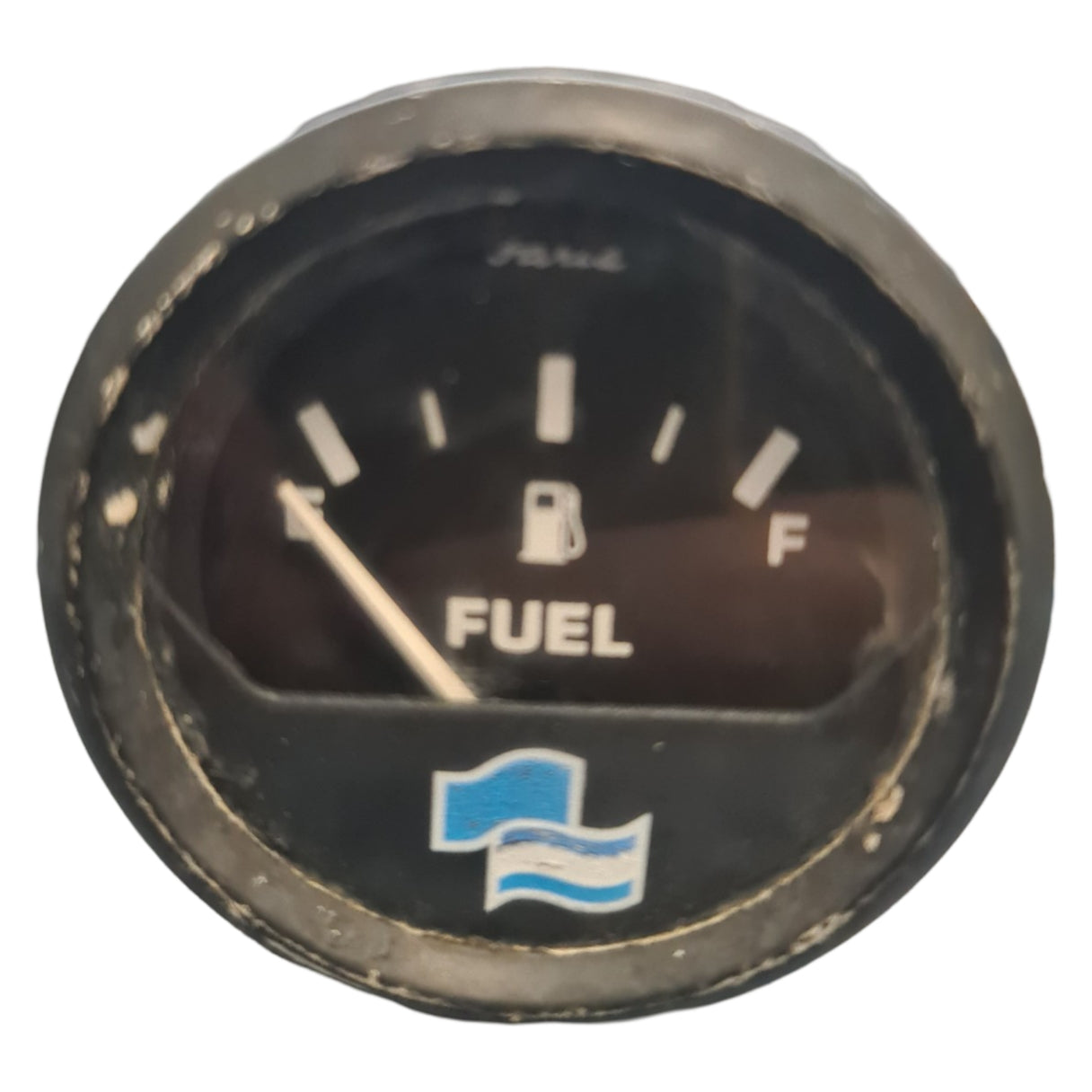

Genuine Faria Custom Marine Fuel Level Gauge - Part Number: CS0297C

A genuine used Faria Beede custom or boat-builder fuel-level gauge for a conventional resistive marine tank sender.

Part number CS0297C identifies a Faria custom-series instrument rather than a standard retail catalogue style. The gauge should be matched by face design, dashboard cutout, voltage and sender resistance before installation.

⚙️ Key Features

• Genuine Faria Beede marine fuel gauge
• Correct custom part number CS0297C
• Electrical empty-to-full fuel indication
• Designed for a resistive marine tank sender
• Suitable for compatible 12-volt boat dashboards

🚤 Compatibility

Commonly used on

• Custom boat-builder Faria instrument panels
• Petrol and diesel marine fuel tanks
• Single- and twin-tank installations
• Boats using conventional resistive senders

Typically suits

• Gauge Type: Electrical fuel-level gauge
• Electrical System: Commonly 12 volts
• Engine Compatibility: Not engine-specific
• Sender Requirement: Original sender resistance must match
• Installation Requirement: Confirm cutout, bezel, terminal positions and face style

🔌 Function

The gauge converts fuel-sender resistance into an empty-to-full tank-level indication.

⚠️ Common Signs of Failure

• Gauge remains on empty or full
• Reading is reversed
• Needle fluctuates
• Gauge and sender resistance do not match
• Sender float, ground or wiring is faulty

🔄 Supersession & Cross Reference

OEM Supersession Chain

• No confirmed Faria supersession for CS0297C
• CS0297C remains the verified custom instrument reference

OEM / Related Numbers

• Faria: CS0297C
• Faria Custom Series fuel gauge
• Likely 2-inch-class marine instrument
• Original boat-builder cross-reference not confirmed
• Sender resistance must be measured or confirmed from the original installation
• Common Faria sender families include 240-33 ohms and 10-180 ohms

Aftermarket / Verified Equivalents

• Faria Beede 240-33-ohm fuel gauge when the original sender uses the American range
• Faria Beede 10-180-ohm fuel gauge when the original sender uses the European range
• Sierra and Veethree fuel gauges in the matching resistance range
• KUS fuel gauge with compatible sender
• No direct cosmetic replacement has been verified

📦 Condition

• Genuine used part
• Removed from running vessel where applicable
• In good working condition unless otherwise stated
