DJ C0830 Aftermarket Cummins 6B Series Seawater Pump 1-1/2 Inch Ports, Sherwood GC1 | Sawley's Select Marine Parts

🔧 Product Description

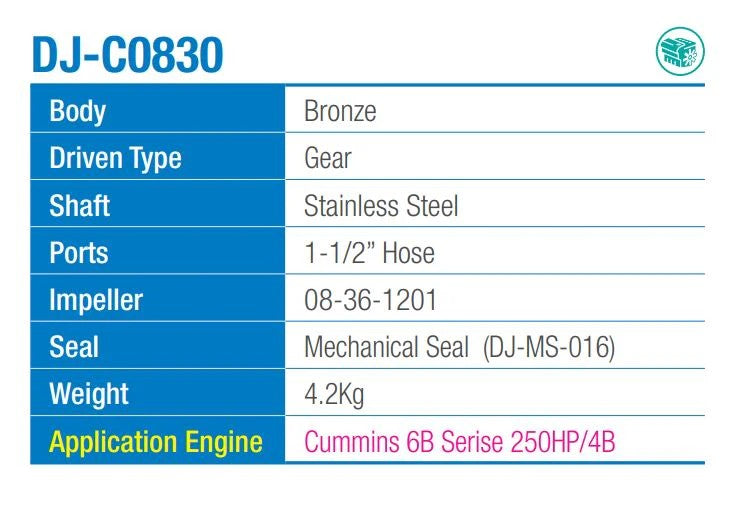

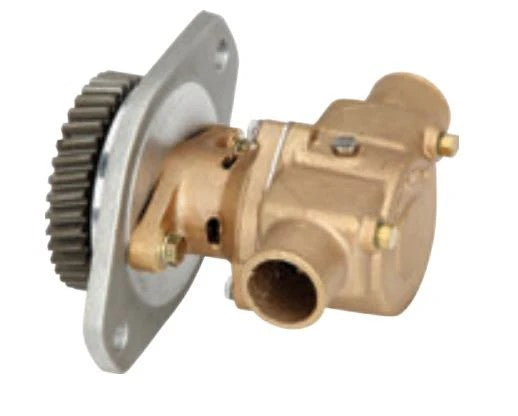

Aftermarket replacement 6B-Series 1-1/2-Inch Seawater Pump - Part Number: DJ C0830

New aftermarket engine-cooling seawater pump for Cummins 4B and 6B marine engine installations using Sherwood GC1, Cummins 6B-series applications requiring 1-1/2-inch inlet and outlet ports. It replaces the listed OEM pump family and is supplied as a complete assembled pump. For 1-1/4-inch ports use the JPR-C1025 family instead.

⚙️ Key Features

• Direct aftermarket replacement for DJ C0830

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Gear-driven pump

• Port configuration: 1-1/2-inch hose inlet and outlet

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: DJ C0830

• 1 × Installed impeller - Sherwood 15000K / DJ AN 3790

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Mounting gasket LP 3008400 is not included unless stated

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• DJ C0830 → Replaces / cross-references Cummins 6B Sherwood-GC1 pump family

OEM / Related Numbers:

• Cummins 6B Sherwood-GC1 pump family

Aftermarket / Verified Equivalents:

• Sherwood: GC1

• DJ Pumps: DJ-C0830

Service Parts / Kits:

• Mechanical seal: DJ MS016

🚤 Compatibility

Commonly used on:

• DJ Pumps / Cummins marine engine-cooling systems

Typically suits:

• Engine models:

• Cummins 4B and 6B marine engine installations using Sherwood GC1

• Cummins 6B-series applications requiring 1-1/2-inch inlet and outlet ports

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: 1-1/2-inch hose inlet and outlet; Gear-driven pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
