🔧 Product Description

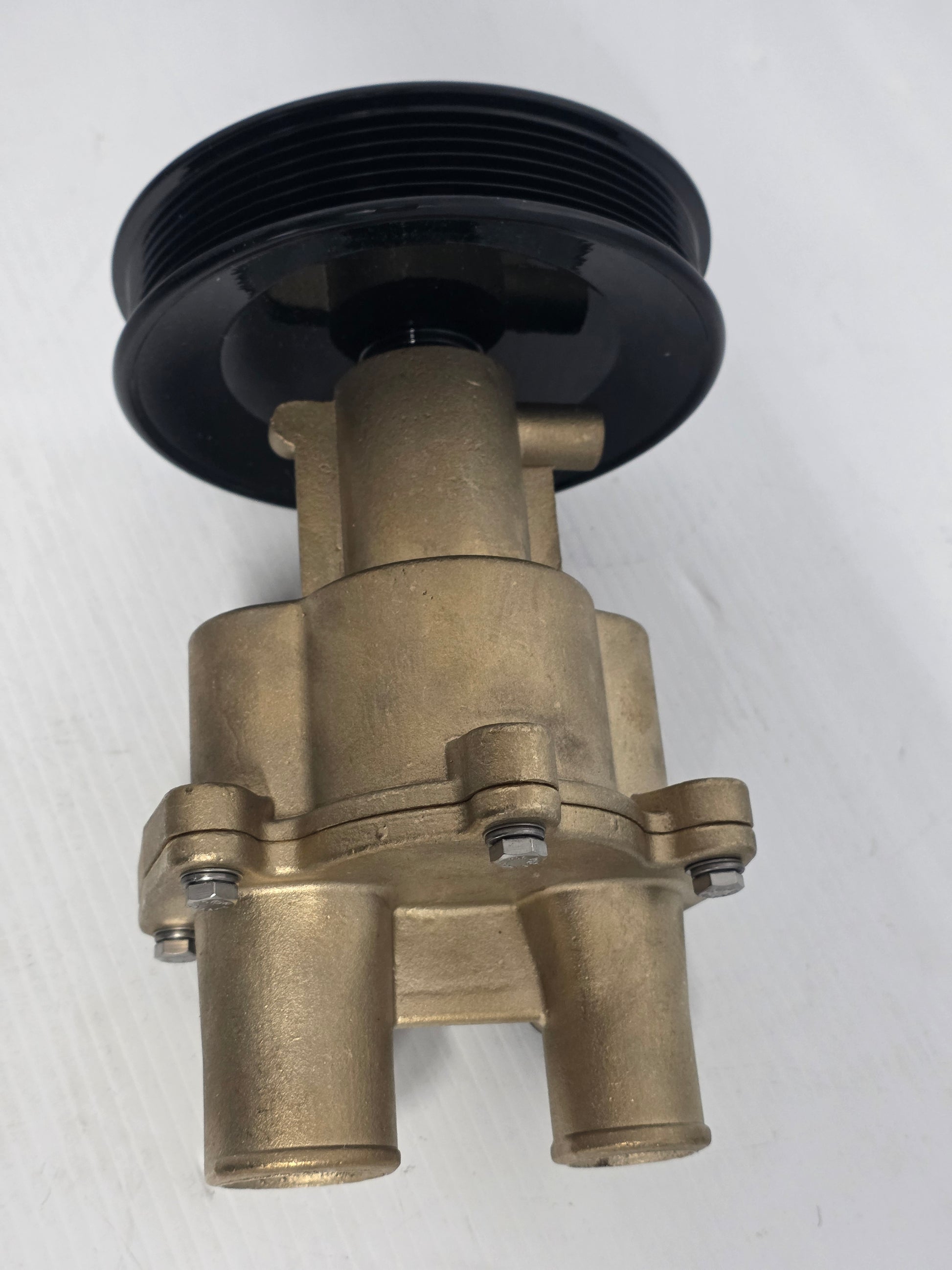

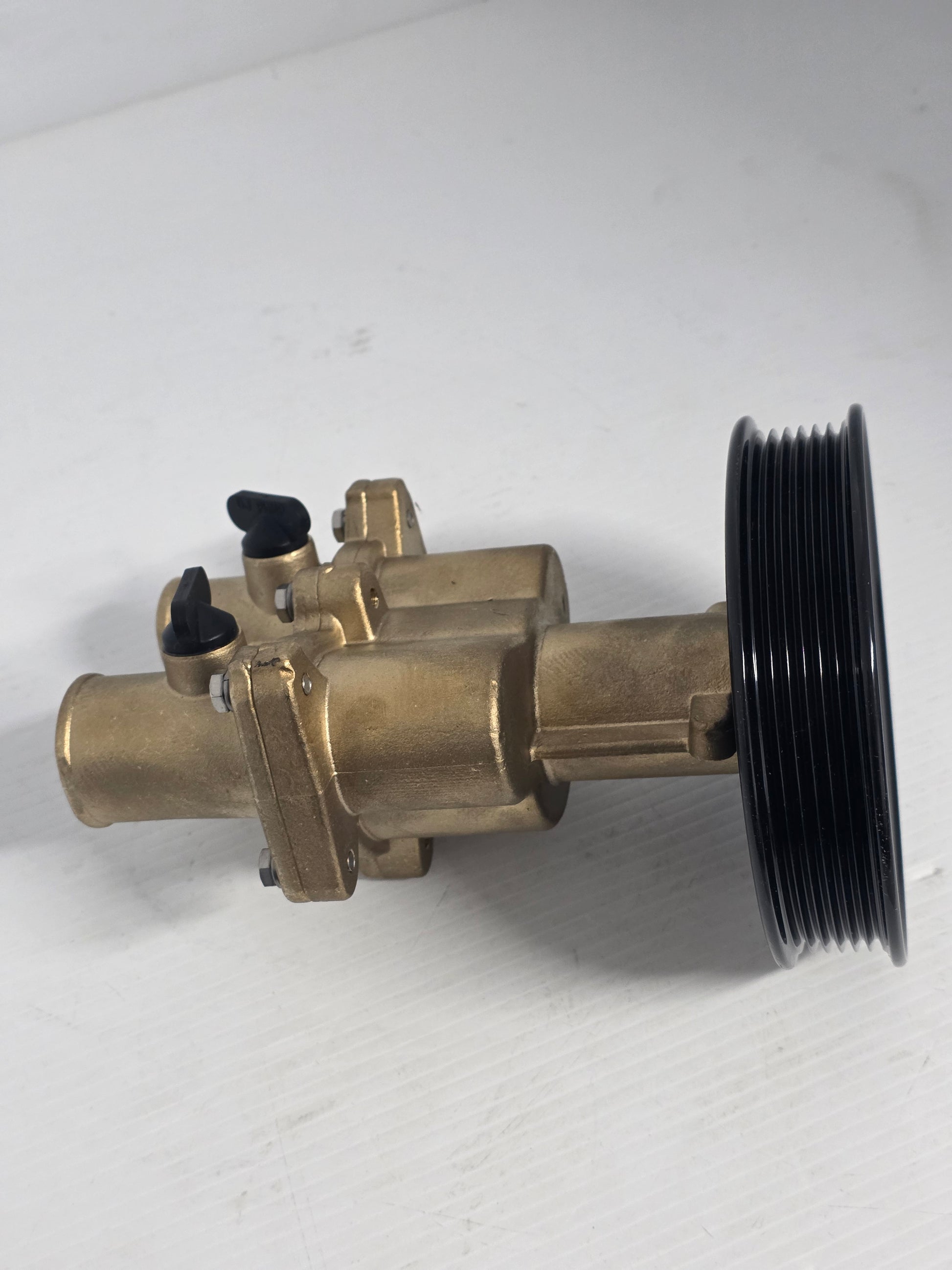

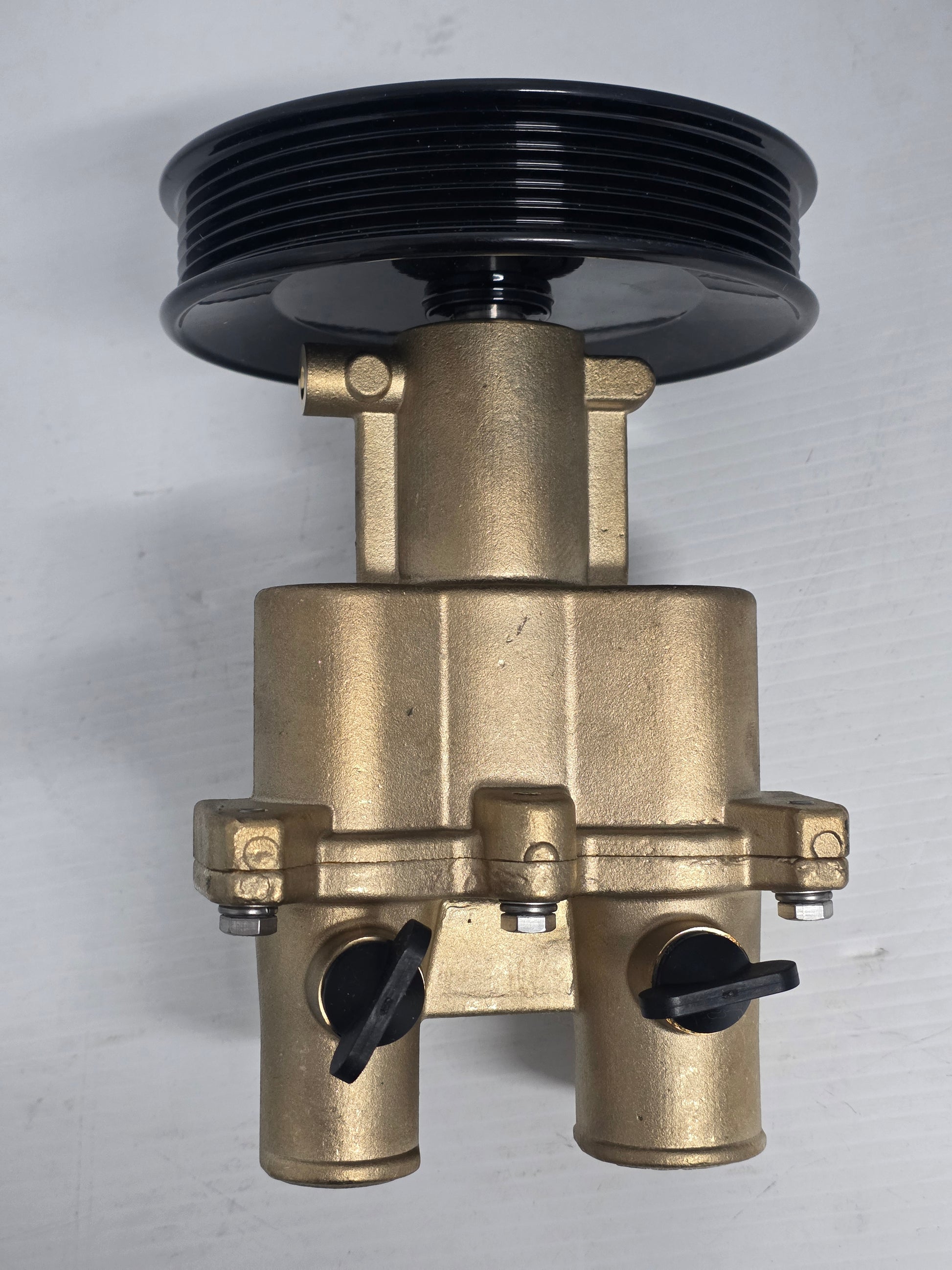

Aftermarket DJ Pump bronze MerCruiser seawater pump with pressed pulley - Replacement Part Number: DJ M14862-P

A complete newer-style bronze seawater pump for MerCruiser MPI and MAG petrol engines. It replaces the later 46-862914T10/T11/T12 and 8M0139995 pump family and is supplied with the pressed drive pulley and winterisation drain plugs already fitted. This is the bronze-body replacement for the later plastic-housing pump arrangement.

⚙️ Key Features

• Bronze pump body with stainless-steel shaft

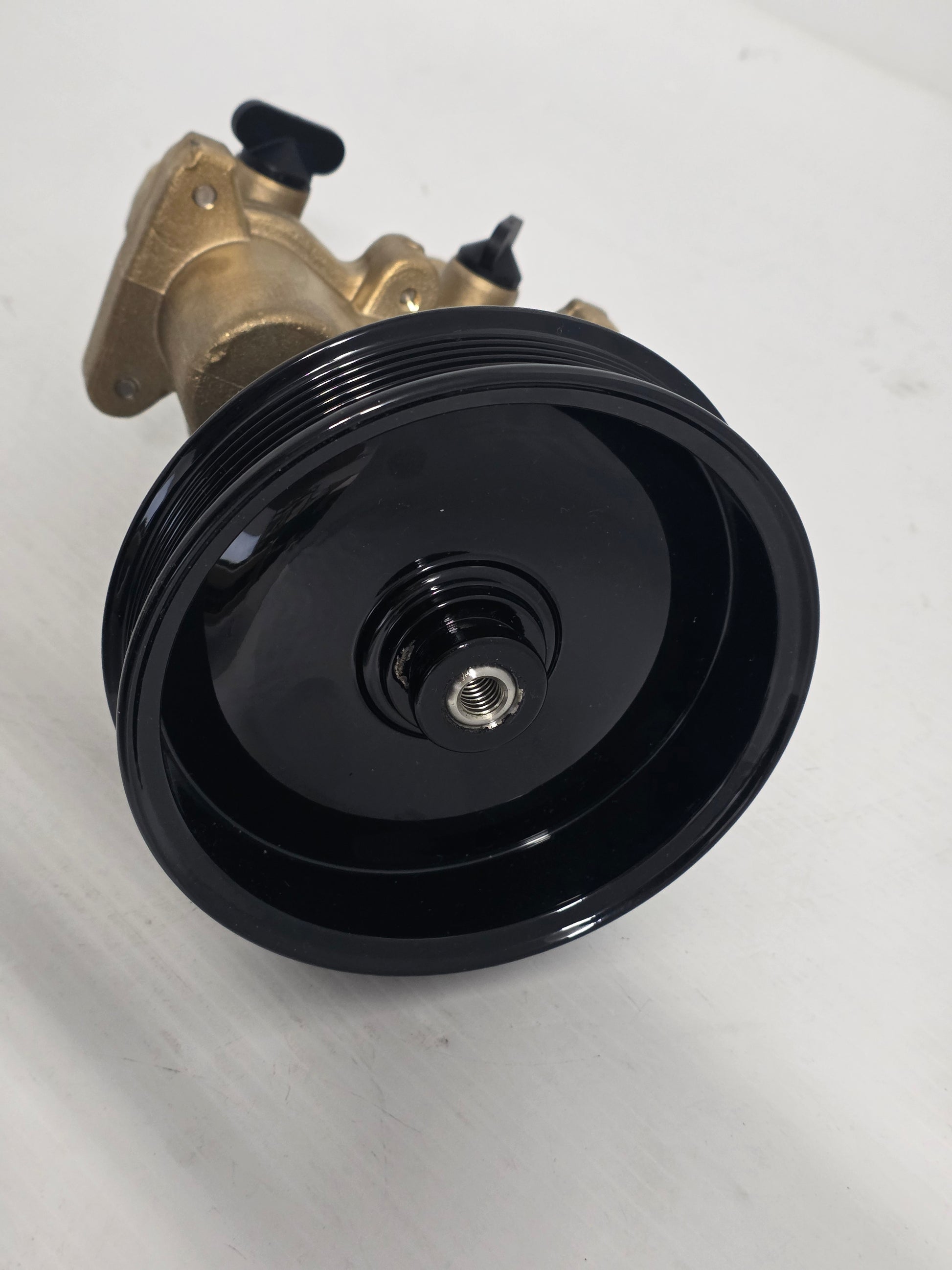

• Pressed multi-rib drive pulley included

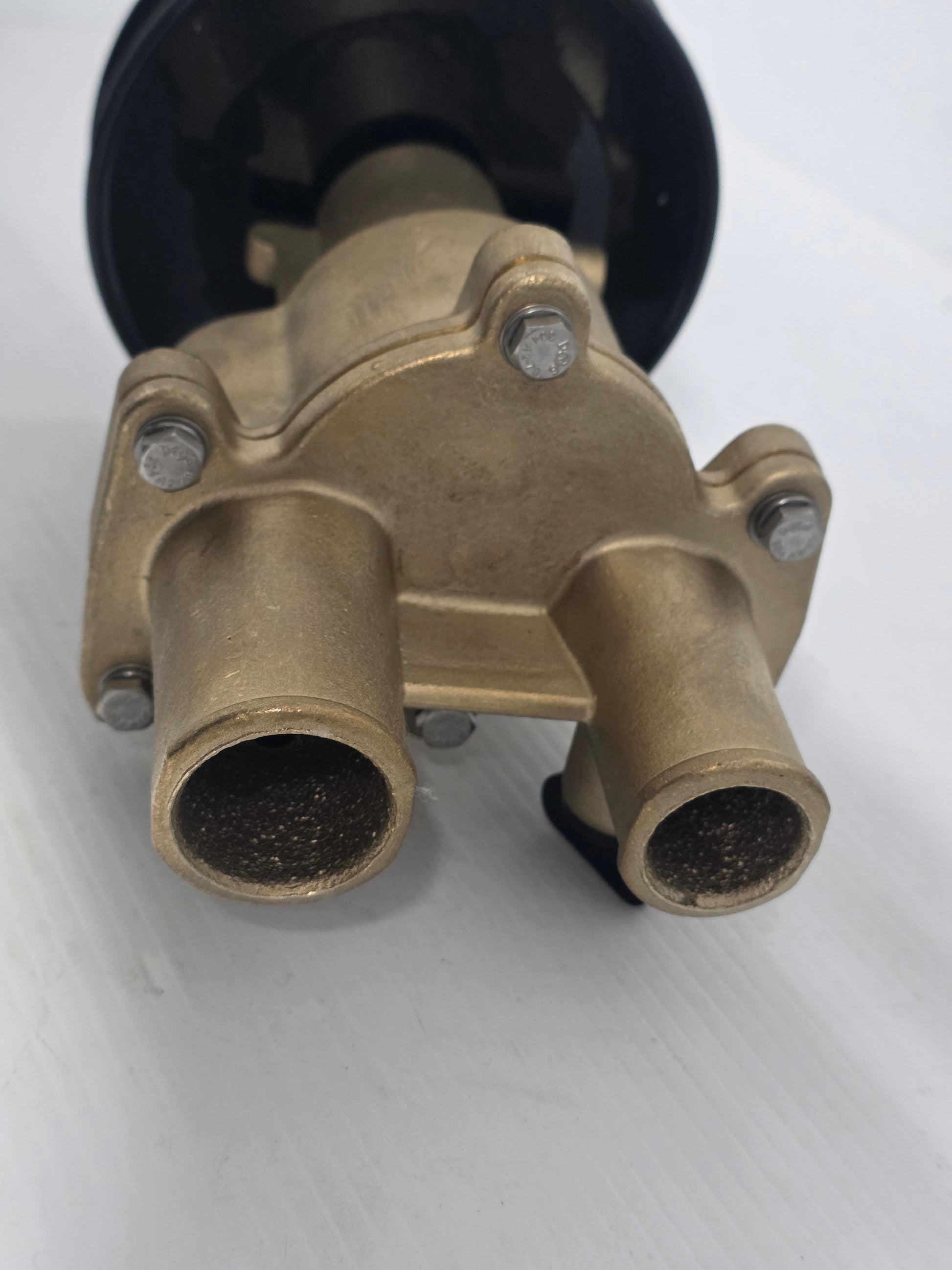

• 1-1/4-inch and 1-1/2-inch seawater hose connections

• Winterisation drain plugs included

• Serviceable bearings, seals, shaft and impeller

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 8M0139995 → Supersedes 46-862914T12

• 46-862914T12 → Supersedes 46-862914T11

• 46-862914T11 → Supersedes 46-862914T10

OEM / Related Numbers:

• DJ M14862-P

• 8M0139995

• 46-8M0139995

• 46-862914T10

• 46-862914T11

• 46-862914T12

• Impeller: DJ 09-47-0801 / HJB-M-128

• Shaft: DJ 14862-002

• Bearing: DJ 14862-003 - Quantity 2

• Mechanical/lip seal: DJ 14862-004 / Mercury 8M2001645

• Oil seal: DJ 14862-005

• Retaining ring: DJ 14862-006

Aftermarket / Verified Equivalents:

• DJ Pump: M14862-P

• Recmar: REC46-862914T10

Included Components:

• Complete bronze seawater pump assembly - Part Number: DJ M14862-P

• Pressed drive pulley - supplied fitted

• Flexible impeller - Part Number: DJ 09-47-0801 / HJB-M-128

• Winterisation drain plugs - supplied fitted

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• MerCruiser 4.3L MPI V6

• MerCruiser 5.0L MPI V8

• MerCruiser 350 MAG MPI and MX 6.2L small-block V8

• MerCruiser 6.2L MPI V8

• MerCruiser 8.2 MAG and 8.2 MAG HO V8

• HP Range: Engine-rating specific; typically approximately 220HP-430HP

• Engine Type: MerCruiser carburetted or MPI petrol V6/V8 marine engine using the later pulley-driven pump

• Year Range: Model- and serial-specific; confirm the original pump is in the 46-862914T10/T11/T12 or 8M0139995 family

• Pump Material: Bronze

• Drive: Pressed multi-rib pulley

• Seawater Connections: 1-1/4 in and 1-1/2 in hose

• Impeller Reference: DJ 09-47-0801 / HJB-M-128

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
