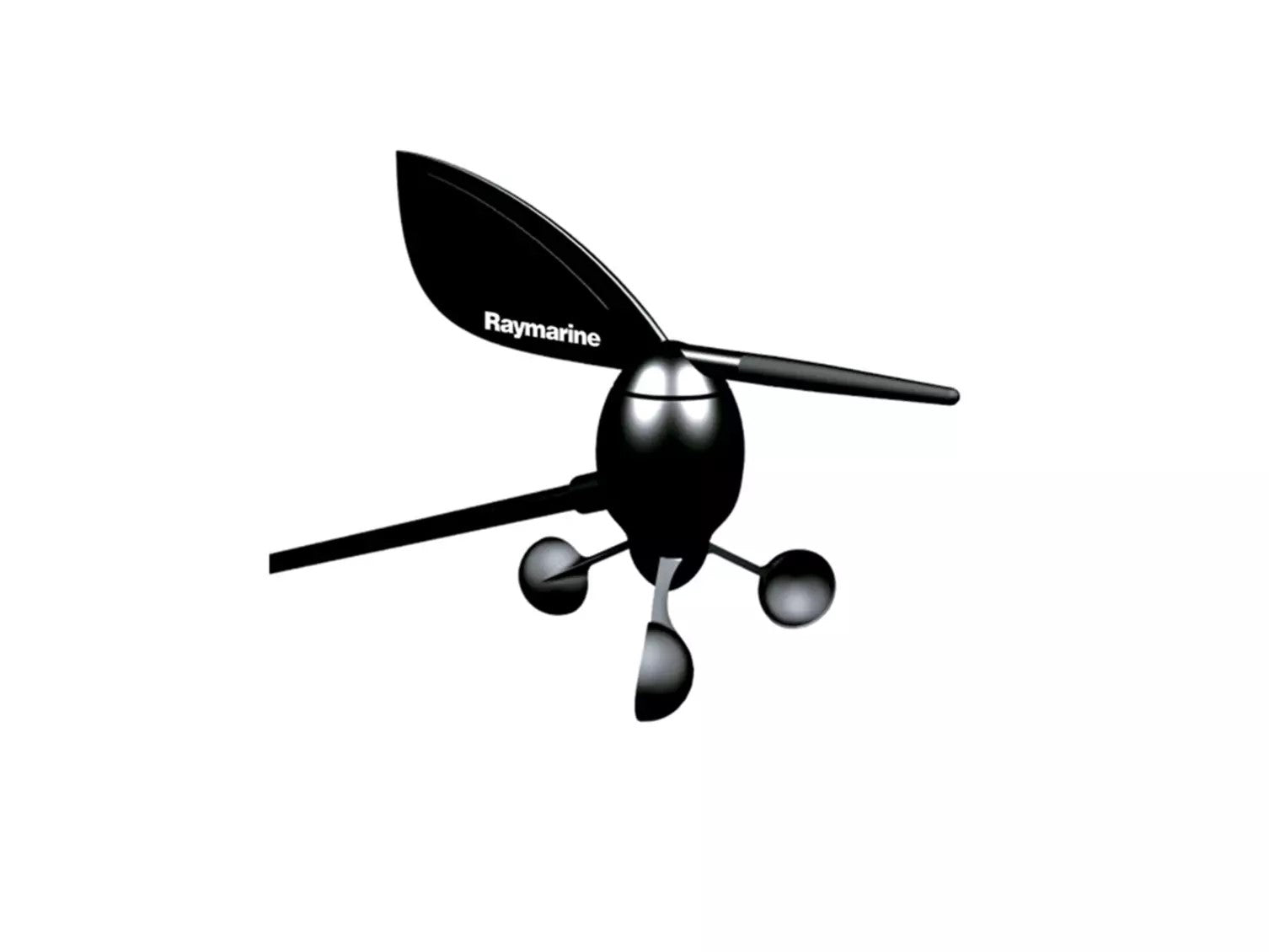

E22078 Raymarine Short Arm Vane Transducer - Part Number: E22078

Masthead wind speed and direction sensor for sailing vessels and powerboats

Model: Short Arm Wind Transducer supplied with 30m (97.5’) Cable

Overview

The wired masthead wind transducer provides accurate measurement of relative wind speed and direction.

When combined with other sensors like boat speed and compass, the masthead transducer provides the necessary wind information to calculate true wind speed, true direction and many other advanced data items.

Available in 2 different lengths, the 300mm short-arm version is the perfect choice for cruising sailboats or power boats. High performance sailing boats may prefer the 600mm long-arm version which moves the transducer farther away from the updraft of the boat's sails for enhanced accuracy.

  • Durable anodized aluminium and UV-stabilised plastic construction
  • Masthead mounting block and interconnect cable included
  • Compatible with i60 Wind, iTC-5, ST60+ and ST60 series instruments
  • Replaceable feather/pointer and speed cups (part number A28167)

Genuine Raymarine product for the Australian market, with Australian warranty support.

📏 Specifications

Physical
Weight Boxed: 2.5 Kg (5.5 lbs), Wind vane assembly: 0.2 (0.4 lbs), Cable assembly: 1.2 Kg (2.6 lbs)
Dimensions Arm length: 300 mm (11.8 in), Cable length: 30 m (98.4 ft)
Conformance
Standards EN 60945:2002, EMC Directive 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

📦 What's in the box

  • Short / Long arm wind vane base with cable assembly
  • Short / Long arm wind vane assembly
  • Arm retaining clip
  • Junction box
  • Double sided adhesive pads x 2
  • Terminal block
  • Documentation
  • Drill bit (4 mm)
  • Pan head pozi screws No 4x3/8&quot (junction box fixings) x 6
  • Pan head pozi screws No 10x3/4&quot (base mounting fixings) x 2
  • Junction box grommets x 2
  • Protective sleeve (40 mm x 4 mm) x 2

✅ Condition

  • Brand new genuine product
  • Supplied in original packaging
  • Full Australian manufacturer warranty
