E4040 Mackay 2830 Dunbier 7 Pin Large Round Trailer Plug Vic & SA Skin Pack | Marine Trailer Part
E4040 Mackay 2830 Dunbier 7 Pin Large Round Trailer Plug Vic & SA Skin Pack | Marine Trailer Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

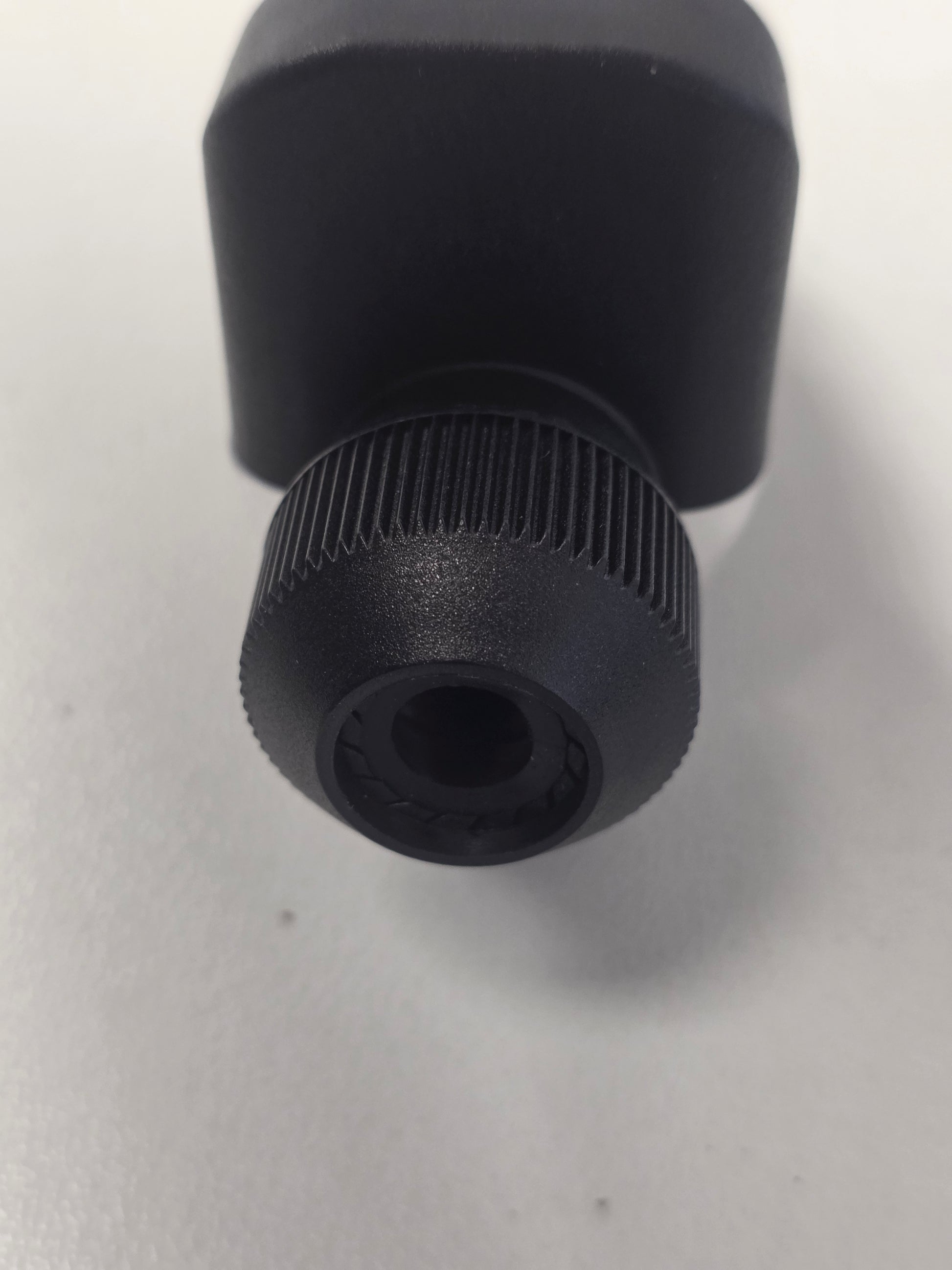

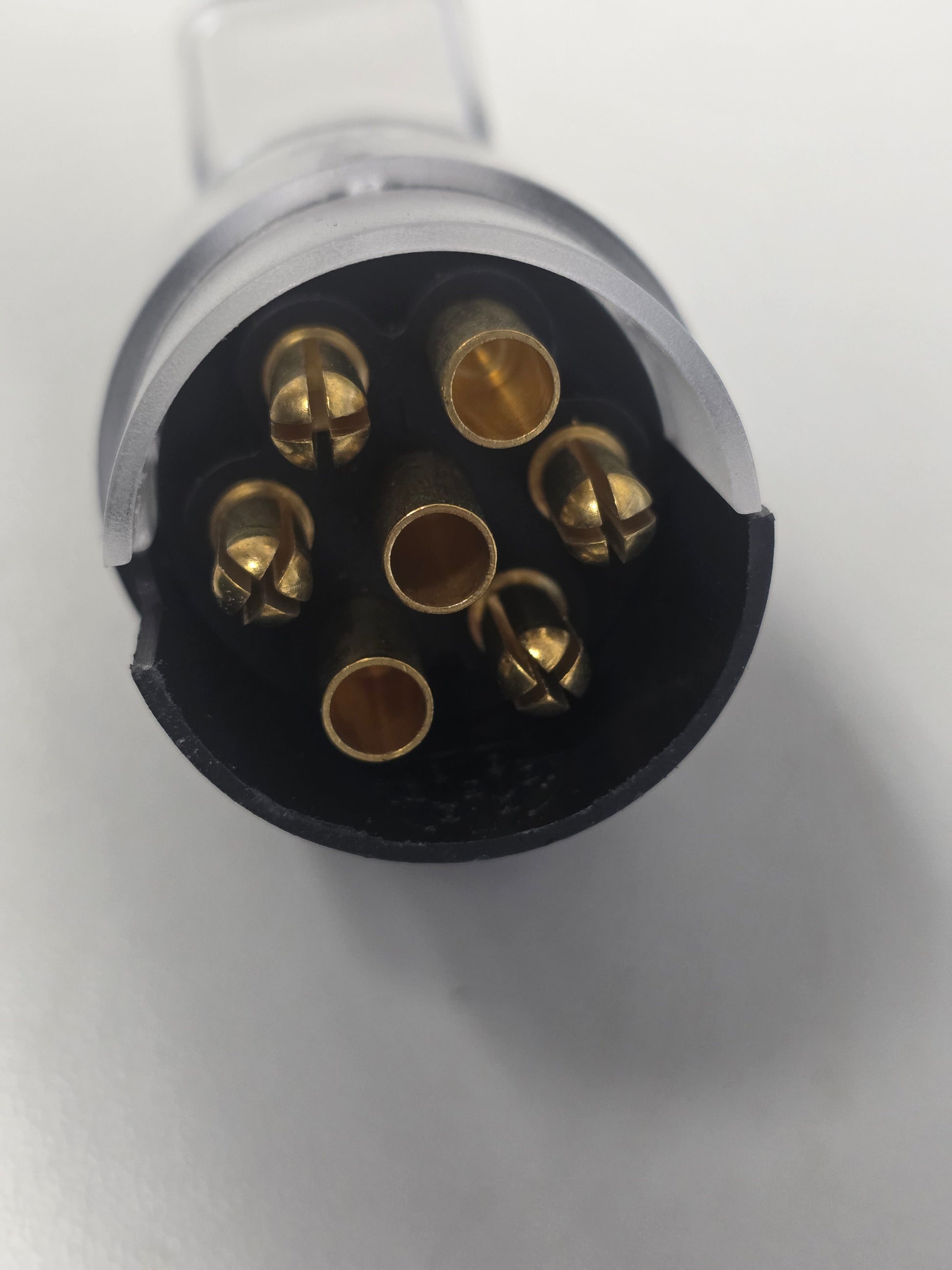

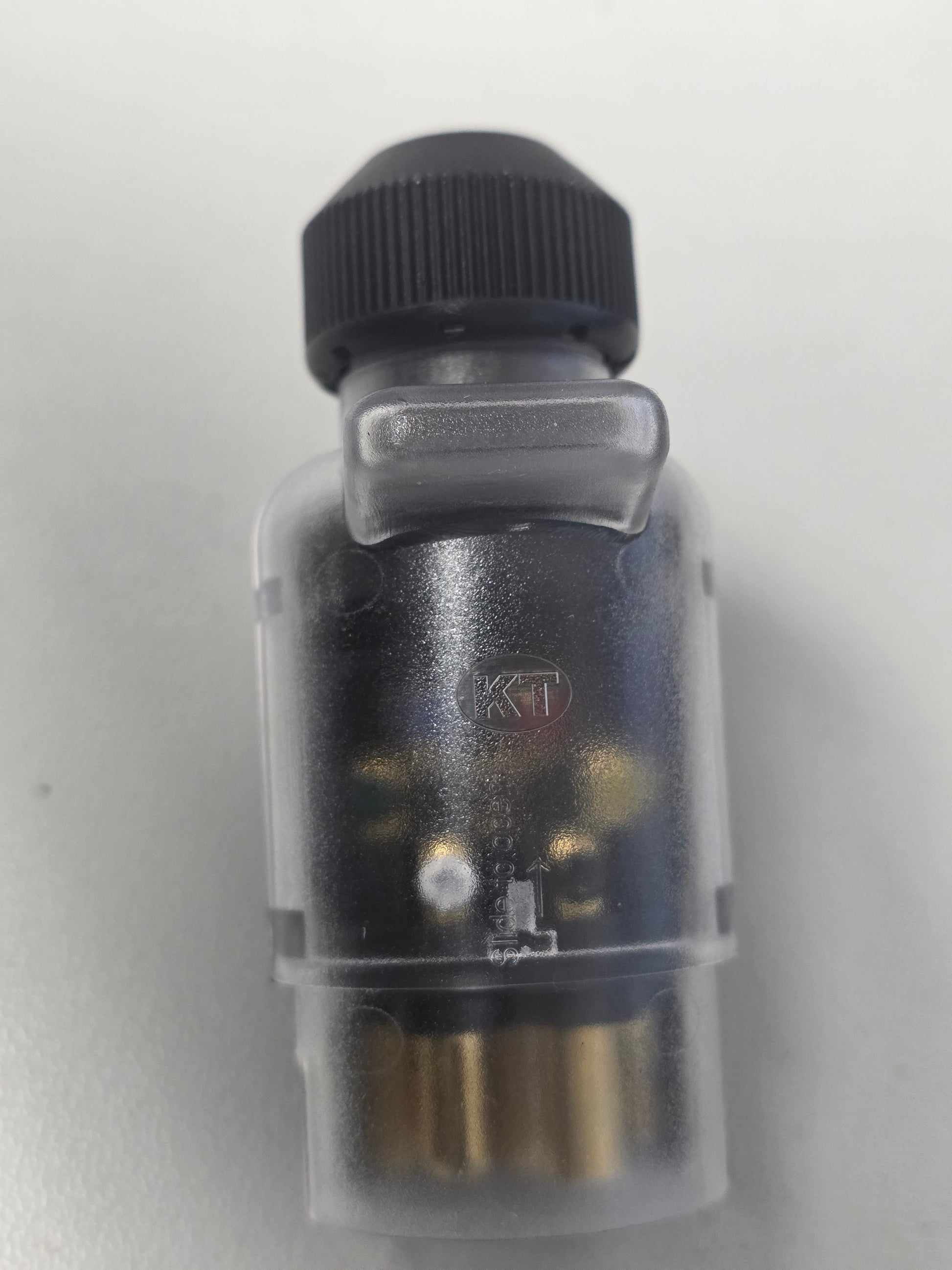

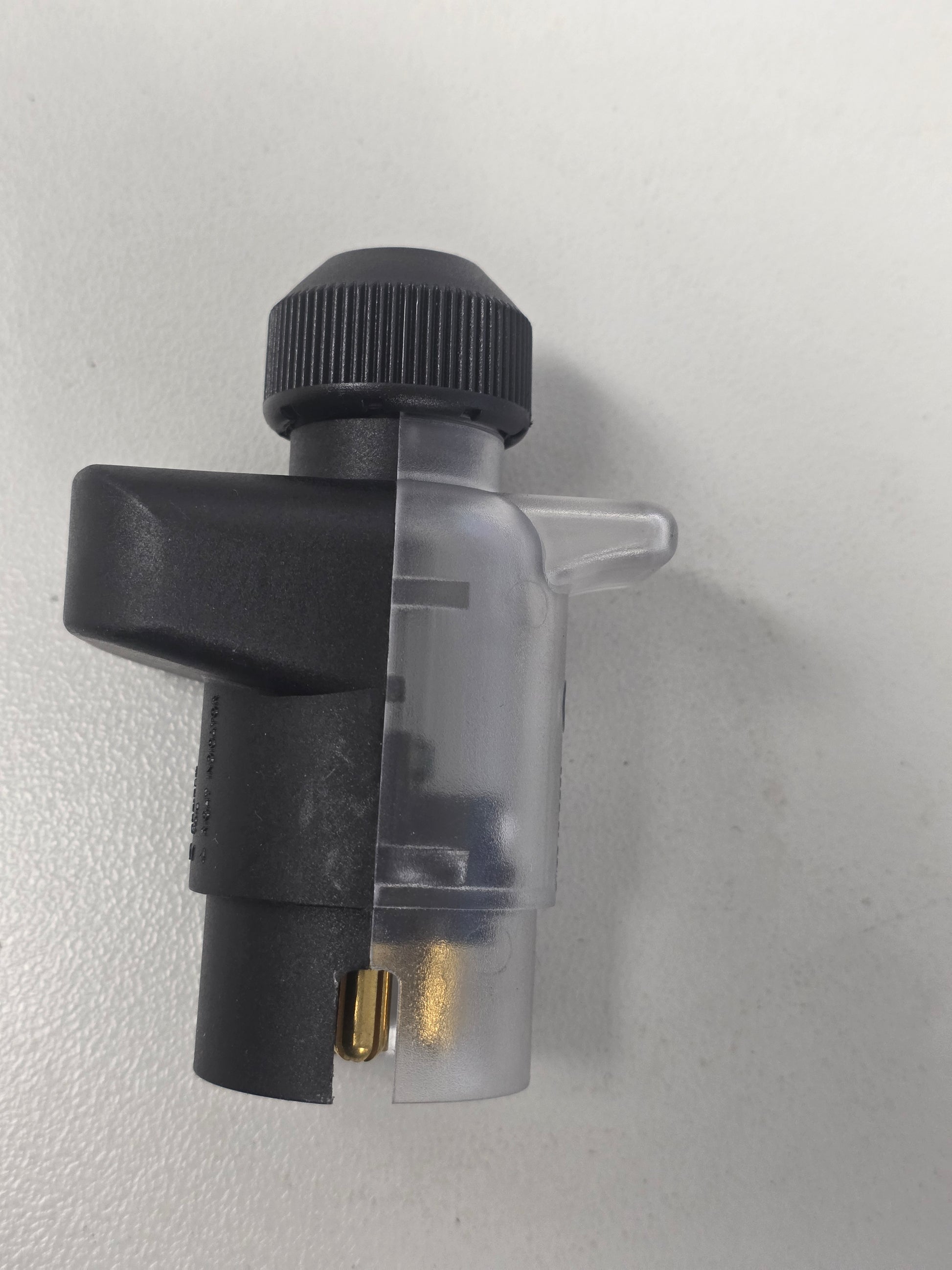

Mackay 7-Pin Large Round Plastic Trailer Plug – Victoria/SA Pattern – Part Number: E4040
A large round seven-pin trailer plug for connecting the trailer electrical loom to the tow vehicle. The terminal layout carries the standard road-lighting circuits and, on the 12-pin version, additional auxiliary power or control circuits.
⚙️ Key Features
- Colour-coded wiring screws
- Clear inspection panel
- Plastic weather-resistant body
- Skin-pack retail packaging
📏 Specifications
- Connector type: large round seven-pin trailer plug
- Matching connection: Victoria and South Australia wiring pattern
- Dunbier reference: 2830
- Wire gauge and circuit loading must match the terminal capacity
- Pin assignment must follow the vehicle and trailer wiring standard in use
🔄 Cross Reference & Related Parts
- Mackay: E4040
- Dunbier: 2830
- Use only a matching plug and socket pattern
- Adapters are available for some 7-pin formats but do not create missing auxiliary circuits
🚤 Trailer Compatibility & Application
- Suitable for boat and general trailers using the specified connector pattern
- The large-round Victorian/SA pattern is not wired identically to every seven-pin round connector
- Twelve-pin auxiliary circuits must be fused and cable-sized separately
🔌 Function
Provides a detachable electrical connection for trailer lamps, brakes and authorised auxiliary circuits.
⚠️ Common Signs of Failure
- Pins are bent, burnt or corroded
- Housing is cracked or cover is missing
- Terminal screws loosen repeatedly
- Trailer lamps work intermittently when the plug is moved
- Heat damage indicates an overloaded or poor connection
🛠️ Installation & Safety
- Disconnect the battery or relevant supply before wiring
- Follow the correct pin diagram rather than wire colour alone
- Strip conductors cleanly and prevent loose strands
- Provide cable strain relief and weather sealing
- Test every circuit after assembly
📦 Condition
- Brand new Mackay trailer component
- Supplied as one large round seven-pin trailer plug
- Supplied in original or equivalent packaging
