🔧 Product Description

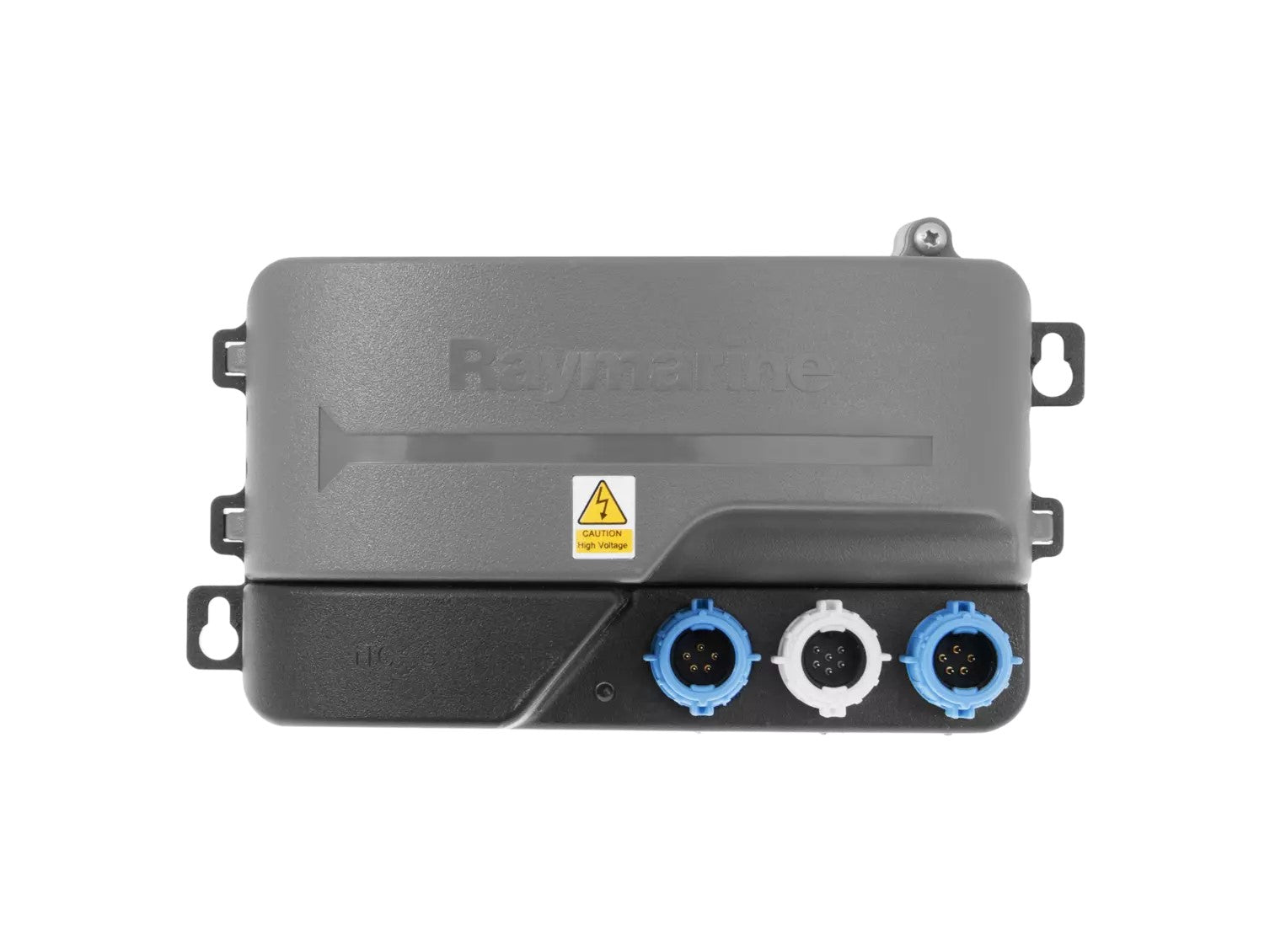

E70010 Raymarine iTC-5 Instrument Transducer Converter - Part Number: E70010
The Raymarine iTC-5 converts analogue transducer signals used in i70, ST70+ and ST70 instrument systems to SeaTalk NG.
Model: iTC-5 Instrument Transducer Converter
Convert transducer signals to SeaTalkNG with ease
The Raymarine iTC-5 converts analogue transducer signals used in i70, ST70+ and ST70 instrument systems to SeaTalkNG.
Transducers for Speed/Temperature, Depth, Wind and Rudder Angle can be connected to the one iTC-5 unit, eliminating the need for multiple ST70 pods.
iTC-5 Key Features
- Extended SeaTalkNG systems can support multiple iTC-5 units.
- SeaTalkNG connections at the base of the unit simply connect the iTC-5 unit into the SeaTalkNG backbone.
- Please note the ST40/i40/i50/i60 and ST60+ displays cannot calibrate the iTC-5. Only the i70 has full transducer calibration. The ST70/ST70+ can calibrate the Depth, Wind and Speed/Temp transducers (not Rudder or Compass).
- If you don't have an ST70/ST70+ or i70 in your system, then the ST40/i40/i50/i60/ST60+ displays must be interfaced directly to the relevant analogue transducers
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Power | |
|---|---|
| Power consumption | Typical: 1.5 W |
| Operating voltage range | 9 - 16 V dc |
| Nominal supply voltage | 12 V dc |
| Current | < 150 mA peak operating current |
| LEN (NMEA 2000 Load Equivalency Number) | 3 |
| Data connections | |
| Connections | SeaTalkng backbone, 1 x SeaTalkng spur, 5 x transducer connections with spade terminals |
| Environmental | |
| Relative humidity | Max. 95% |
| Splash proof | IPx2 |
| Storage temperature | -25° C to +70° C |
| Operating temperature | -15° C to +55° C |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
📦 What's in the box
- iTC-5
- Fixing screws x 2
- Documentation
- 400mm SeaTalkng spur cable (A06038)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
