🔧 Product Description

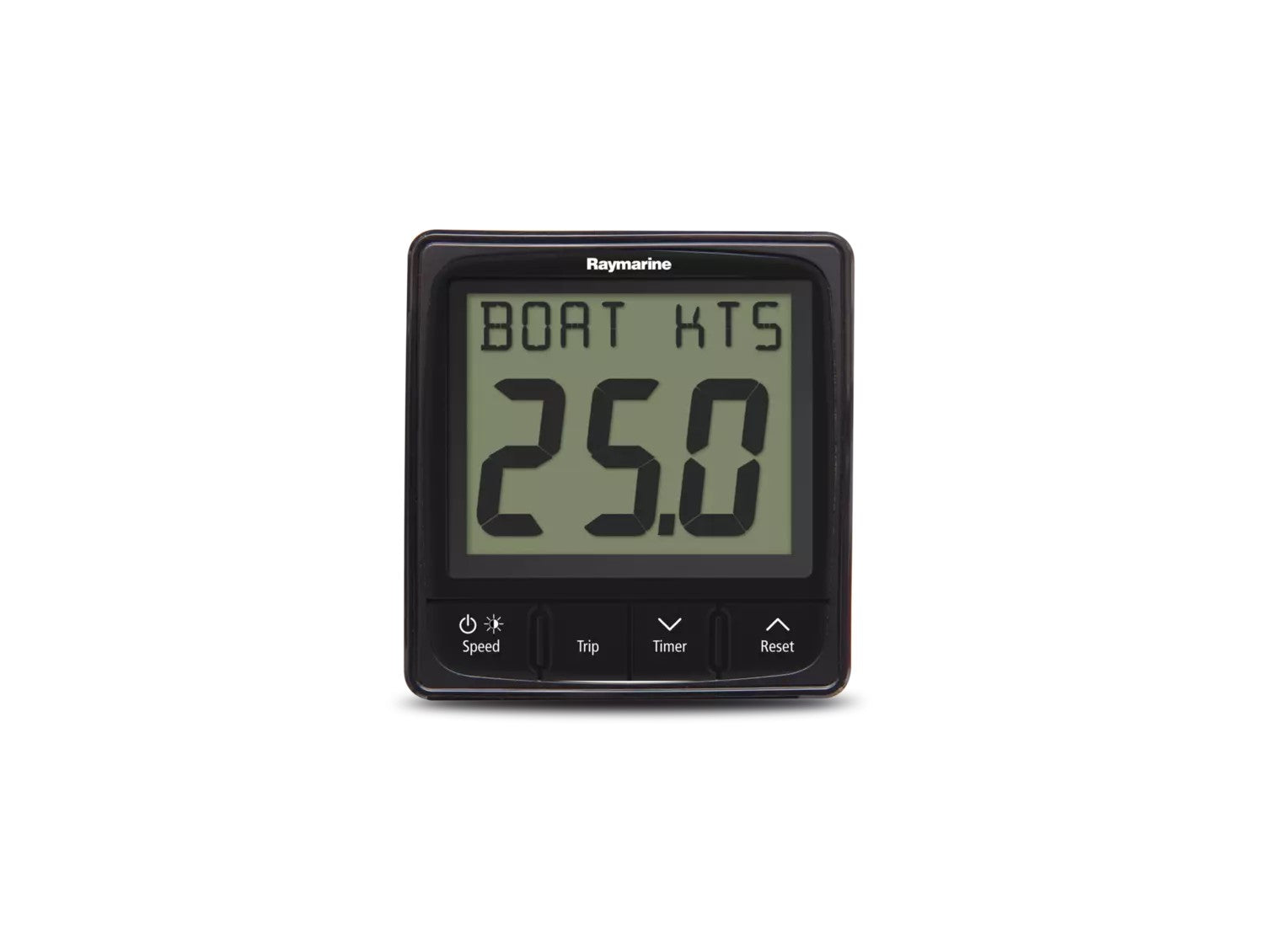

E70058 Raymarine i50 Speed Display (Digital) - Part Number: E70058
The i50 Speed displays through water speed or speed over ground along with sea surface temperature and trip and log data.
Model: i50 Speed Display (Digital)
Compact and Powerful
The i50 Speed instrument display is designed for easy viewing of your boat’s speed through the water or speed over ground. The i50 Speed instrument can also display trip and log data as well as water temperature. Ideal for use on RIBs, powerboats, and small yachts, the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen, even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.
i50 Speed Key Features
- Oversized digits for easy viewing by day or night
- Red backlighting enhances night visibility
- SeaTalk NG, NMEA2000 and SeaTalk network compatible
- Built-in speed/temperature transducer interface
- Compact footprint
- Low power consumption
- Surface mount or optional trunnion mount kit
Full Integration with Raymarine Equipment
All i50 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i50 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. I50 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Physical | |
|---|---|
| Dimensions | Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in) |
| Connections | 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-13 °F to 131 °F) |
| Conformance | |
| Standards | Europe 2004/108/EC |
| Power | |
| Current (typical / max) | 45-65 mA (display only) / 200 mA maximum (transducer connected) |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10 V dc to 16 V dc |
| Power consumption | < 1 W typical (display only), 2.4 W maximum (transducer connected) |
| LEN (NMEA 2000 Load Equivalency Number) | 4 |
📦 What's in the box
- i50 Instrument display
- Suncover (to match i70s, p70s, p70Rs, eS Series)
- Front bezel (to match i70s, p70s, p70Rs, eS Series)
- Gasket
- Suncover (to match a, c, e Series)
- Front bezel (to match a, c, e Series)
- 400mm (15.7 in) SeaTalkng spur cable
- SeaTalkng blanking plug
- Fixing screws x4
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
