E70061 Raymarine i60 Wind Display (Analogue) | Genuine Raymarine Electronics
E70061 Raymarine i60 Wind Display (Analogue) | Genuine Raymarine Electronics
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

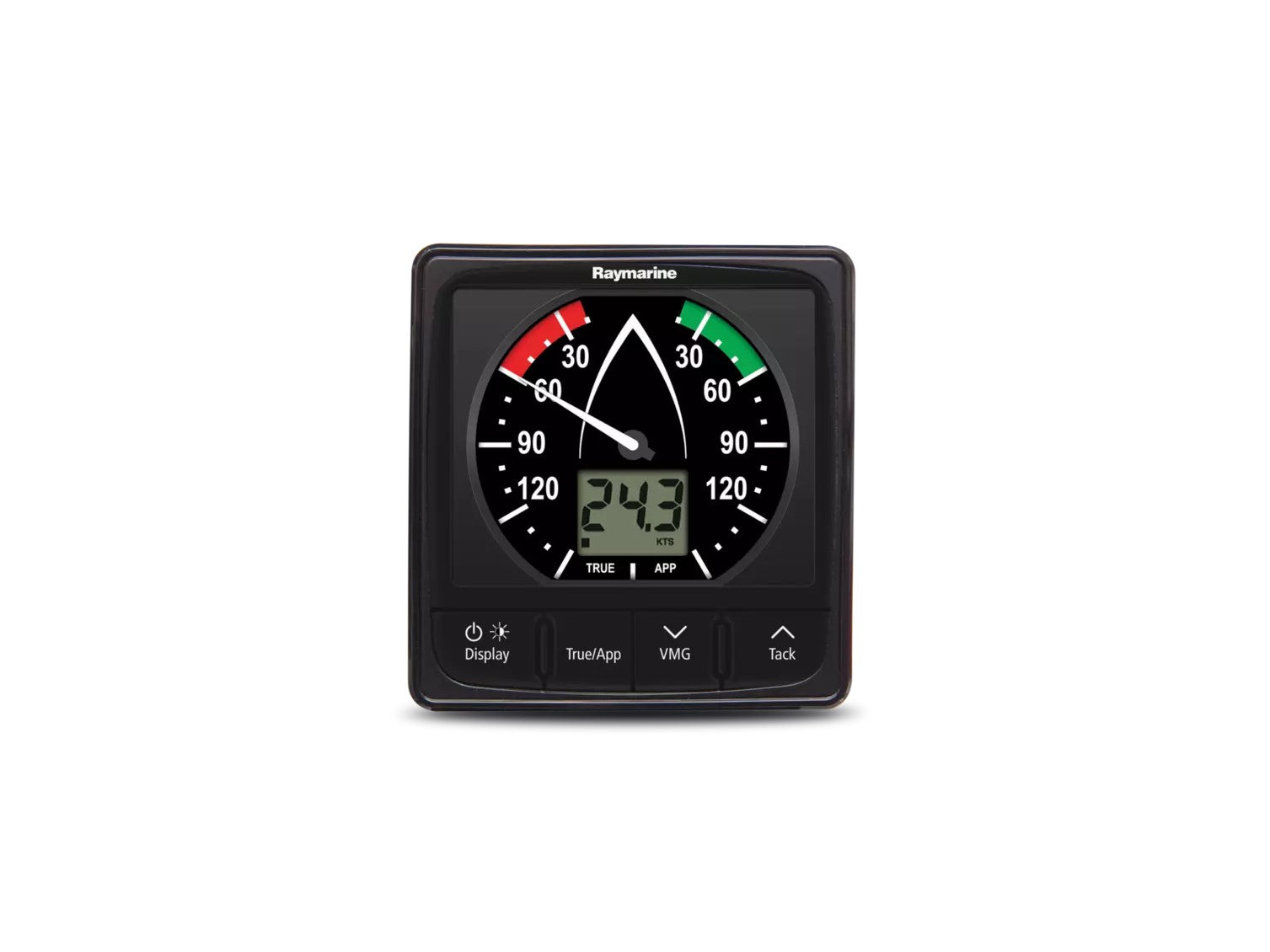

E70061 Raymarine i60 Wind Display (Analogue) - Part Number: E70061
The i60 Wind Display provides analogue and digital data and calculates apparent (relative) and true wind speed/angle.
Model: i60 Wind Display (Analogue)
Easy viewing, by day or night
The i60 Wind instrument display calculates both true and apparent wind speed and angle. Wind angle is presented on an easy-to-understand analog needle gauge, while wind speed is reported on its high-contrast LCD readout. The i60 Wind instrument provides critical information for sailing vessels and is also right at home onboard well-equipped cruising and fishing powerboats.
The i60 Wind instrument is engineered for easy viewing, by day or night. Its high-contrast LCD and red backlighting combine to deliver superior visibility under all conditions. i60 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. i60 series instruments are the perfect combination of powerful performance, easy operation and rugged reliability.
i60 Wind Key Features
- Analog needle display reports relative wind angle from 000° to 180°
- Colorized port and starboard segments call out close-hauled wind angles
- High contrast LCD for wind speed, Beaufort, max wind, VMG, and tack angle reporting
- Red backlighting enhances night visibility
- SeaTalkng, NMEA2000 and SeaTalk network compatible
- Built-in wind transducer interface for traditional or Rotavecta masthead units
- Compact footprint
- Low power consumption
- Surface mount or optional trunnion mount kit
Full Integration with Raymarine Equipment
All i60 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i60 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. i60 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Physical | |
|---|---|
| Dimensions | Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in) |
| Connections | 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-13 °F to 131 °F) |
| Conformance | |
| Standards | Europe 2004/108/EC |
| Power | |
| Current (typical / max) | 45-65 mA (display only) / 200 mA maximum (transducer connected) |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10 V dc to 16 V dc |
| Power consumption | < 1 W typical (display only), 2.4 W maximum (transducer connected) |
| LEN (NMEA 2000 Load Equivalency Number) | 4 |
📦 What's in the box
- i60 Instrument display
- Suncover (to match i70s, p70s, p70Rs, eS Series)
- Front bezel (to match i70s, p70s, p70Rs, eS Series)
- Gasket
- Suncover (to match a, c, e Series)
- Front bezel (to match a, c, e Series)
- 400mm (15.7 in) SeaTalkng spur cable
- SeaTalkng blanking plug
- Fixing screws x4
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
