🔧 Product Description

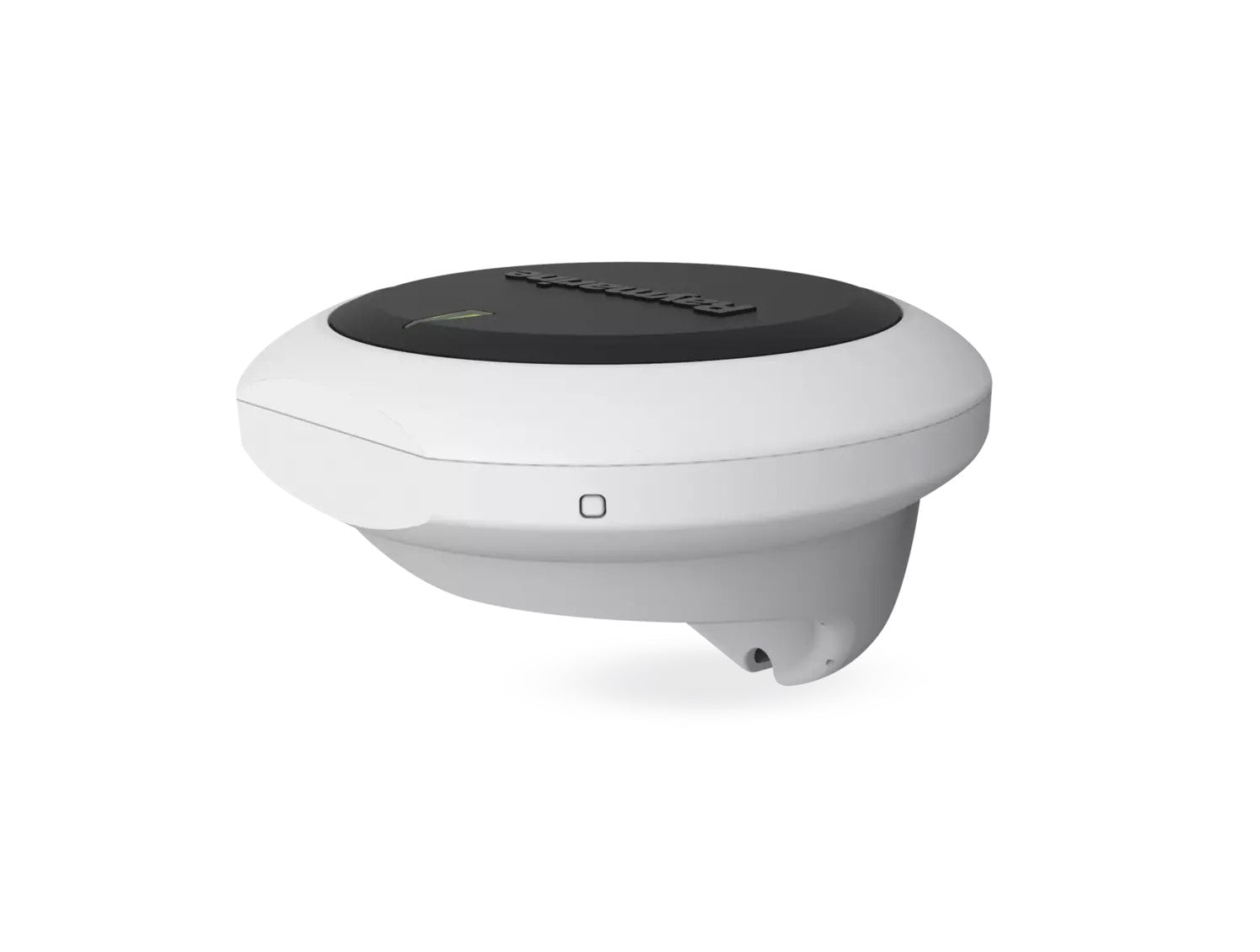

E70096 Raymarine EV-1 Sensor Core - Part Number: E70096
Evolution autopilot sensor core for traditional steering systems
Model: Evolution Autopilot EV-1 sensor core
Designed for Traditional Steering Systems
The EV-1 Sensor Core is at the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions. Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes. Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Environmental | |
|---|---|
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Physical | |
| Dimensions | Diameter: 140 mm (5.5 in), Depth (including mounting enclosure): 35 mm (1.4 in), Depth (including wall bracket): 95 mm (3.8 in) |
| Sensors | 3-axis digital accelerometer, 3-axis digital compass, 3-axis gyro digital angular rate sensor |
| Weight | 0.29 kg (0.64 lbs) |
| Power | |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| Power consumption | 30 mA |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- Mounting trim
- EV unit
- Sealing ring
- Mounting tray
- Sealing ring
- Wall mounting bracket
- Screws for deck or bracket mounting
- Screws for wall bracket
- Documentation
- SeaTalkng spur cable 1 m (33 ft)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
