E70098 Raymarine ACU-100 Actuator Control Unit - Part Number: E70098
ACU-100 Evolution autopilot actuator control unit
Model: ACU-100 Evolution autopilot actuator control unit

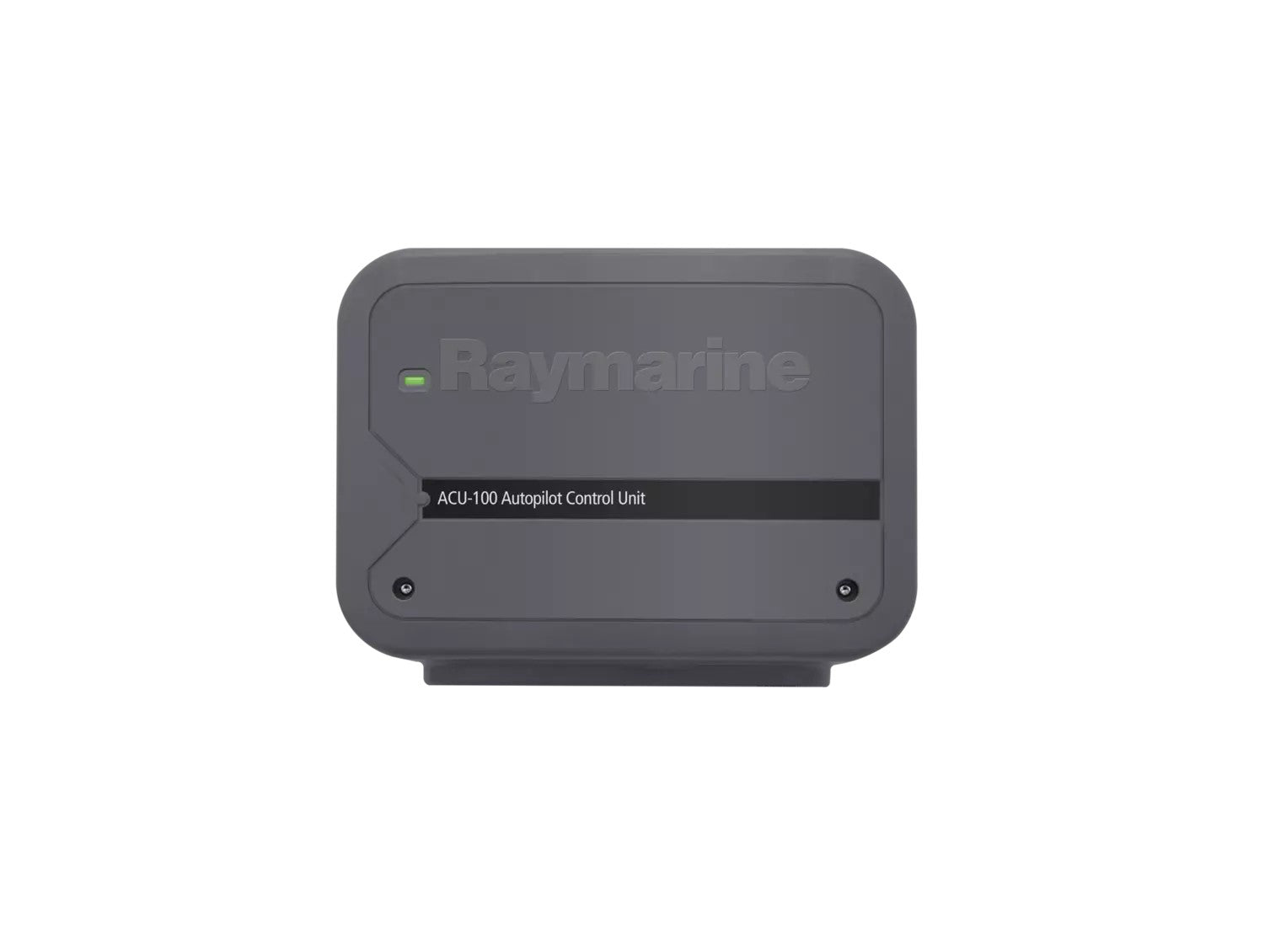

ACU-100 Overview
The ACU-100 (Actuator Control Unit) is a key component in Evolution autopilot systems. The ACU-100 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Combine the ACU-100 with an EV-1 heading sensor, an autopilot control head, and a compatible autopilot drive to create a complete Evolution autopilot system.
Autopilot Drive Units Compatible with the ACU-100
Type 0.5 Hydraulic Pump
Autopilot drive for boats with hydraulic steering 50 to 110cc (3.1 - 6.7 in3) and 12-volt power systems.
Cockpit Mk II Wheel Drive
Autopilot wheel-drive system for wheel-steered sailboats
Cockpit Tiller Drive
Electric drive unit for tiller-steered sailing boats up to 6,000 kg (13,000 lbs.) displacement.
Evolution Autopilot Packs with the ACU-100
EV-100 Power Pilot
Autopilot for small powerboats with hydraulic steering
EV-100 Tiller Pilot
Tiller drive autopilot for small sailboats
EV-100 Wheel Pilot
Wheel drive autopilot for small to medium sailboats
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Output | |
|---|---|
| Drive current output | Maximum continuous 7 A at supply voltage |
| Physical | |
| Dimensions | Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in) |
| Weight | 0.6 kg (1.32 lbs) |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | Connector panel: IPx2, Drive electronics: IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
| Power consumption (standby) | 300 mA (12 V) |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- ACU unit
- Documentation
- Screws (pan head type)
- SeaTalkng spur to bare wires cable 1 m (3.3 ft)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
