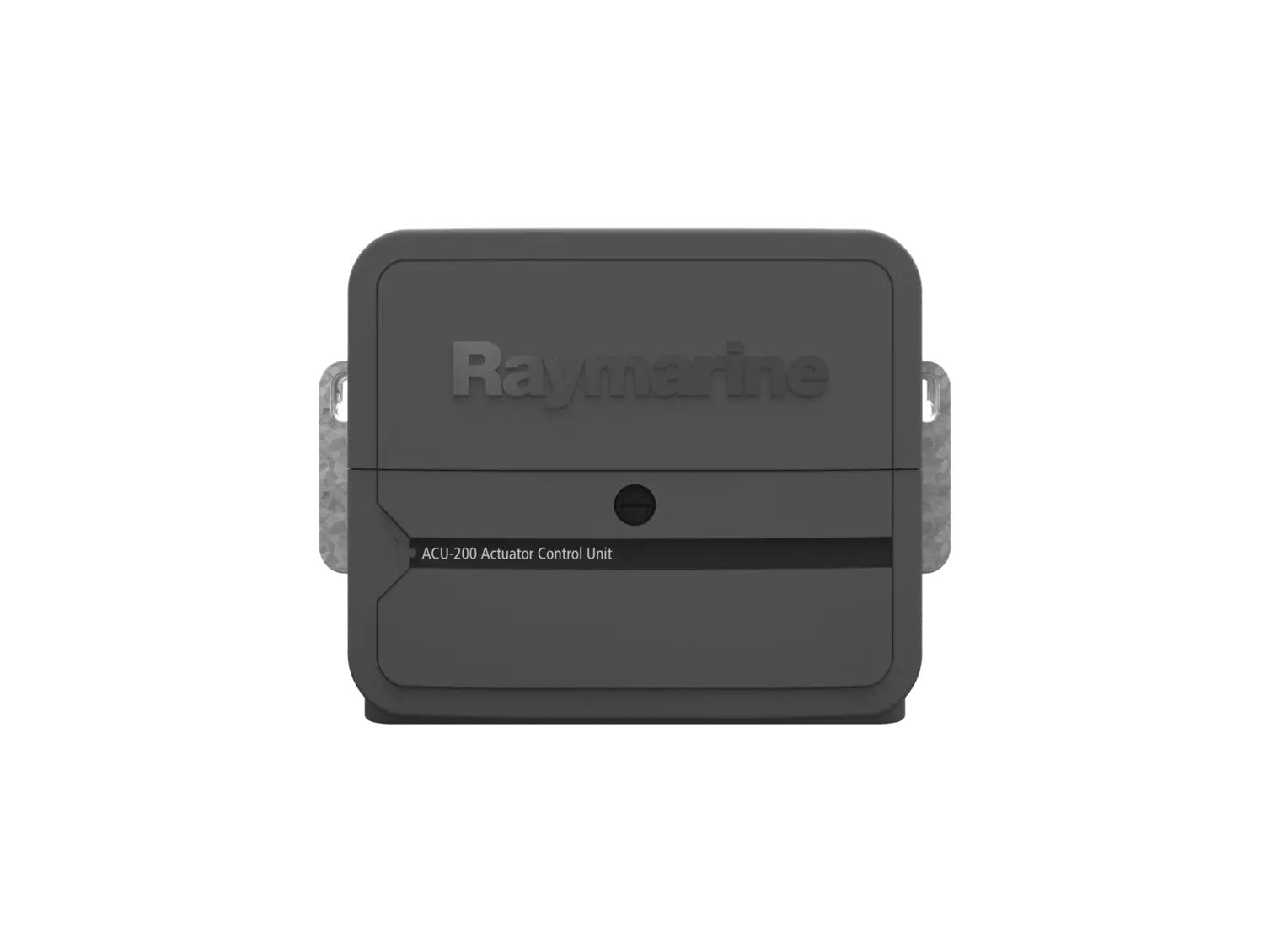

E70099 Raymarine ACU-200 Actuator Control Unit - Part Number: E70099
Evolution autopilot actuator control unit for Type 1 hydraulic, mechanical linear, and rotary drives
Model: ACU-200 Evolution autopilot actuator control unit
ACU-200 Overview
The ACU-200 (Actuator Control Unit) is a key component for Evolution autopilot systems. The ACU-200 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Combine with an EV-1 sensor, autopilot control head, and Type 1 hydraulic, mechanical linear, or mechanical rotary drive a complete autopilot system.
System Packs with the ACU-200 and Compatible Components
EV-200 Power Pilot
Autopilot for medium to large powerboats with hydraulic steering
EV-200 Sail Pilot
Autopilot for mid-sized sailboats with mechanical steering
Type 1 Hydraulic Pumps
Autopilot drive for boats with hydraulic steering 80-230cc (4.9 - 14.0in3)
Type 1 Rotary Drive
Electric rotary autopilot drive for vessels up to 11,000 kg (24,000 lbs.) displacement
Type 1 Linear Drive Unit
Mechanical linear autopilot drive for boats up to 11,000 kg (24,000 lbs) displacement
EV-1 Sensor Core
Evolution autopilot sensor core for traditional steering systems
p70s
Autopilot control head for Evolution autopilots with intuitive push-button operation designed for sailboat installations
p70Rs
Autopilot control head for Evolution autopilots. Push buttons and rotary control designed for powerboat installations
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Output | |
|---|---|
| Drive clutch output | Up to 2.0 A continuous, selectable between 12 / 24 V |
| Drive current output | Maximum continuous 15 A at supply voltage |
| Physical | |
| Dimensions | Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in) |
| Weight | 2.2 kg (4.84 lbs) |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | Drip resistant |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
| Power consumption (standby) - main power supply | 300 mA (12 / 24 V) |
| Power output to SeaTalkng bus | 3 A @ 12 V (fuse protected at 3 A) |
| Power consumption (standby) - SeaTalkng bus | 20 mA (12 V) |
| Nominal supply voltage | 12 / 24 V dc |
| Operating voltage range | 10.8 V dc to 31.2 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- ACU unit
- Rudder angle reference sensor / transducer (supplied with specific system packs only)
- Cable ties
- Mounting screws
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
