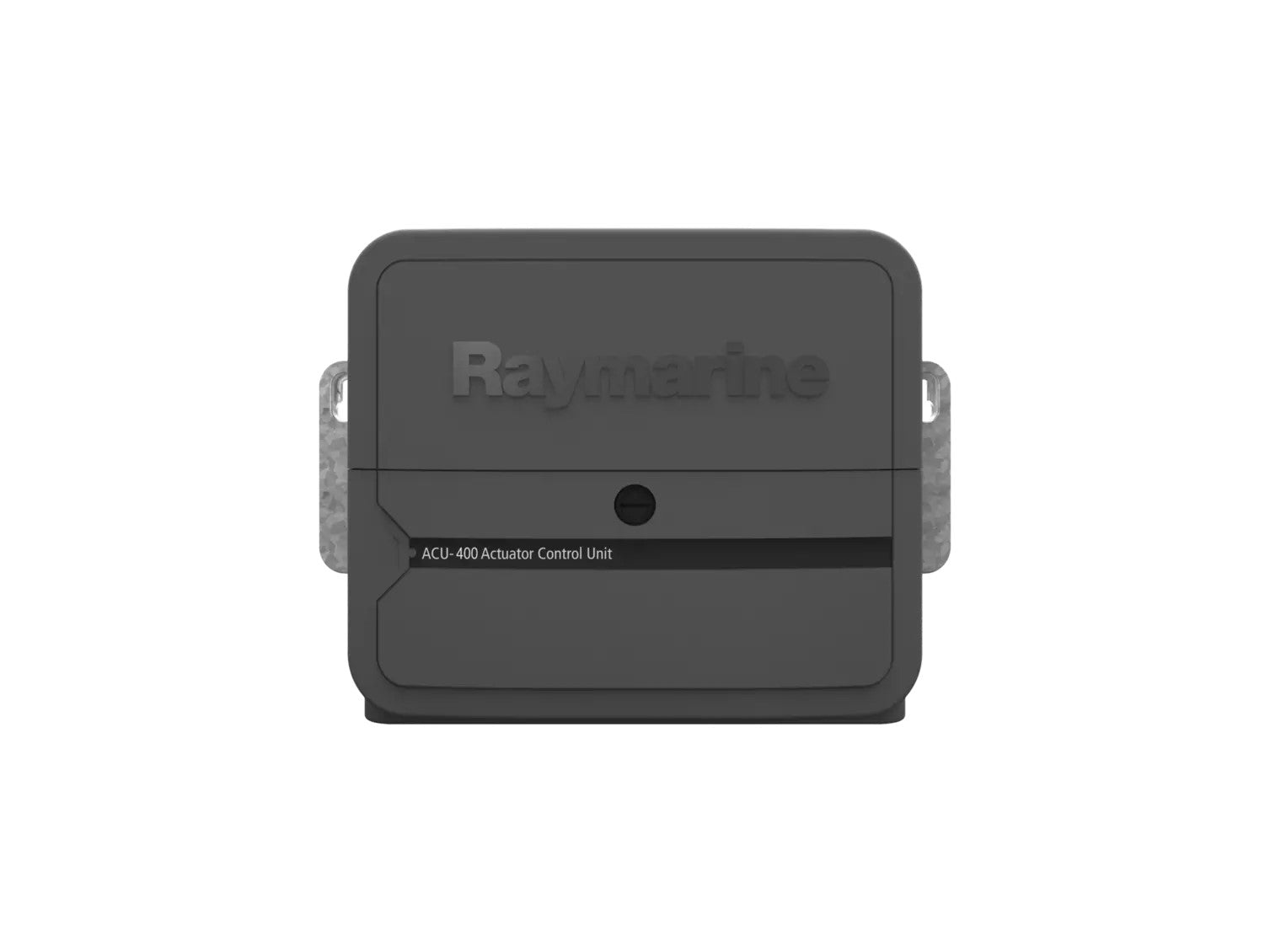

E70100 Raymarine ACU-400 Actuator Control Unit - Part Number: E70100
ACU-400 Evolution autopilot actuator control unit
Model: ACU-400 Evolution autopilot actuator control unit
ACU-400 Overview
The ACU-400 (Actuator Control Unit) is a key component for Evolution autopilot systems. The ACU-400 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Combine with an EV-1 sensor, autopilot control head, and Type 2 and Type 3 hydraulic, mechanical linear, hydraulic linear, or mechanical rotary drive a complete autopilot system.
Important product recall announcementImportant information about the Raymarine ACU-150 and ACU-400 autopilot system. Click here to find out more.
ACU-400 Compatible Control Heads and Heading Sensors
EV-1 Sensor Core
Evolution autopilot sensor core for traditional steering systems
p70s
Autopilot control head for Evolution autopilots with intuitive push-button operation designed for sailboat installations
p70Rs
Autopilot control head for Evolution autopilots. Push buttons and rotary control designed for powerboat installations
Drive Units Compatible with the ACU-400
Type 2 Rotary Drives
Electric rotary autopilot drives for vessels up to 20,000 kg (44,000 lbs.) displacement
Type 2 Hydraulic Linear Drives
Hydraulic linear drive system for vessels with mechanical steering up to 22,000 kg (48,000 lbs.) displacement.
Type 2 Hydraulic Pumps
Autopilot drive for boats with hydraulic steering 230 - 350cc (14 - 21in3)
Type 2 Linear Drive Units
Mechanical linear autopilot drives for mid to large sized boats
Type 3 Hydraulic Pumps
Autopilot drive for boats with hydraulic steering 350-500cc (21.0 - 30.5in3)
Type 3 Hydraulic Linear Drives
Hydraulic linear drive system for vessels with mechanical steering up to 35,000kg (77,000 lbs.) displacement.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Output | |
|---|---|
| Drive clutch output | Up to 4 A continuous at 12 V on 12 V systems Up to 4 A continuous at 24 V on 24 V systems Up to 4 A continuous at 12 V on 24 V systems |
| Drive current output | Maximum continuous 30 A at supply voltage |
| Physical | |
| Dimensions | Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in) |
| Weight | 2.2 kg (4.84 lbs) |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | Drip resistant |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Conformance | |
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
| Power consumption (standby) - main power supply | 300 mA (12 / 24 V) |
| Power output to SeaTalkng bus | 3 A @ 12 V (fuse protected at 3 A) |
| Power consumption (standby) - SeaTalkng bus | 20 mA (12 V) |
| Nominal supply voltage | 12 / 24 V dc |
| Operating voltage range | 10.8 V dc to 31.2 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
