🔧 Product Description

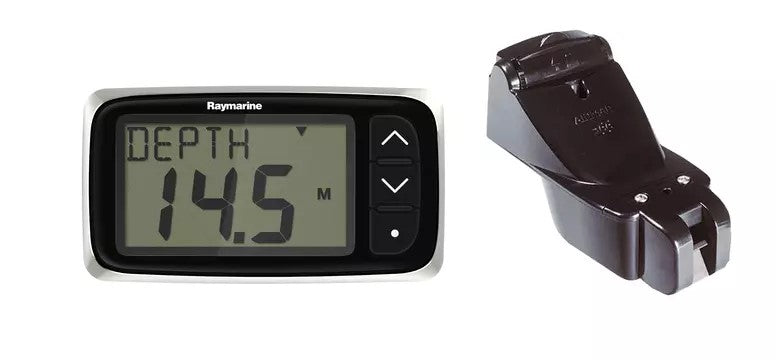

E70143 Raymarine i40 Depth Pack, with P7 Depth Through Hull Transducer - Part Number: E70143
The i40 compact depth instrument display provides a crystal clear depth readout, shallow and deep anchor alarms and a minimum depth display.
Model: i40 Depth Pack, with Transom Transducer
Clear & Quick Depth Visibility
The i40 Depth instrument display has been designed to make it as simple and speedy as possible to view the current water depth at a glance. With integrated alarms for both deep and shallow anchor, this compact display boasts excellent visibility and very low power draw. Ideal for use on RIBs, powerboats, and small yachts, the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen, even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.
i40 Depth Key Features
- The red backlight maximises visibility even in low lighting conditions
- Longer battery life thanks to low power consumption
- Larger controls to allow for easy usage when at sea
- Built-in connections for a speed transducer
- SeaTalk network interface for power and data connectivity
- Master or repeater. i40 can be the host for its own transducer or repeat data from another SeaTalk network device.
- Surface mount or optional trunnion mount kit
Full Integration with Raymarine Equipment
Designed with convenience in mind, the i40 instrument displays fully integrate with Raymarine navigation equipment and autopilots for a seamless experience at sea. i40 can be the host for its own transducer or repeat data from another SeaTalk network device. i40 also supports network dimming control so it is easy to adjust the lighting levels for all devices from a single location. i40 instruments can also communicate on the SeaTalkNG network using an optional SeaTalk to SeaTalkNG Converter Kit (E22158), sold separately.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Physical | |
|---|---|
| Connections | SeaTalk, Speed transducer, Depth Transducer |
| Dimensions | Length: 128 mm (5.04 in), Height: 72 mm (2.83 in), Depth: 35 mm (1.4 in) |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | 0°C to +70°C (32°F to 158°F) |
| Conformance | |
| Standards | Europe 2004/108/EC |
| Power | |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10 V dc to 16 V dc |
| Current (typical / max) | 35 mA / 100 mA |
📦 What's in the box
- i40 Instrument display
- i40 Sun cover
- Mounting gasket
- Clamping bracket
- Fixing stud and thumb nut
- SeaTalk power cable 1m (3ft)
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
