🔧 Product Description

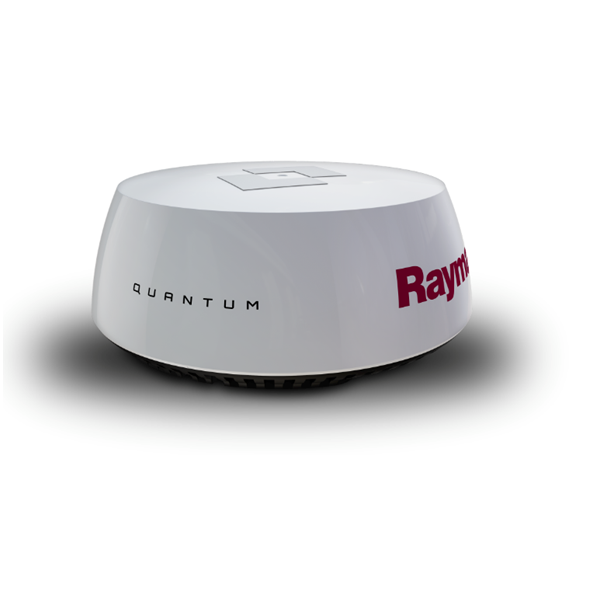

E70210 Raymarine Quantum Q24C 18" Radar with 10m Power Cable - Part Number: E70210
Quantum 18" solid-state radar dome with CHIRP Pulse Compression technology.
Model: Quantum Q24C 18" Radar with 10m Power Cable
Quantum Radar: Superior imaging for all vessels
Quantum radar technology brings you exceptional short-range detection and remarkable target detail with a minimal 18' (6m) range. The use of CHIRP Pulse compression technology means that more energy is delivered to targets, ensuring that you get superior imaging even at long distances.
Ideal for a variety of vessels, including sailboats, RIBs, and smaller powerboats, Quantum offers broad utility. Installation is a breeze, and for those upgrading, existing cables can be repurposed with a simple adapter, making Quantum a convenient and versatile choice.
Quantum Cables and Accessories
Scanstrut Quantum Radome Mast Mount
Scanstrut SC20 Quantum radome mast mount in white.
Quantum Radar Power Cable
10m and 15m Quantum radar power cables with bare wires.
Scanstrut Self Levelling Mast Mount for 18"/24" Radome Scanner
Self levelling mast mount for 18" / 24" radome scanner.
Quantum Data Cable with RayNet Connector
5m, 10m, 15m and 25m Quantum radar data cables with RayNet connectors.
Quantum/Cyclone Data Cable
5m, 10m, 15m and 25m Quantum/Cyclone radar data cables.
Quantum Power and Data Adapter
Y-cable for adapting Quantum radars to existing digital radome cabling.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| General Specifications | |
|---|---|
| Dimensions: Diameter | Height | 541.0 mm | 209.5 mm |
| Weight | 5.6 kg |
| Supply voltage | Either 12 V dc or 24 V dc nominal |
| Operating voltage range | Minimum: 10.8 V dc | Maximum: 31.2 V dc |
| Power Consumption | Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W |
| Waterproofing | IPX6 |
| Operating temperature range | -10°C to +55°C |
| Storage temperature range | -25°C to +70°C |
| Additional storage conditions | Store upright; do not block vents on underside |
| Humidity | Up to 95% at 35°C |
| Maximum wind speed | 100 kts |
| Range scales | 1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles |
| Transmitter | |
| Type | X-band solid-state transmitter with pulse compression technology |
| Transmit frequency | 9354 MHz to 9446 MHz |
| Peak power output | 20W |
| Duplexer | Circulator |
| Pulse widths (3 dB) | 40 ns to 14.7 us |
| Chirp lengths | 400 ns to 22 us |
| Pulse repetition frequency | 920 Hz to 5900 Hz |
| Chirp bandwidth | Up to 32 MHz |
| Standby mode | Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link - ON |
| Receiver | |
| IF frequency | 26 MHz |
| Noise figure | Less than 4 dB |
| Antenna | |
| Type | Patch array |
| Beamwidth (nominal) | Horizontal: 4.9° | Vertical: 20° |
| Polarisation | Horizontal |
| Rotation speed | 24 rpm nominal |
| Target Tracking | |
| Target tracking | Tracking of 10 simultaneous Radar targets |
| Transmitter | |
| Type | X-band solid-state transmitter with pulse compression technology |
| CHIRP bandwidth | Up to 32 MHz |
| Standby mode | Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON |
| Duplexer | Circulator |
| Transmit frequency | 9354 MHz to 9446 MHz |
| Pulse repitition frequency | 920 Hz to 5900 Hz |
| CHIRP lengths | 400 ns to 22 µs |
| Pulse widths (3 dB) | 40 ns to 14.7µs |
| Peak power output | 20 W |
| Environmental | |
| Humidity | Up to 95% at 35°C |
| Additional storage conditions | Store upright; do not block vents on underside |
| Waterproof rating | IPx6 |
📦 What's in the box
- Quantum Radome
- 10 m (32.8 ft.) Power cable
- M8 mounting bolts with spring washers and flat washers x4
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
