🔧 Product Description

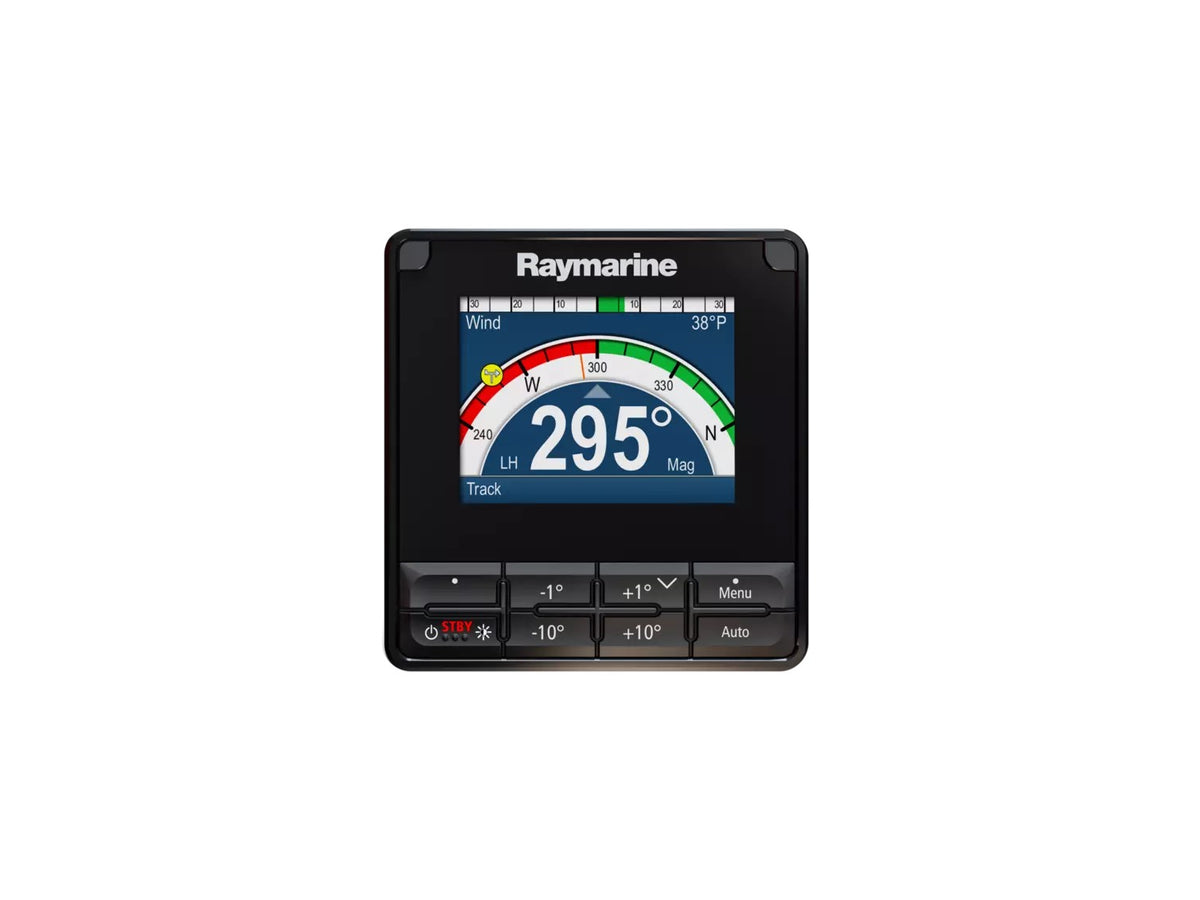

E70328 Raymarine p70s Autopilot Control Head (Sail) - Part Number: E70328
Autopilot control head for Evolution autopilots with intuitive push-button operation designed for sailboat installations
Model: Evolution autopilot control head for sailing boats
Perfect for sailboats
Key Features
- 3.5" super bright, oversized LCD
- Optical bonding for brighter colours, sharper contrast, and fog-free operation
- Dedicated one and ten-degree course change keys
- Wind vane steering mode with AutoTack control when combined with Raymarine wind instrument
- Glass bridge design compliments Axiom-series chartplotters
- SeaTalkng networking for seamless connection to Raymarine and NMEA2000 networks
- Supplied with both black (Axiom style) & gunmetal (eSeries style) bezels and protective suncover
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Environmental | |
|---|---|
| Waterproof rating | IPx6, IPx7 |
| Relative humidity | 93% Max. |
| Storage Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Operating Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Conformance | |
| Standards | Europe 2004/108/EC, Australia and New Zealand C-Tick, compliance level 2 |
| Power | |
| Operating voltage range | 9 V dc to 16 V dc (protected up to 32 V dc) |
| Current | 131 mA |
| Nominal supply voltage | 12 V dc |
| Power consumption | 1.57 W |
| LEN (NMEA 2000 Load Equivalency Number) | 3 |
| Screen | |
| Resolution | 320(H) x 240(V) pixels |
| Size | 3.45" TFT LCD display |
| Colour | 16-bit colour (64k colours) |
| Brightness | 1,200 cd/m2 |
| Physical | |
| Depth (including cable bend radius) | 151.65 mm (5.97) |
| Height | 115 mm (4.53 in) |
| Width | 110 mm (4.33 in) |
| Data connections | |
| Connections | 1 x SeaTalkng® connector |
📦 What's in the box
- Suncover
- Gunmetal bezel
- p70s or p70Rs (p70s shown) supplied with keypad and black bezel fitted
- Panel seal gasket
- Documentation
- Suppression ferrite
- Mounting fixings x 4 (M3x16 panhead pozi screws)
- 400 mm (15.7 in) SeaTalkng spur cable
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
