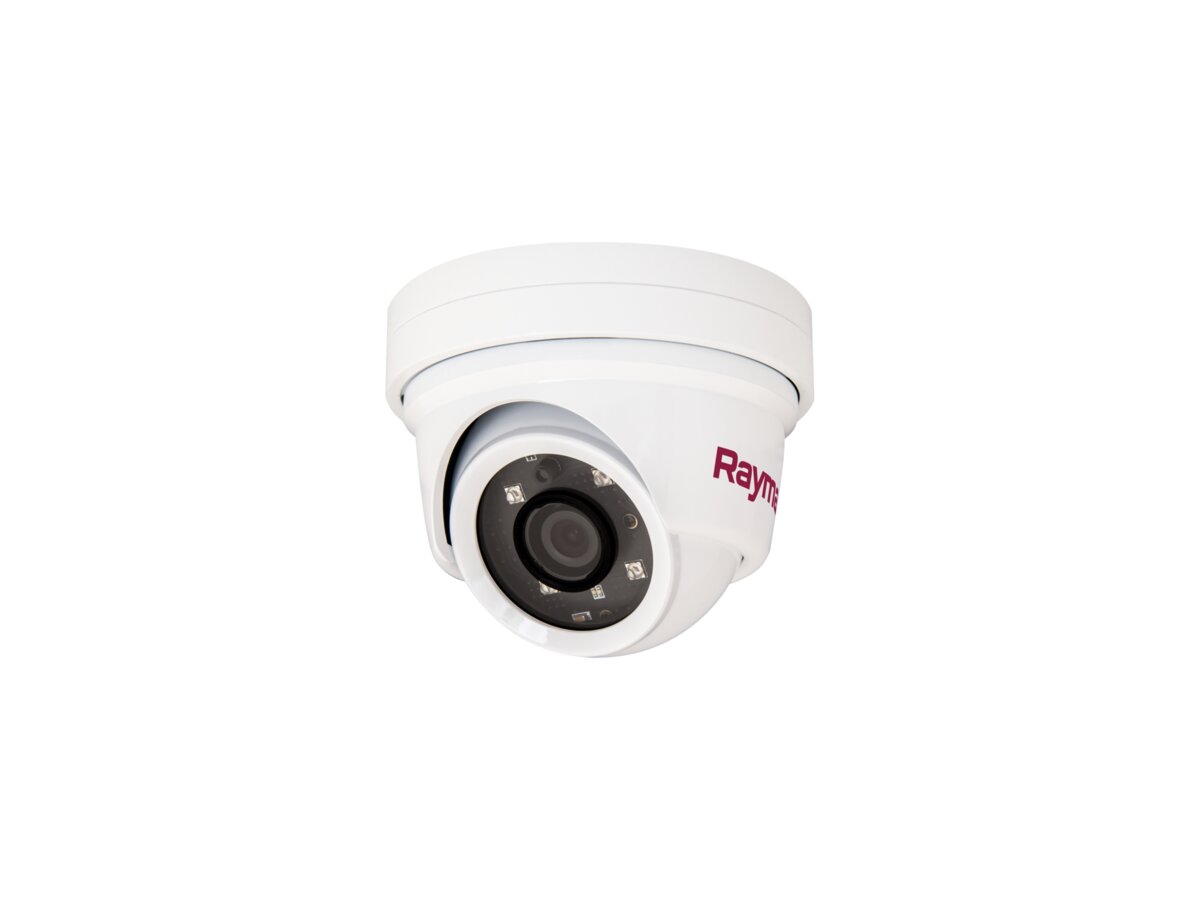

E70347 Raymarine CAM220 Eyeball CCTV Day and Night Video Camera (IP Connected) - Part Number: E70347
The CAM220IP is a ruggedized, full HD, day and night network eyeball video camera suitable for above or below deck applications.
Simplified Installation
The unobtrusive eyeball camera design and mounting frame allow for simple installation.
- Plug and play integration with Raymarine Axiom chartplotter displays
- Power over Ethernet (PoE) or direct 12v DC power supply
- Simple mechanical frame allows the camera to be locked, rock steady, into position
- High bright IR LEDs provide near infrared camera viewing in total darkness
Raymarine video cameras transform Axiom chartplotters into a powerful video observation systems. Connect multiple cameras to your Raymarine Axiom network and keep an eye on all the action. Switch from camera-to-camera with simple touchscreen controls. Axiom chartplotters support video viewing, recording, playback, and snapshot.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Physical | |
|---|---|
| Dimensions | Base diameter: 99.2 mm (3.9 in) Overall height: 80.7 mm (3.2 in) |
| Weight | Boxed: 0.65 kg (1.4 lbs) Unboxed: 0.55 kg (1.2 lbs) |
| Power | |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V to 13.2 V dc |
| Power consumption | 5.4 W Maximum (IR LEDs On) |
| Current | 1.5 A |
| Power over Ethernet | PoE Class 2 (6.49 W Max) device (802.3af) |
| Environmental | |
| Operating temperature | –10°C to 50°C (14°F to 122°F) |
| Storage temperature | –20°C to 60°C (–4°F to 140°F) |
| Relative humidity | 95% |
| Weatherproof rating | IPX6 & IPX7 |
| Camera | |
| Sensor / DSP | 2.0 Megapixel 1/2.8” Sony CMOS image sensor (Exmor) |
| Scanning system | Progressive scan |
| Day / Night | True Day / Night with ICR filter changer |
| Total pixels | 1952(H) x 1116(V) 2.18 Megapixel |
| Effect pixels | 1944(H) x 1104(V) 2.14 Megapixel |
| Minimum illumination | 0 Lux (IR LEDs On) |
| I2 Distance | 20 m (65.6 ft.) (4 LEDs) |
| Lens | 3.6 mm Megapixel board lens |
| Field of View | Horizontal = 51.0 deg +/- 3 deg Vertical = 93.0 deg +/- 3 deg |
| Video | |
| Compression | H.264 High Profile @ level 4.0, Motion JPEG |
| Resolutions | 1280 x 720 default (supporting up to 1920 x 1080 (FHD) |
| Video streaming | Supports multi streaming with H.264, MJPEG |
| Frame Rate | H.264: 30fps @ 1920 x 1080p MJPEG: 30fps @ VGA resolution |
| Bit Rate Control | Dual stream: H.264, MJPEG H.264: CBR / CVBR |
| Conformance | |
| Conformance | EN 60945:2002 EMC Directive 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 |
| Manual | |
| Download Manual | Download Raymarine CAM220IP manuals, declarations of conformity and mounting templates here. |
| Software | |
| Software Update | Download the latest software for your Raymarine CAM220IP camera |
📦 What's in the box
- CAM220IP camera (Includes a 1m (39.4 in) ethernet and power pigtail cable) x1
- Documentation and software pack x1
- Mounting screws x4
- Nylon washers x4
- Hex wrench (Allen key) x1
- Waterproof RJ45 coupler x1
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
