🔧 Product Description

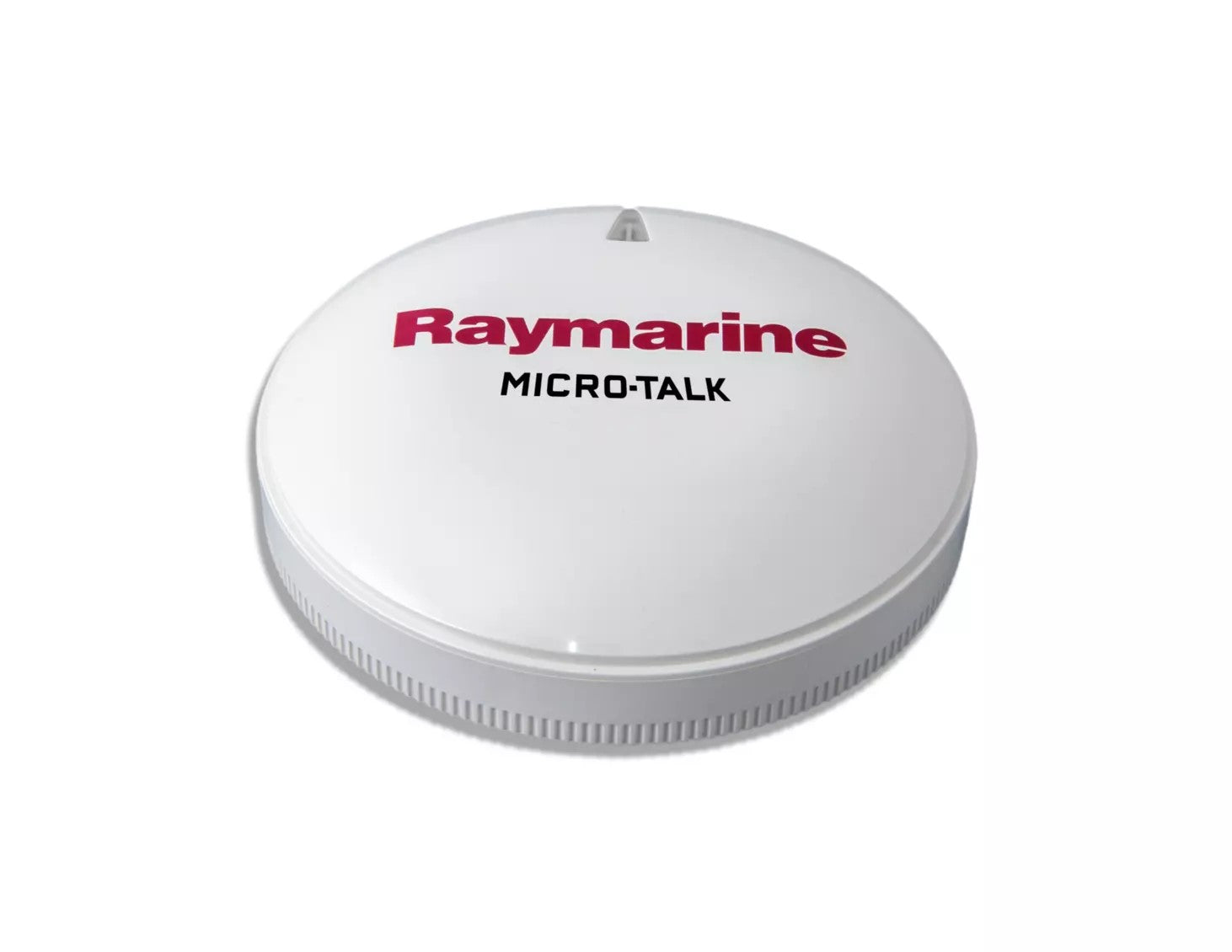

E70361 Raymarine Micro-Talk Performance Sailing Gateway - Part Number: E70361
Data bridge for Micronet Wireless and SeaTalk NG wired instrument systems
Model: MicroTalk Wireless Performance Sailing Gateway
Overview
The MicroTalk Wireless Performance Sailing Gateway seamlessly joins together wired and wireless instrument systems enabling sailors to achieve a new level of high performance wind monitoring!
The compact and waterproof Micro-Talk Gateway can be mounted anywhere onboard and plugs into the boat’s SeaTalkng network. Micro-Talk allows high speed transmission of data such as wind angle, wind speed, depth, boat speed, temperature, heading, GPS data, time, date and navigation information between Raymarine wireless Micronet compatible devices and wired Raymarine SeaTalkng compatible devices and autopilots.
- Compact, surface-mount design for on deck or below-decks installation.
- LED network status indicator
- Automatic, dual-band (968/916 MHz) support for all Raymarine wireless instrument regions.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Environmental | |
|---|---|
| Relative humidity | Up to 93% |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Operating temperature | -20°C to +55°C (-4°F to 131°F) |
| Physical | |
| Connections | SeaTalkng x 1, Micronet wireless |
| Dimensions | Height: 26.61 mm (1.05 in) Diameter: 108.48 mm (4.27 in) |
| Power | |
| Operating voltage range | 9 V dc to 16 V dc (protected up to 32 V dc) |
| Operating frequency | 869.8 MHz (UK, Europe and Africa), 915.9 MHz (USA, Canada, South America and Australia) |
| Current | 25 mA |
| Nominal supply voltage | 12 V dc (Supplied by SeaTalkng network) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- MicroTalk puck
- Mounting gasket
- Documentation
- SeaTalkng (White) cable 6 m (19.69 ft)
- Threaded studs (M4x40mm) x 3
- Finger nuts x 3
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
