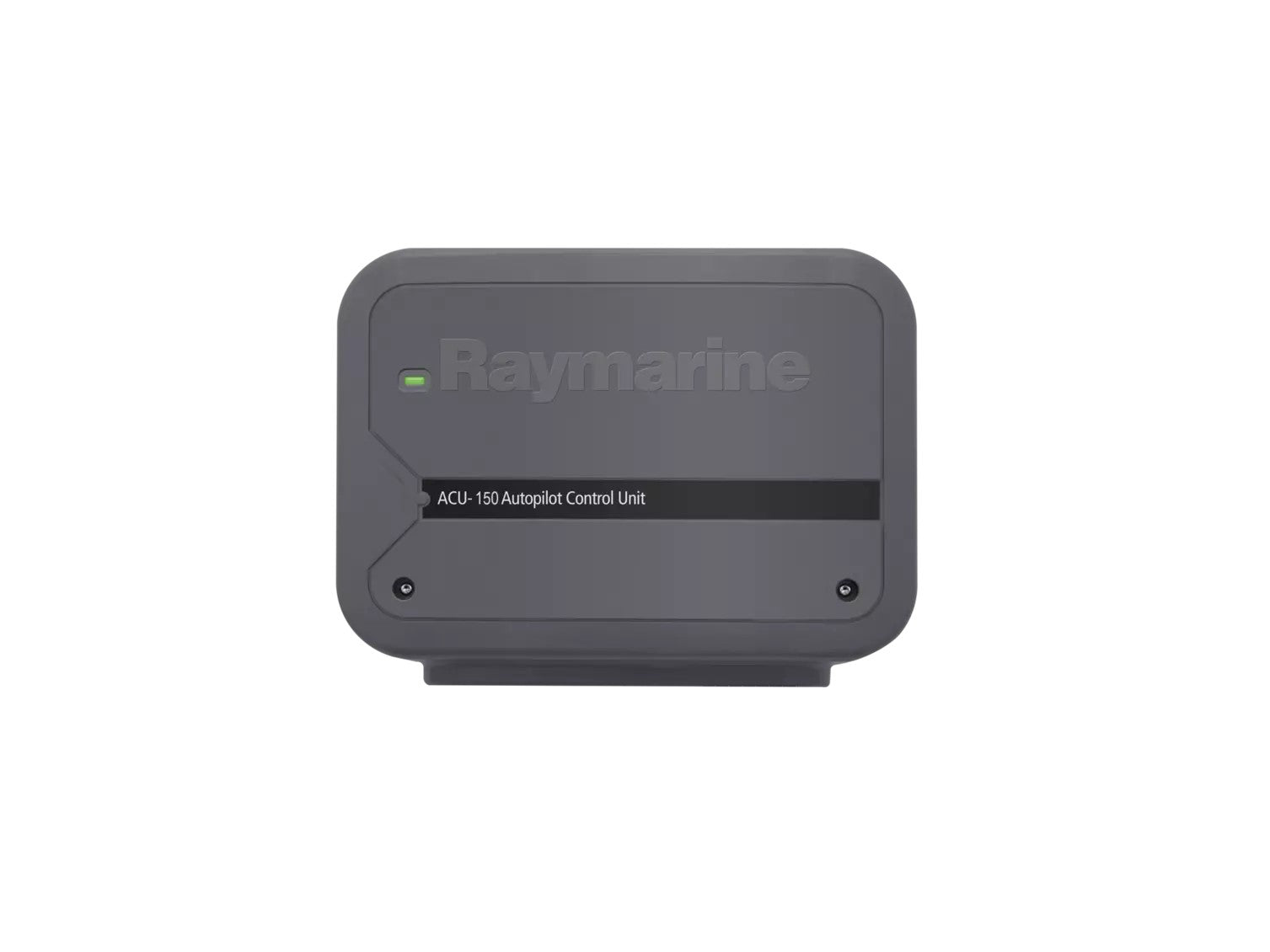

E70430 Raymarine ACU-150 Actuator Control Unit - Part Number: E70430

Evolution autopilot actuator control unit for hydraulic steering only

Model: ACU-150 Evolution autopilot actuator control unit

ACU-150 Overview

The ACU-150 (Actuator Control Unit) is a key component for Evolution autopilots used on vessels with hydraulic steering. The ACU-150 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Pair the ACU-150 with a Type 1 12-volt hydraulic drive unit.  The ACU-150 and Type 1 hydraulic pump combination is designed for hydraulic steering systems with a steering ram capacity between 4.9 cu. in.( 80cc) and 14.0 cu in (230cc). Combine with an EV-1 sensor, autopilot control head, and Type 1 hydraulic pump for a complete autopilot system.

Important product recall announcement

Important information about the Raymarine ACU-150 and ACU-400 autopilot system. Click here to find out more.

System Packs with the ACU-150 and Compatible Components

EV-150 Power Pilot

Autopilot for small to medium powerboats with hydraulic steering

Type 1 Hydraulic Pumps

Autopilot drive for boats with hydraulic steering 80-230cc (4.9 - 14.0in3)

EV-1 Sensor Core

Evolution autopilot sensor core for traditional steering systems

p70Rs

Autopilot control head for Evolution autopilots. Push buttons and rotary control designed for powerboat installations

Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.

📏 Specifications

Output
Drive current output Maximum continuous 12 A at supply voltage
Physical
Dimensions Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)
Weight 0.6 kg (1.32 lbs)
Environmental
Relative humidity Max. 93%
Waterproof rating Connector panel: IPx2, Drive electronics: IPx6
Storage temperature -30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature -20 °C to +55 °C (-4 °F to 131 °F)
Conformance
Standards Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
Power
Power consumption (standby) 300 mA (12 V)
Nominal supply voltage 12 V dc
Operating voltage range 10.8 V dc to 15.6 V dc
LEN (NMEA 2000 Load Equivalency Number) 1

📦 What's in the box

  • ACU unit
  • Documentation
  • Screws (pan head type)
  • SeaTalkng spur to bare wires cable 1 m (3.3 ft)

✅ Condition

  • Brand new genuine product
  • Supplied in original packaging
  • Full Australian manufacturer warranty
