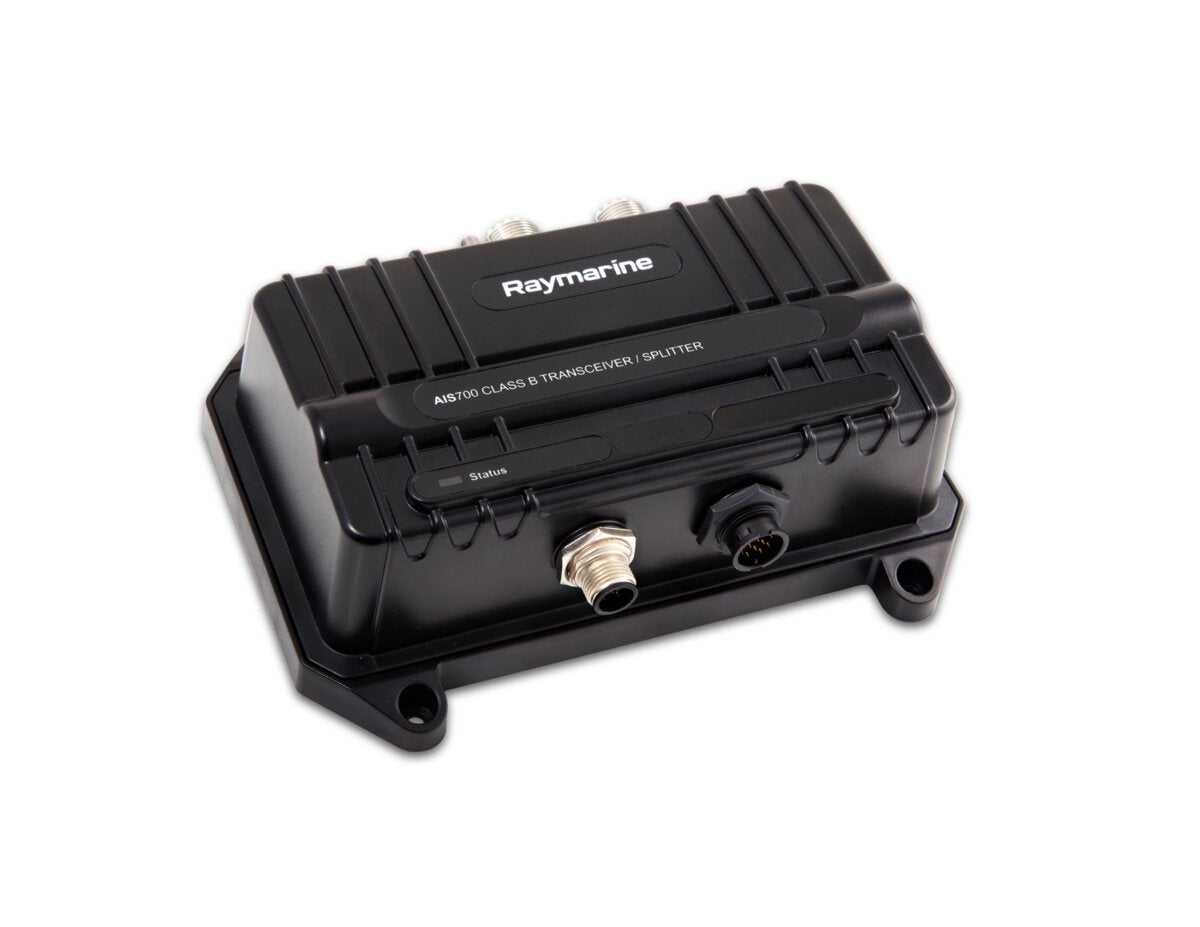

E70476 Raymarine AIS700 Class B Transceiver with integrated splitter - Part Number: E70476
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver with a built-in antenna splitter.
Model: AIS700 - CLASS B WITH SPLITTER
Enhanced Situational Awareness with AIS700
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with any multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.
AIS700 Key Features
- Full transmit and receive AIS for enhanced situational awareness and safety
- Latest SO-TDMA technology for longer range and faster performance
- Built-in antenna splitter simplifies installation with existing VHF radio antenna
- NMEA2000, NMEA0183, PC (setup & diagnostics) and SeaTalkng compatible
- Software or hardware switchable Silent Mode for enhanced security when needed.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Environmental | |
|---|---|
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature | -20°C to +75°C (-4°F to 167°F) |
| Operating temperature | -15°C to +55°C (5°F to 131°F) |
| AIS | |
| Operating frequency | Transmitting: 156.0MHz to 162.025 MHz, Receiving: 156.0MHz to 174.0 MHz |
| Class | B (transceiver) |
| AIS performance | 5 W SOTDMA |
| Channel spacing | 25 kHz |
| Receiver Qty | 2 |
| Transmitter Qty | 1 |
| Physical | |
| VHF antenna connection | SO-239 co-axial |
| VHF radio connector type | SO-239 co-axial |
| NMEA 0183 connection | Port 1 (MFD connection): HS (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate, Port 2 (Instrument connection: (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate |
| USB connection | Micro-B |
| Dimensions | Height: 132.55 mm (5.22 in), Width: 171.65 mm (4.81 in), Depth: 57 mm (2.24 in) |
| NMEA 2000 connection | DeviceNet connector |
| Silent mode switch connection | Bare-ended wires x 2 |
| GNSS antenna connector type | 50Ω TNC co-axial |
| GNSS (GPS) | |
| GNSS compatibility | GPS, GLONASS |
| Cold start acquisition | 26 seconds (nominal) |
| Channels | 72 |
| Power | |
| Operating voltage range | 9.6 V dc to 31.2 V dc |
| Power consumption | 3 W |
| Fuse rating | 3 A |
| Peak current @ 12 V dc | 2.5 A |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Peak current @ 24 V dc | 1.25 A |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
📦 What's in the box
- AIS transceiver
- GNSS antenna including fitted cable 10m (33 ft)
- Power/data cable 2m (6.56 ft)
- VHF Radio cable 1m (3.28 ft)
- DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
- GNSS antenna gasket
- GNSS antenna pole mount
- AIS transceiver fixings screws (No.8x19) x 4
- GNSS antenna pole mount screws x 3
- Documentation
- GNSS antenna surface mount fixings: Thumbs nuts x 3, Studs (M3x40) x 3
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
