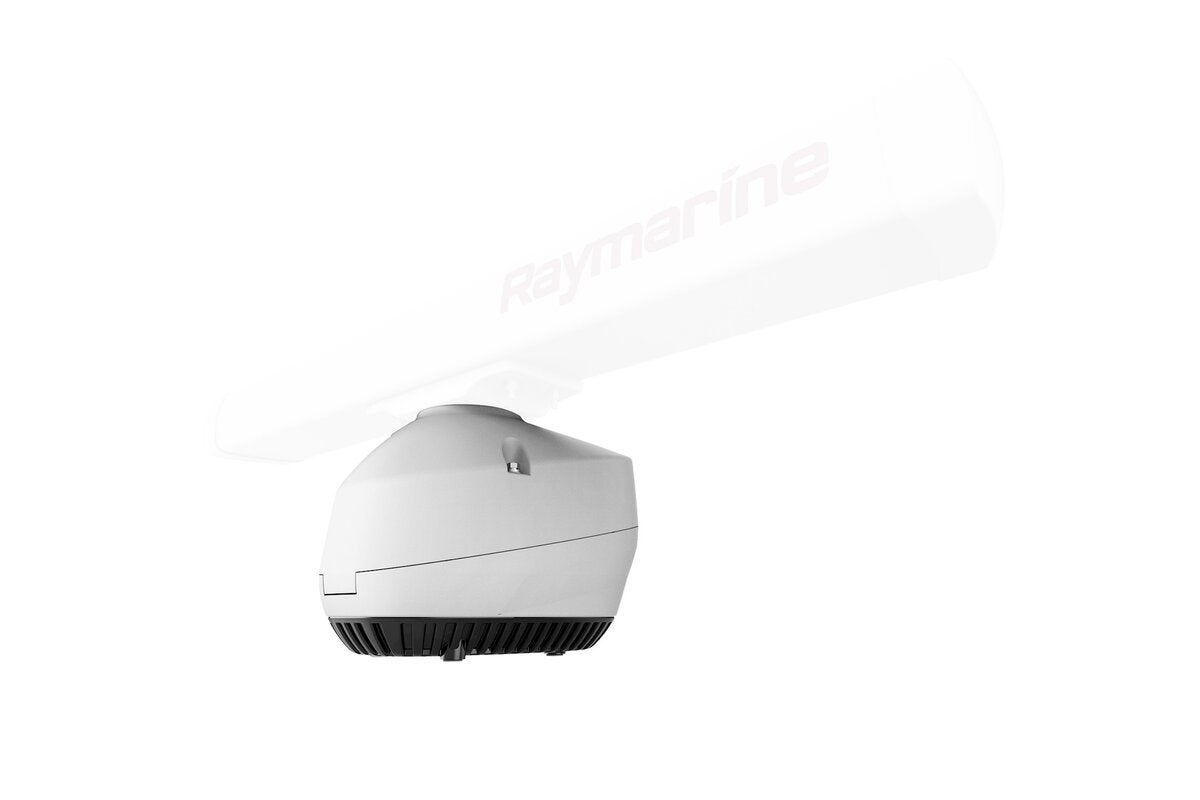

E70484 Raymarine Magnum 4kW Pedestal including VCM100 - Part Number: E70484
4 kW open array radar. Available with your choice of a 4 or 6-foot antenna array. Magnetron radar with up to 72 NM range. Trusted X-band magnetron radar performance in all conditions.
Model: 4kW Magnum Pedestal w VCM100
Extended Range Performance
Magnum 4 kW open array radar is a premium magnetron radar for boaters looking for extended range and improved target resolution when compared to radome radars. Available with either a 4-foot or 6-foot open array antenna, Magnum 4 kW delivers precision radar imaging across all ranges.
Choose the 4-foot model for a compact open array radar solution or step up to even better resolution and range performance with the 6-foot array option.
Trusted by the Pros
Don't take our words for it, here's what the Pros say about the Raymarine Magnum radar...
"To me, the Radar is THE most important electronic device aboard a boat. When I am working with the whale and dolphin programs, we seek pods of dolphins. Using Bird mode, the radar can find flocks of birds far beyond visual range. These flocks often have dolphins nearby! The Magnum radar sees everything around you. I don’t fear the open ocean. I am concerned with things that I am potentially going to hit!"
Captain & Principle, Valkyrie Yachts
"I run a 12kw open array. It is close to perfect. My Raymarine radar finds birds over fish better than any other radar on the market. This product is refined to its highest level."
Professional Charter Captain - Riptide Charters
Magnum Cables and Accessories
Digital Radar Cable with RJ45 Connector
5m, 10m, 15m and 25m digital radar cables with RJ45 connectors.
Digital Radar Cable with RayNet Connector
5m, 10m, 15m and 25m digital radar cables with RayNet connectors.
Digital Radar Extension Cable
2.5m, 5m and 10m digital radar extension cables.
VCM100 - Voltage Converter Module
Replacement VCM100 voltage converter module for HD and Magnum open array radars.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Power | |
|---|---|
| Power consumption | Typical: < 70 W |
| Power consumption | Standby: < 30 W |
| Power consumption | Sleep: < 1.2 W |
| Conformance | |
| Standards | USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3 |
| Environmental | |
| Relative humidity | Up to 95% @ 35°C (95°F) |
| Waterproof rating | IPx6 |
| Maximum wind speed | 85 knots |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Radar | |
| Maximum range scale | 72 nautical miles |
| Beamwidth (horizontal) | 4' Array: 1.85° (nominal) 6' Array: 1.15° (nominal) |
| Peak power output | 4 kW |
| Standby mode | Magnatron heater: ON, Magnetron control: ON, All other services: OFF |
| Polarization | Horizontal |
| Transmit frequency | 9405 MHz ±20 MHz |
| Warm-up time | 75 seconds |
| Beamwidth (vertical) | 25° (nominal) |
| Rotation speed | 24 RPM / 48 RPM |
| Standby to transmit | 2.5 seconds |
| Physical | |
| Dimensions | Height (including antenna): 430 mm (16.9 in), Length: 409 mm (16.1 in), Width: 314 mm (12.3 in) |
| Dimensions | 4 ' Array: 1306 mm (51.4 in) 6' Array: 1918 mm (75.7 in) |
| Weight | 29 kg (63.93 lbs) |
| Compatibility | |
| Axiom 2 XL - 16", 19", 22" and 24" models | Yes |
| Axiom 2 Pro - 9", 12" and 16" RVM and -S variants | Yes |
| Axiom+ - 7", 9" and 12" RV and chartplotter variants | Yes |
| Element - 7", 9" and 12" HV and -S variants | No |
| Axiom XL - 16", 19", 22" and 24" models | Yes |
| Axiom Pro - 9", 12" and 16" RVX and -S variants | Yes |
| Axiom - 7", 9" and 12" RV and chartplotter variants | Yes |
| gS-Series - gS95, gS125 and gS165 | Yes |
| eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165 | Yes |
| e-Series - e7, e7D, e95, e97, e125, e127, e165 | Yes |
| c-Series - c95, c97, c125, c127 | Yes |
| a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128 | Yes |
| E-Series Widescreen - E90W, E120W, E140W | Yes |
| C-Series Widescreen - C90W, C120W, C140W | Yes |
| G-Series Classic - GPM400 | Yes |
| E-Series Classic - E80, E120 | Yes |
| C-Series Classic - C70, C80, C120 | No1 |
| Notes | 1 - C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued. |
| Manual | |
| Download Manual | Download Magnum 4 kW radar manuals, declarations of conformity and mounting templates. |
📦 What's in the box
- Pedestal
- Documentation
- Denso paste
- Lifting sling
- Studs x 4
- Plain washers x 4
- Spring washers x 4
- Nuts x 8
- Cable tightening tool
- Radar-RayNet & power cable (15 m 49.21 ft))
- VCM100 mounting screws x 2
- VCM100 cable clamp mounting screws x 3
- VCM100 Voltage Converter Module
- VCM100 cable clamp
- Antenna (4 ft or 6 ft)
- Threaded alignment guides x 4
- Plain washer x 4
- Spring washers x 4
- Nuts x 4
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
