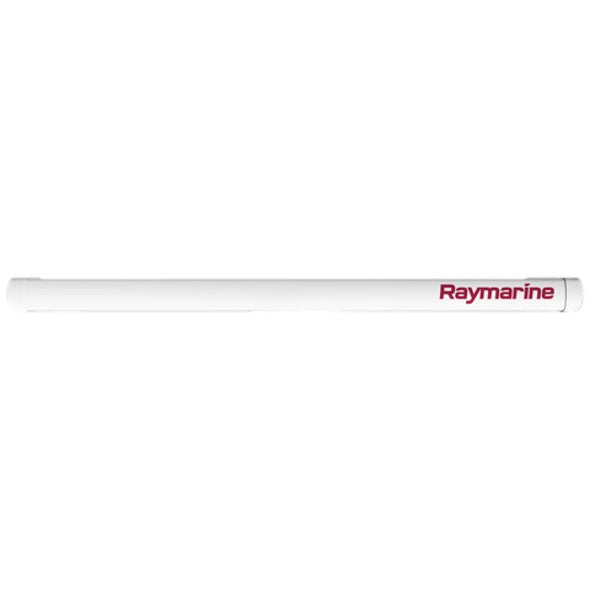

E70491 Raymarine Magnum 6ft Open Array - Part Number: E70491
12 kW open array radar. Available with your choice of a 4 or 6-foot antenna array. Powerful magnetron radar with up to 96 NM range. The choice of competitive anglers and professional captains.
Model: Magnum 6ft array only
Powerful Open Array Radar
Magnum 12 kW is Raymarine's most powerful Magnum open array radar. Available with either a 4-foot or 6-foot open array antenna, Magnum 12 kW is the choice of marine professionals and offshore enthusiasts.
Choose the 4-foot model for high performance, compact radar, or experience the benefits of extended range and improved target resolution with the 6-foot array option.
Magnum Cables and Accessories
Digital Radar Cable with RJ45 Connector
5m, 10m, 15m and 25m digital radar cables with RJ45 connectors.
Digital Radar Cable with RayNet Connector
5m, 10m, 15m and 25m digital radar cables with RayNet connectors.
Digital Radar Extension Cable
2.5m, 5m and 10m digital radar extension cables.
VCM100 - Voltage Converter Module
Replacement VCM100 voltage converter module for HD and Magnum open array radars.
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Power | |
|---|---|
| Power consumption | Typical: < 110 W |
| Power consumption | Standby: < 30 W |
| Power consumption | Sleep: < 1.2 W |
| Nominal supply voltage | Using VCM100: 12 V dc / 24 V dc |
| Operating voltage range | Using VCM100: 10.8 V dc to 31.2 V dc |
| Conformance | |
| Standards | USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3 |
| Environmental | |
| Relative humidity | Up to 95% @ 35°C (95°F) |
| Waterproof rating | IPx6 |
| Maximum wind speed | 85 knots |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Radar | |
| Maximum range scale | 72 nautical miles |
| Beamwidth (horizontal) | 4' Array: 1.85° (nominal) 6' Array: 1.15° (nominal) |
| Peak power output | 4 kW |
| Standby mode | Magnatron heater: ON, Magnetron control: ON, All other services: OFF |
| Polarisation | Horizontal |
| Transmit frequency | 9405 MHz ±20 MHz |
| Warm-up time | 75 seconds |
| Beamwidth (vertical) | 25° (nominal) |
| Rotation speed | 24 RPM / 48 RPM |
| Standby to transmit | 2.5 seconds |
| Physical | |
| Dimensions | Height (including antenna): 430 mm (16.9 in), Length: 409 mm (16.1 in), Width: 314 mm (12.3 in) |
| Dimensions | 4 ' Array: 1306 mm (51.4 in) 6' Array: 1918 mm (75.7 in) |
| Weight | 29 kg (63.93 lbs) |
| Compatibility | |
| Axiom 2 XL - 16", 19", 22" and 24" models | Yes |
| Axiom 2 Pro - 9", 12" and 16" RVM and -S variants | Yes |
| Axiom+ - 7", 9" and 12" RV and chartplotter variants | Yes |
| Element - 7", 9" and 12" HV and -S variants | No |
| Axiom XL - 16", 19", 22" and 24" models | Yes |
| Axiom Pro - 9", 12" and 16" RVX and -S variants | Yes |
| Axiom - 7", 9" and 12" RV and chartplotter variants | Yes |
| gS-Series - gS95, gS125 and gS165 | Yes |
| eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165 | Yes |
| e-Series - e7, e7D, e95, e97, e125, e127, e165 | Yes |
| c-Series - c95, c97, c125, c127 | Yes |
| a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128 | Yes |
| E-Series Widescreen - E90W, E120W, E140W | Yes |
| C-Series Widescreen - C90W, C120W, C140W | Yes |
| G-Series Classic - GPM400 | Yes |
| E-Series Classic - E80, E120 | Yes |
| C-Series Classic - C70, C80, C120 | No1 |
📦 What's in the box
- Pedestal
- Documentation
- Denso paste
- Lifting sling
- Studs x 4
- Plain washers x 4
- Spring washers x 4
- Nuts x 8
- Cable tightening tool
- Radar-RayNet & power cable (15 m 49.21 ft))
- VCM100 mounting screws x 2
- VCM100 cable clamp mounting screws x 3
- VCM100 Voltage Converter Module
- VCM100 cable clamp
- Antenna (4 ft or 6 ft)
- Threaded alignment guides x 4
- Plain washer x 4
- Spring washers x 4
- Nuts x 4
