E70492 Raymarine RAY90 VHF Black Box (inc wired handset, passive speaker and cable) - Part Number: E70492
Sleek, modular, black box VHF Radio Systems allowing for discreet mounting and dashboard space saving.
Model: Ray90 VHF
Modular Dual Station VHF Radio System

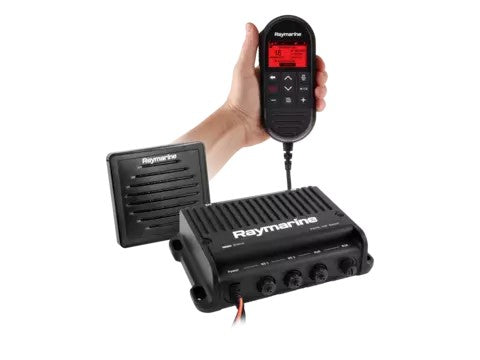

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.
In addition to being a full featured VHF radio system, the Ray91 also has a built-in Automatic Identification System (AIS) receiver. Ray91 can receive the navigation and safety broadcasts from nearby AIS-equipped vessels and share them with your compatible MFD, chartplotter, radar and instruments.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Power specification | |
|---|---|
| Nominal supply voltage | 12 V dc (with over voltage protection) |
| Operating voltage range | 10.2 V dc to 16 V dc |
| Fuse requirements | • Inline fuse = 10 A • Thermal breaker = 7 A |
| Current consumption | • Less than 6 A at high power (13.6 V) • Standby: 600 mA • Receive: 2 A • Loud hailer: 3 A (8 Ω) / 6 A (4 Ω) |
| LEN | 1 |
| Environmental specification | |
| Operating temperature | -25ºC (-13ºF) to +55ºC (131ºF) |
| Storage temperature | -25ºC (-13ºF) to +70ºC (158ºF) |
| Relative humidity | 95% |
| Water proofing | IPx6 & IPx7 |
| Connections | |
| Wired handsets | x 2 via HS1 and HS2 connectors |
| Wireless hub | x 1 via Hub connector |
| GNSS (GPS) antenna | x 1 via GPS connector (TNC) |
| VHF antenna / splitter | x 1 via VHF connector (50 Ohm SO239) |
| NMEA 0183 input | x 1 via bare ended wires on data cable |
| NMEA 0183 output | x 1 via bare ended wires on data cable |
| NMEA 2000 / SeaTalkng ® | x 1 via N2K (DeviceNet) connector |
| Loud hailer | x 1 via bare ended wires on data cable. |
| VHF Transmitter | |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency Range | 156.025 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Frequency stability | +/- 1.5 ppm |
| Channel Spacing | 25 kHz |
| Power Output | • Low power setting — 1 W • High power setting — 25 W |
| Spurious emissions | Better than –36 dBm at 25 W (Less than 0.25 μW) |
| Maximum deviation | +/- 5 KHz |
| Antenna impedance | 50 Ohms (typical) |
| Receiver | |
| Receiver type | Double conversion super heterodyne |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency range | 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Sensitivity | Better than 1 microvolt EMF @ 20dB SINAD |
| Squelch sensitivity | Less than -2 dBμ EMF |
| Hum and noise | Better than -40 dB |
| Audio distortion | Less than 10% |
| Receiver sensitivity | • Distance — 119dBm (0.25uV) @ 12dB SINAD (typical) • Local — 110dBm (0.7uV) @ 12dB SINAD (typical) |
| Adjacent channel selectivity | More than 70 dB |
| Spurious response rejection | More than 70 dB |
| Inter modulation rejection | More than 68 dB |
| GNSS (GPS) | |
| Channels | 72 |
| Cold start | 29 seconds |
| Receiver IC Sensitivity | • Tracking and navigation = -167 dBm • Reacquisition = -160 dBm • Cold start = -146 dBm • Hot start = -156 dBm |
| GNSS compatibility | • GPS • GLONASS • Beidou |
📦 What's in the box
- Ray90 / Ray91 VHF DSC Radio base station (including fitted power and data cable).
- Wired handset holster.
- Wired handset.
- Wired handset adaptor cable with RCA Audio 400 mm (1.3 ft)
- Passive speaker and bezel
- Passive speaker mounting gasket
- 4 x M4x25 screws (for wired speaker mounting)
- Documentation
- 4 x M4x25 screws (For base station mounting)
- 6 x M4x12 screws (For Handset holster and hook plate mounting)
- DeviceNet to SeaTalkng 1 m (3.28 ft) adaptor cable.
- Handset hook plate.
- Through panel cable mounting plate.
- Through panel cable mounting plate gasket
- Through panel cable mounting nut.
- Through panel cable mounting plate screws x 3
- Through panel cable mounting dust cap.
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
