🔧 Product Description

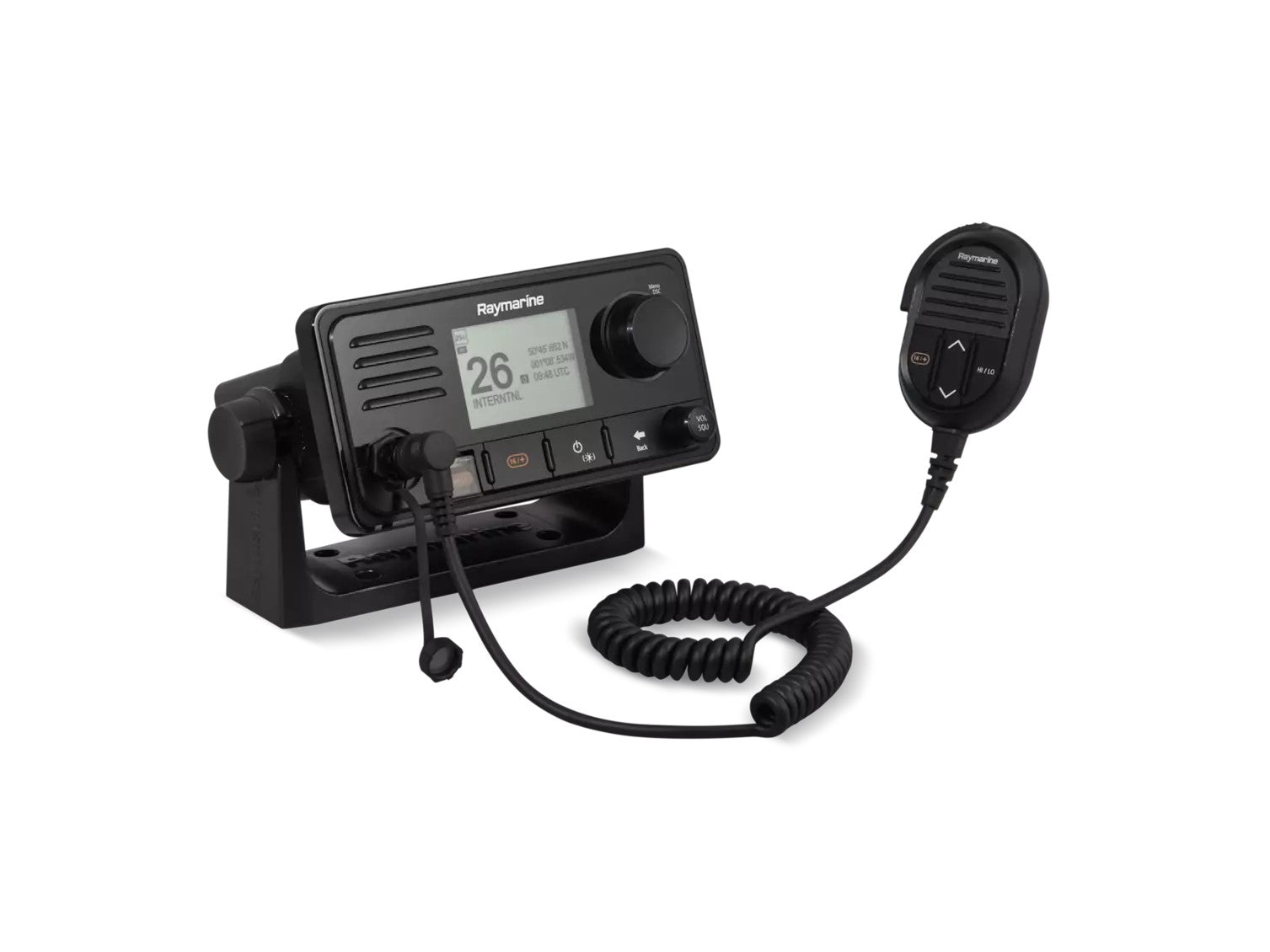

E70517 Raymarine Ray73 VHF with AIS Rx - Part Number: E70517
Premium VHF with a built-in AIS receiver and loudhailer. Remote station capable, with wired and wireless microphone options
Model: Full featured VHF DSC radio with GPS and AIS receiver
Dual Station VHF Radio with GPS, AIS & Loudhailer
Raymarine’s Ray73 VHF radio features an internal AIS receiver and loudhailer capabilities. Built on Raymarine's marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore. The Ray73 also supports optional wired or wireless RayMic controllers for true multi-station control and intercom capability. When connected to an optional hailing horn, the Ray73 can generate automatic fog signals and work as a public address announcement system.
Ray73 Key Features
- Marine VHF with Digital Selective Calling
- Internal AIS receiver provides target data for chartplotter, radar, and instruments
- Fog signalling and public address functions with optional hailing horn (M95435)
- Wired or wireless expansion with optional RayMic handset stations
- Internal GPS/GNSS receiver with a connection point for an optional external antenna
- NMEA2000 and NMEA0183 networking for integration with onboard systems
- Audio output connection for optional passive remote speaker (A80542)
- Surface and trunnion mount kits included
- Styled to compliment the Axiom family of chartplotter displays
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Environmental specification | |
|---|---|
| Operating temperature | -20ºC (-4ºF) to +60ºC (140ºF) |
| Storage temperature | -25ºC (-13ºF) to +70ºC (158ºF) |
| Relative humidity | 95% |
| Water proofing | IPx6 & IPx7 |
| Connections | • 1 x NMEA 0183 • 1 x SeaTalkng ® / NMEA 2000 • 1 x Front Fistmic connection • 1 x Rear connection for 2nd station • 1 x Audio (RCA) • 1 x Loud Hailer connection wires • 1 x GNSS (GPS) antenna (TNC) |
| Power specification | |
| Nominal supply voltage | 12 V dc (Reverse polarity and over voltage protection) |
| Operating voltage range | 9 V dc to 16 V dc |
| Current consumption | • Less than 6 A at high power (13.6 V) • Standby: 600 mA • Receive: 2 A • Loud hailer: 3 A (8 Ω) / 6 A (4 Ω) |
| Transmitter | |
| Channels | Channels All available US, International and Canadian VHF marine bands |
| Frequency Range | 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Frequency stability | +/- 1.5 ppm |
| Channel Spacing | 25 kHz |
| Power Output | • Low power setting — 1 W • High power setting — 25 W |
| Spurious emissions | Better than –36 dBm at 25 W (Less than 0.25 μW) |
| Maximum deviation | +/- 5 kHz |
| Antenna impedance | 50 Ohms (typical) |
| Receiver | |
| Receiver type | Double conversion super heterodyne |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency range | 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Sensitivity | Better than 1 microvolt EMF @ 20dB SINAD |
| Squelch sensitivity | Less than —2 dBμ EMF |
| Hum and noise | Better than –40 dB |
| Audio distortion | Less than 10% |
| Receiver sensitivity | • Distance — 119dBm (0.25uV) @ 12dB SINAD (typical) • Local — 110dBm (0.7uV) @ 12dB SINAD (typical) |
| Adjacent channel selectivity | More than 70 dB |
| Spurious response rejection | More than 70 dB |
| Inter modulation rejection | More than 68 dB |
| Speakers | |
| Base station speaker power output | 2.5 W (8 Ω) |
| Fistmic speaker power output | 1 W (16 Ω) |
| External speaker power output | 5 W (8 Ω) |
| Handset speaker power output | 1 W (16 Ω) |
| Hailer speaker power output | 25 W (4 Ω) / 12 W (8 Ω) |
| AIS | |
| Class type | AIS receiver only |
| GPS | |
| Channels | 72 |
| Cold start | < 2 minutes |
| Receiver IC Sensitivity | –167 dBm (Tracking) / –148 dBm (Acquisition) |
| GNSS compatibility | • GPS • GLONASS • * Beidou |
| SBAS compatibility | • WAAS • EGNOS • MSAS |
| Special features | Active Jamming and Interference Reduction |
| Operating frequency | • GPS L1 C/A • GLONASS L10F • Beidou B1 |
📦 What's in the box
- VHF Radio
- Suncover
- Panel mount gasket
- Fistmic
- Mounting bracket (Trunnion)
- Mounting bracket knobs
- Fistmic hook plate
- 4 x M4x25 screws (For Bracket (Trunnion) mounting)
- Documentation
- 4 x M4 nuts, spring washers and M4x25 machine screws (For Panel mounting)
- Protective antenna boot
- 2 x M4x12 screws (For Fistmic hook plate mounting)
- SeaTalkng blanking plug
- SeaTalkng 400 mm (15.7 in.) spur cable
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
