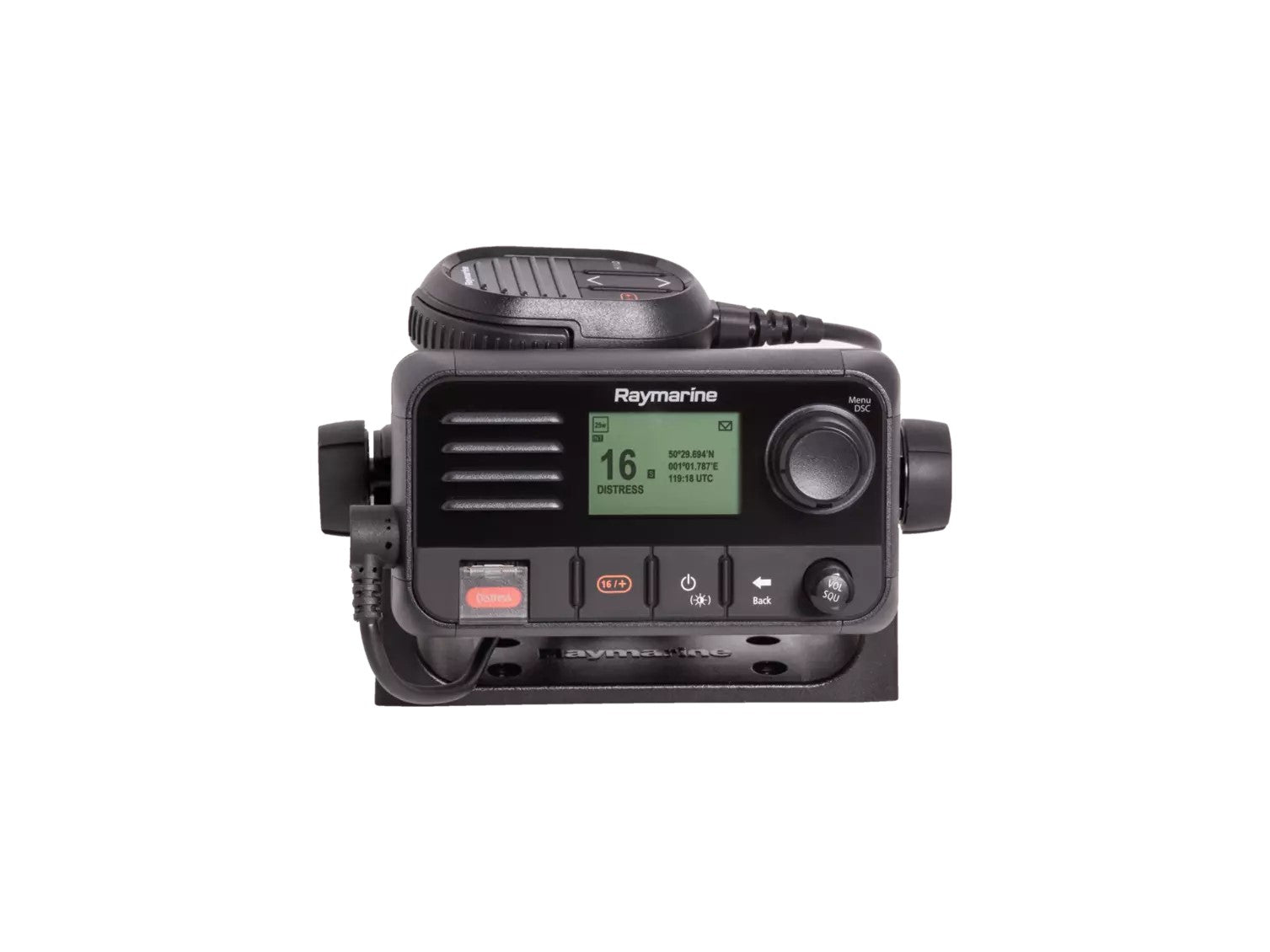

E70524 Raymarine Ray53 VHF Radio - Part Number: E70524
Small but mighty. The Compact Ray 53 Class D VHF incorporates DSC and an internal GPS receiver.
Model: Compact VHF DSC radio with GPS
Compact VHF Radio with GPS
Raymarine’s Ray53 radio is big on features and performance. Ray53 is a VHF marine radio with Class D Digital Selective Calling (DSC) and internal GPS receiver. Simply program your boat’s MMSI number into the Ray53 and immediately benefit from the enhanced calling and safety features of DSC.
Ray53 Key Features
- Compact marine VHF with Digital Selective Calling
- Built-in GPS/GNSS receiver with a connection point for an optional external antenna
- NMEA2000 and NMEA0183 networking for integration with onboard systems
- Audio output connection for optional passive remote speaker (A80542)
- Surface and trunnion mount kits included
- Styled to compliment the Axiom family of chartplotter displays
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Environmental specification | |
|---|---|
| Operating temperature | -20ºC (-4ºF) to +60ºC (140ºF) |
| Storage temperature | -25ºC (-13ºF) to +70ºC (158ºF) |
| Relative humidity | 95% |
| Water proofing | IPx6 & IPx7 |
| Connections | • 1 x NMEA 0183 • 1 x SeaTalkng ® / NMEA 2000 • 1 x Audio (RCA) • 1 x GNSS (GPS) antenna (TNC) |
| Power specification | |
| Nominal supply voltage | 12 V dc (Reverse polarity and over voltage protection) |
| Operating voltage range | 9 V dc to 16 V dc |
| Current consumption | • Less than 6 A at high power (13.6 V) • Standby: 600 mA • Receive: 2 A |
| Transmitter | |
| Channels | All available US, International and Canadian VHF marinebands |
| Frequency Range | 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Frequency stability | +/- 1.5 ppm |
| Channel Spacing | 25 kHz |
| Power Output | • Low power setting — 1 W • High power setting — 25 W |
| Spurious emissions | Better than –36 dBm at 25 W (Less than 0.25 μW) |
| Maximum deviation | +/- 5 kHz |
| Antenna impedance | 50 Ohms (typical) |
| Receiver | |
| Receiver type | Double conversion super heterodyne |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency range | 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Sensitivity | Better than 1 microvolt EMF @ 20dB SINAD |
| Squelch sensitivity | Less than —2 dBμ EMF |
| Hum and noise | Better than –40 dB |
| Audio distortion | Less than 10% |
| Receiver sensitivity | • Distance — 119dBm (0.25uV) @ 12dB SINAD (typical) • Local — 110dBm (0.7uV) @ 12dB SINAD (typical) |
| Adjacent channel selectivity | More than 70 dB |
| Spurious response rejection | More than 70 dB |
| Inter modulation rejection | More than 68 dB |
| Speakers | |
| Base station speaker power output | 2.5 W (8 Ω) |
| Fistmic speaker power | 1 W (16 Ω) |
| External speaker power | 5 W (8 Ω) |
| GNSS (GPS) | |
| Channels | 72 |
| Cold start | < 2 minutes |
| Receiver IC Sensitivity | –167 dBm (Tracking) / –148 dBm (Acquisition) |
| GNSS compatibility | • GPS • GLONASS • * Beidou |
| SBAS compatibility | • WAAS • EGNOS • MSAS |
| Special features | Active Jamming and Interference Reduction |
| Operating frequency | • GPS L1 C/A • GLONASS L10F • Beidou B1 |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Geodetic Datum | WGS-84 (alternatives available through Raymarine MFD) |
📦 What's in the box
- VHF Radio
- Suncover
- Panel mount gasket
- Mounting bracket (Trunnion)
- Mounting bracket knobs
- Fistmic hook plate
- 4 x M4x25 screws (For Bracket (Trunnion) mounting)
- Documentation
- 4 x M4 nuts, spring washers and M4x25 machine screws (For Panel mounting)
- Protective antenna boot
- 2 x M4x12 screws (For Fistmic hook plate mounting)
- SeaTalkng blanking plug
- SeaTalkng 400 mm (15.7 in.) spur cable
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
