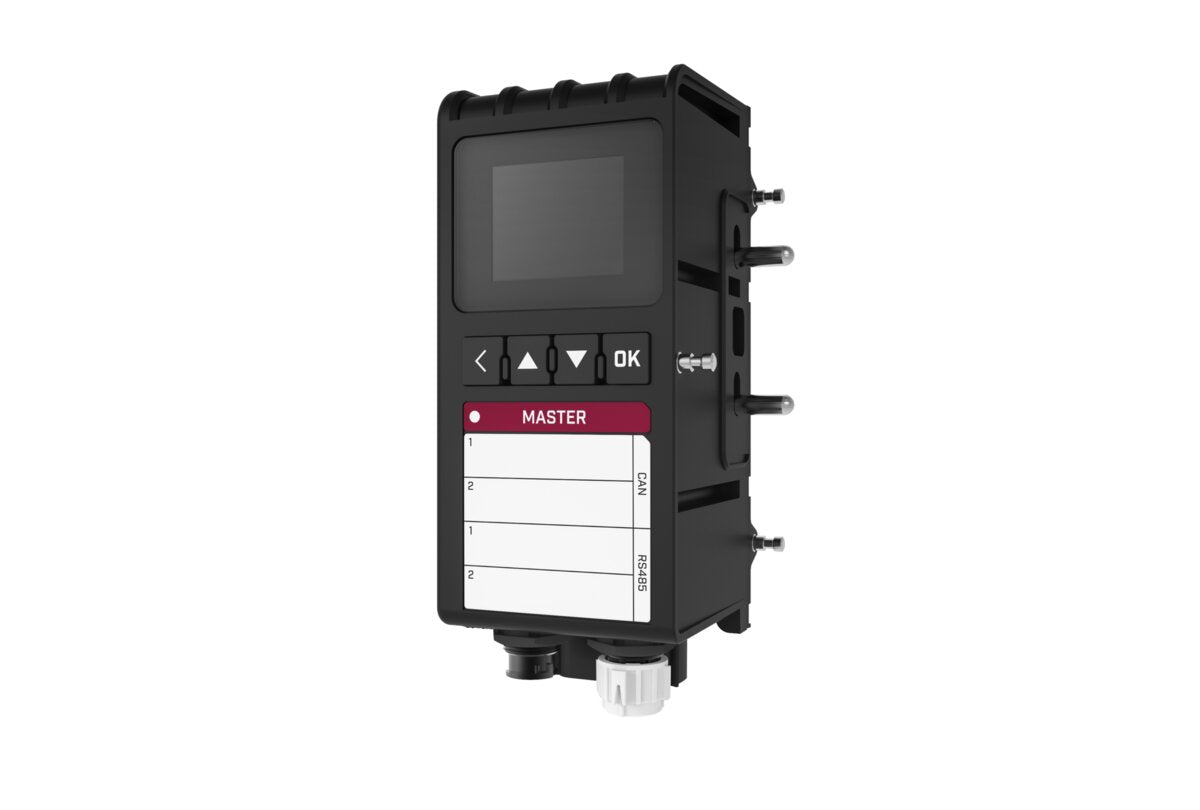

E70592 Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs | Genuine Raymarine Electronics

E70592 Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs | Genuine Raymarine Electronics

$1,899.00 AUD
$1,899.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

E70592 Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs - Part Number: E70592

The Master module is required for all installation scenarios and is supplied with a power supply module.

Model: Master Module

Key Features

The Master module is the Central Processor and the brains of the system. Every system starts with the Master Module and it is the main connection point to the Raymarine Axiom Chartplotter network.

The module provides Auxiliary Network communications for connecting with generators, air conditioners, and other smart devices.

Channel capabilities:

  • Raynet waterproof Ethernet
  • SeaTalkng and NMEA2000 devices
  • 4 Auxiliary network ports
    • 2 x CAN  (J1939)
    • 2 x R485

Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.

📏 Specifications

Power Specification
Nominal supply voltage 12 V dc / 24 V dc
Operating voltage range 8 V dc to 32 V dc
Module current draw 350 mA
Data Connections
Network (control) 1 x RayNet type SeaTalkhs™ connector 10/100/1,000 Mbits/s
SeaTalkng ® / NMEA 2000 1 x SeaTalkng ® connector
CANBUS / Serial • 2 x J1939 connections via 16–pin Molex MX150L connector • 2 x RS-485 connections via 16–pin Molex MX150L connector
Physical Data
Module Dimensions: H/W/D (not including busbars) 165 mm (6.50 in) x 81.00 mm (3.19 in) x 75.50 mm (2.97 in)
Weight 0.37 Kg (0.78 lb)
LCD
Size (diagonal) 1.8 in
Type TFT LCD (LED backlight)
Color depth RGB
Resolution 128 x 160
Ratio 5:4
Illumination 225
Viewing Angle L: 65° / R: 65° / T: 40° / B 65°

📦 What's in the box

  • Master / Remote module (Supplied fitted with SeaTalkng blanking plug and Molex connector)
  • Mounting bracket and rear shim (Supplied for mounting assemblies with 4 or more input / output modules)
  • Power supply module
  • Documentation

✅ Condition

  • Brand new genuine product
  • Supplied in original packaging
  • Full Australian manufacturer warranty
