• E70593 Raymarine YachtSense Remote Unit (12v or 24v) with up to 8 x Signal Inputs or 8 x Signal (50mA) Outputs
1 1

E70593 Raymarine YachtSense Remote Unit (12v or 24v) with up to 8 x Signal Inputs or 8 x Signal (50mA) Outputs | Genuine Raymarine Electronics

E70593 Raymarine YachtSense Remote Unit (12v or 24v) with up to 8 x Signal Inputs or 8 x Signal (50mA) Outputs | Genuine Raymarine Electronics

$1,759.00 AUD
$1,759.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

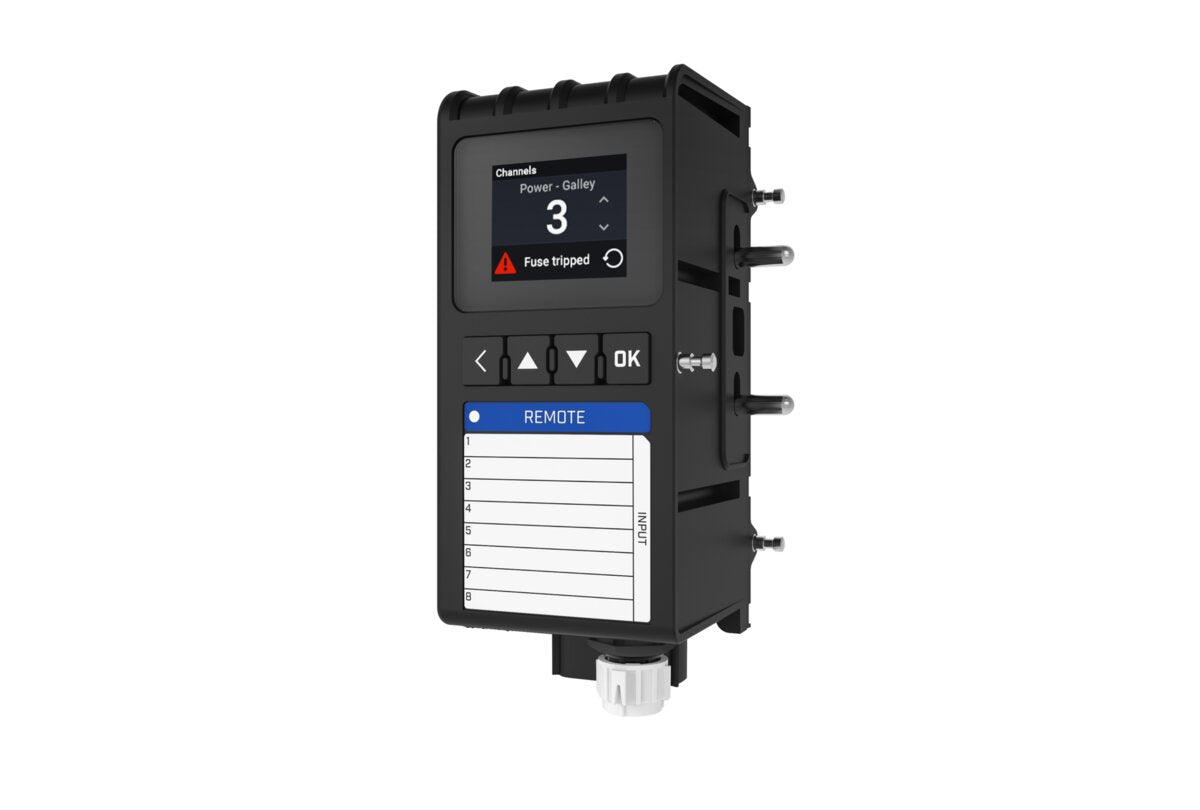

E70593 Raymarine YachtSense Remote Unit (12v or 24v) with up to 8 x Signal Inputs or 8 x Signal (50mA) Outputs - Part Number: E70593

The Remote modules are connected to a Master module via a connection to a SeaTalkng® backbone

Model: Remote Module

Key Features

The Remote Module allows expansion of YachtSense and includes 8 channel signal connections. The Remote Module can be used to control and or monitor digital and analog signals such as switches, relays, actuators, resistive sensors, pressure sensors, secondary batteries etc.

Network capabilities:

  • SeaTalkng connection for interconnecting with a required Master Module

Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.

📏 Specifications

Power Specification
Nominal supply voltage 12 V dc / 24 V dc
Operating voltage range 8 V dc to 32 V dc
Module current draw 250 mA
Maximum output current 2 A (250 mA per channel)
Data Connections
SeaTalkng ® / NMEA 2000 1 x SeaTalkng ® connector
Input / output connections 8 x 250 mA output channels via 20–pin Molex MX150L connector
Physical Data
Module Dimensions: H/W/D (not including busbars) 165 mm (6.50 in) x 81.00 mm (3.19 in) x 75.50 mm (2.97 in)
Weight 0.35 Kg (0.77 lb)
LCD technical specification
Size (diagonal) 1.8 in
Type TFT LCD (LED backlight)
Color Depth RGB
Resolution 128 x 160
Ratio 5:4
Illumination 225
Viewing Angle L: 65° / R: 65° / T: 40° / B 65°

📦 What's in the box

  • Master / Remote module (Supplied fitted with SeaTalkng blanking plug and Molex connector)
  • Mounting bracket and rear shim (Supplied for mounting assemblies with 4 or more input / output modules)
  • Power supply module
  • Documentation

✅ Condition

  • Brand new genuine product
  • Supplied in original packaging
  • Full Australian manufacturer warranty
