🔧 Product Description

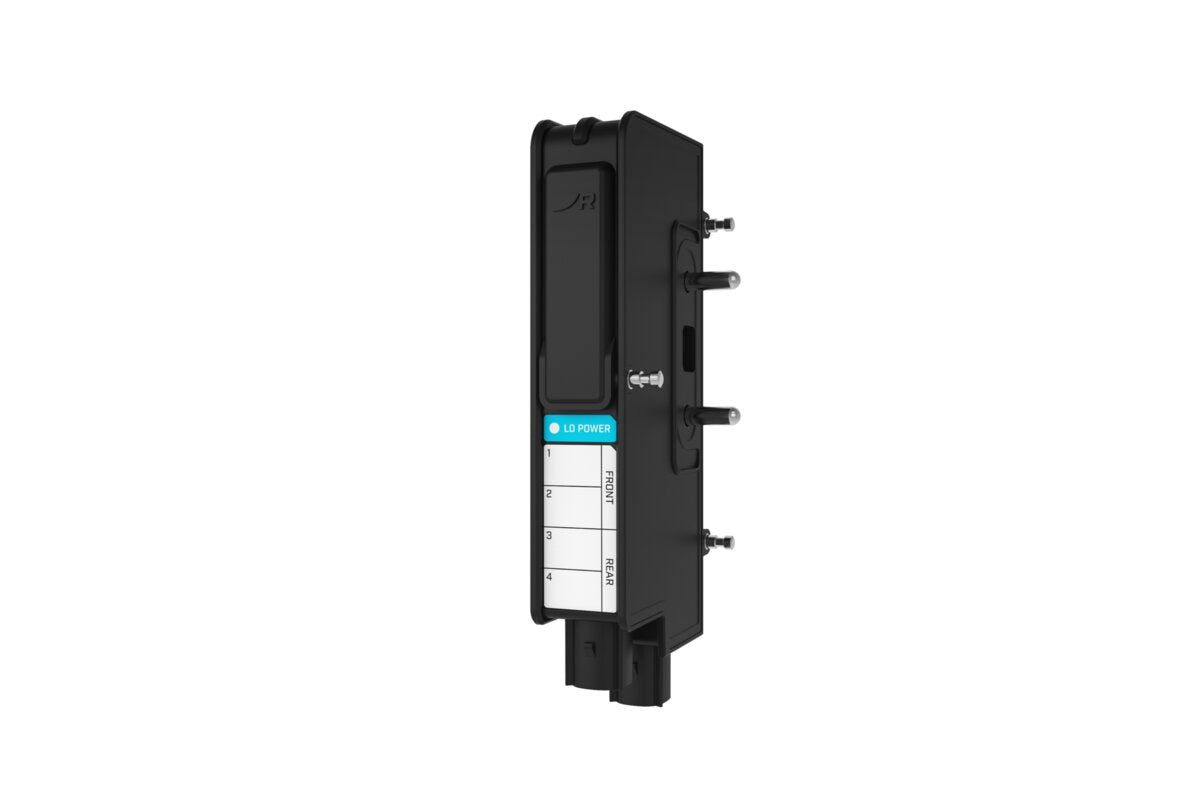

E70594 Raymarine YachtSense Low Power Output Module with 4 x 10 Amp Outputs - Part Number: E70594

The Low power module provides 4 x 10 A output channels.

Model: Low Power Module

Key Features

The Low power module is a digital  output module and can be used to drive lower powered electrical loads such as lights, wipers motors and other electronic devices. The Low Power module supports up to 4 devices.

Channel capabilities:

  • Up to 10 A draw per channel
  • Load current measurement
  • Over current protection
  • Under current detection
  • Soft fuse
  • Voltage detection

Output options:

  • Controls 4 circuits up for 10 amps each
  • Fully dimmable for all types of lights
  • Soft start and stop capable
  • 3 layers of redundancy on all circuits

Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.

📏 Specifications

Power Specification
Nominal supply voltage 12 V dc / 24 V dc
Operating voltage range 8 V dc to 32 V dc
Maximum output current 40 A (10 A per channel)
Minimum output current 50 mA
Data Connections
Lo power connections 4 x 10 A output channels
Module communications Internal 6–pin connection
Physical Data
Module Dimensions: H/W/D (not including busbars) 172 mm (6.77 in) x 28.00 mm (1.10 in) x 76.50 mm (3.01 in)
Weight 0.27 Kg (0.60 lb)

📦 What's in the box

  • Input or output modules (All modules are Supplied fitted with Molex connector(s) Output modules are supplied with fuses fitted).
  • Documentation

✅ Condition

  • Brand new genuine product
  • Supplied in original packaging
  • Full Australian manufacturer warranty
