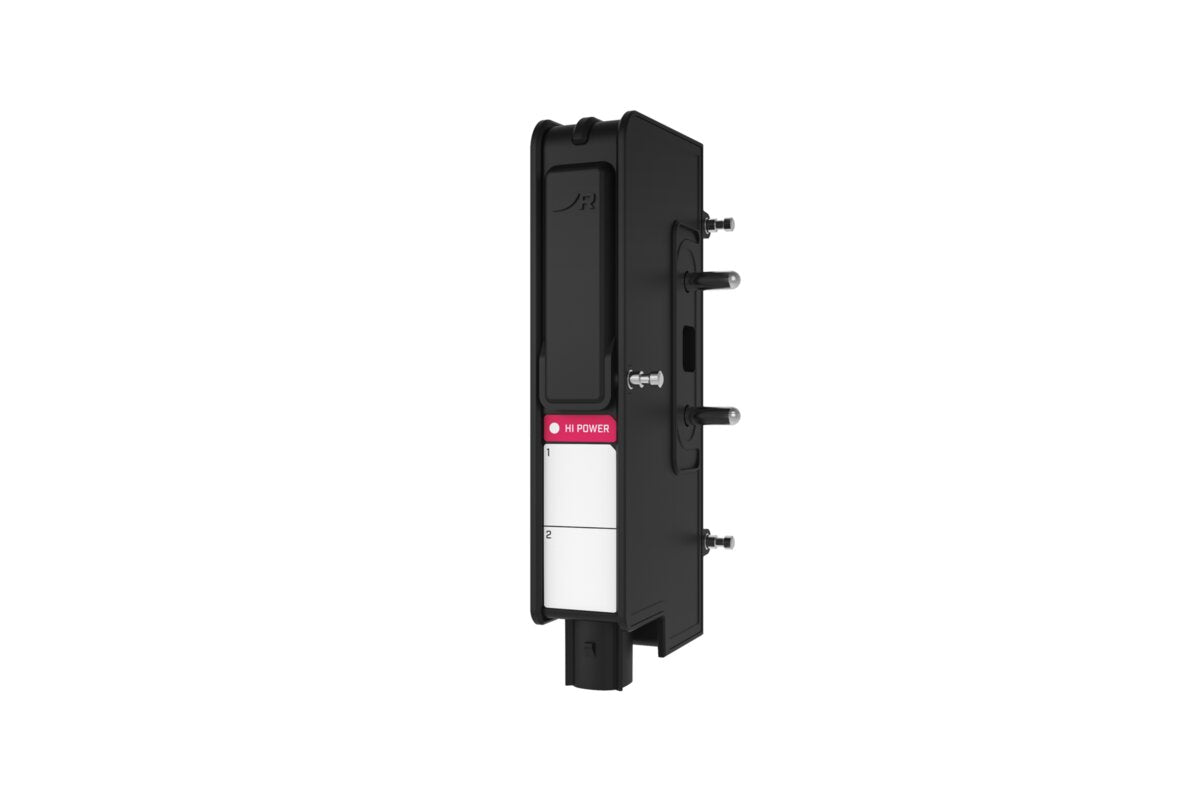

E70595 Raymarine YachtSense High Power Output Module with 2 x 20 Amp Outputs - Part Number: E70595
The high power module provides 2 x 20 A output channels.
Model: High Power Module
Key Features
The High power module is a digital output module and can be used to drive high powered electrical loads such as pumps, fans, heaters, refrigerators and Hi-Fi equipment etc. The high power module supports up to 2 devices.
Channel capabilities include:
- Up to 20 A draw per channel
- Load current measurement
- Over current protection
- Under current detection
- Soft fuse
- Voltage detection
- Voltage protection up to 32 V DC
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Power Specification | |
|---|---|
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Maximum output current | 40 A (20 A per channel) |
| Minimum output current | 50 mA per channel |
| Data Connections | |
| Hi power connections | 2 x 20 A output channels |
| Module communications | Internal 6–pin connection |
| Physical Data | |
| Module Dimensions: H/W/D (not including busbars) | 160 mm (6.30 in) x 28.00 mm (1.10 in) x 76.50 mm (3.01 in) |
| Weight | 0.26 Kg (0.57 lb) |
📦 What's in the box
- Input or output modules (All modules are Supplied fitted with Molex connector(s) Output modules are supplied with fuses fitted).
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
