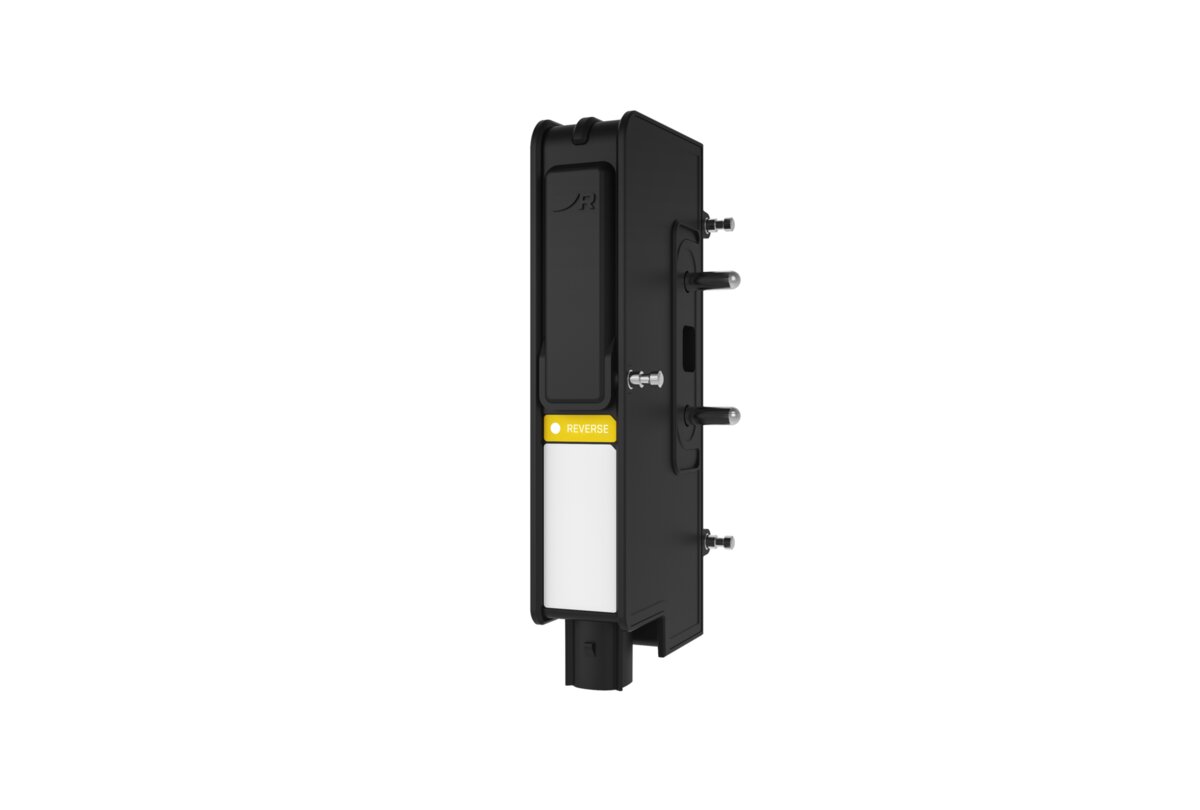

• E70596 Raymarine YachtSense Reverse Power Output Module with 1 x Bi-Directional 20 Amp Output
1 1

E70596 Raymarine YachtSense Reverse Power Output Module with 1 x Bi-Directional 20 Amp Output | Genuine Raymarine Electronics

E70596 Raymarine YachtSense Reverse Power Output Module with 1 x Bi-Directional 20 Amp Output | Genuine Raymarine Electronics

$779.00 AUD
$779.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

E70596 Raymarine YachtSense Reverse Power Output Module with 1 x Bi-Directional 20 Amp Output - Part Number: E70596

The Reverse power module provides 1 x 20 A bidirectional channel.

Model: Reverse Power Module

Key Features

The Reverse Module provides control over 1 x DC circuit that can reverse its polarity. It is ideal for motion control applications like hydraulic pumps, actuators, sunroofs, sunshades, and electric windows.

Channel capabilities include:

  • 20 A reversible drive module
  • Over current protection
  • Under current detection
  • Voltage protection up to 32 V DC

Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.

📏 Specifications

Power Specification
Nominal supply voltage 12 V dc / 24 V dc
Operating voltage range 8 V dc to 32 V dc
Maximum output current 20 A
Data Connections
Reversible connection 1 channel reversible power
Module communications Internal 6–pin connection
Physical Data
Module Dimensions: H/W/D (not including busbars) 160 mm (6.30 in) x 28.00 mm (1.10 in) x 76.50 mm (3.01 in)
Weight 0.26 Kg (0.57 lb)

📦 What's in the box

  • Input or output modules (All modules are Supplied fitted with Molex connector(s) Output modules are supplied with fuses fitted).
  • Documentation

✅ Condition

  • Brand new genuine product
  • Supplied in original packaging
  • Full Australian manufacturer warranty
