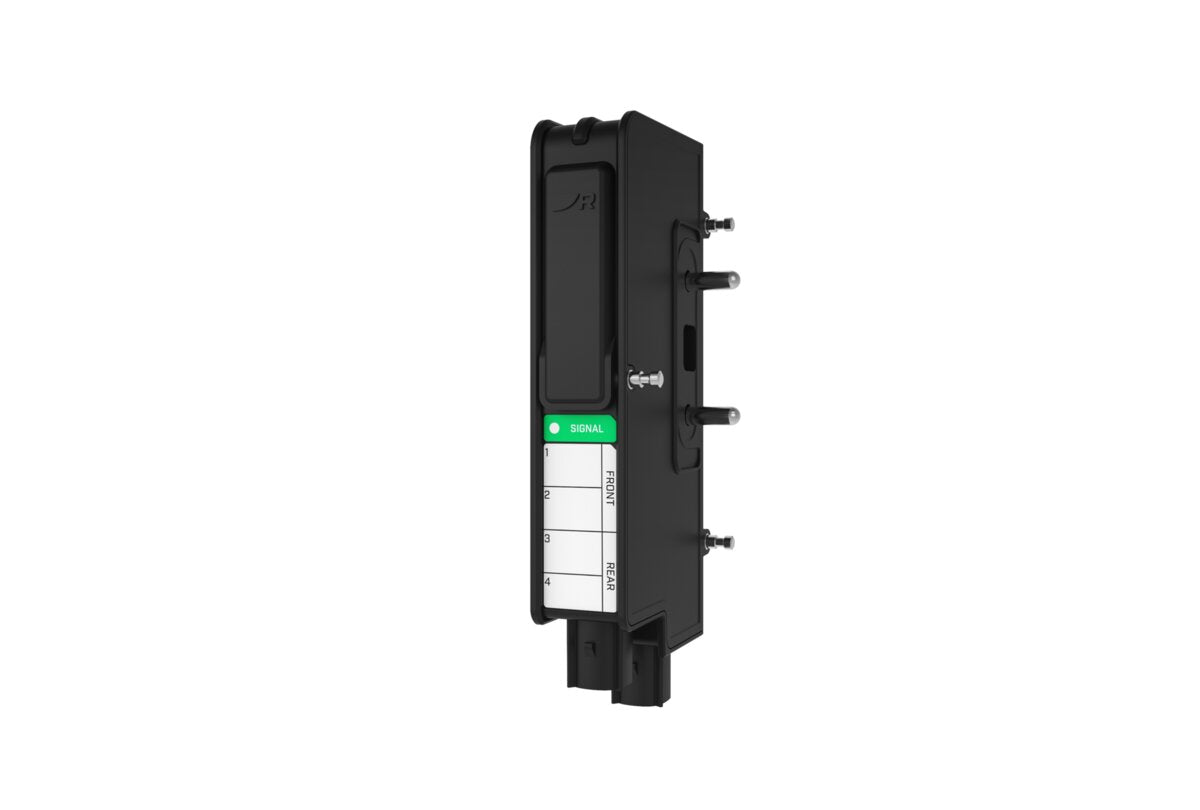

E70597 Raymarine YachtSense Signal Module with up to 4 x Inputs or 4 x 50mA Outputs - Part Number: E70597
The Signal module provides 4 x digital or analog input / output channels.
Model: Signal Module
Key Features
The Signal Module provides a connection to up to 4 input signals. These can be used to monitor tank levels, battery voltages, temperatures, switches or a variety of other sensors. Any of these 4 channels can also be used as a low current output signal to control other electronic devices or relays.
Input channel capabilities:
- Digital inputs for buttons and switches
- Resistive sensors for temperatures and tank levels
- Voltage levels for sensors and batteries
- 4-20 mA signals for industrial standard sensors
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Power Specification | |
|---|---|
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Maximum output current | 1 A (250 mA per channel) |
| Data Connections | |
| Signal Connections | 4 x digital / analog input channels / 250 mA output |
| Module communications | Internal 6–pin connection |
| Physical Data | |
| Module Dimensions: H/W/D (not including busbars) | 172 mm (6.77 in) x 28.00 mm (1.10 in) x 76.50 mm (3.01 in) |
| Weight | 0.22 Kg (0.49 lb) |
📦 What's in the box
- Input or output modules (All modules are Supplied fitted with Molex connector(s) Output modules are supplied with fuses fitted).
- Documentation
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
