🔧 Product Description
E70640 Raymarine YachtSense Link Marine Cloud Router w/ 4X GB RayNet, Wi-FI, 3G/4G, GNSS, Premium External Antenna w/ 5M cable and Input/Out Cable Set - Part Number: E70640
4G enabled marine router with GPS, Wi-Fi, Raynet and digital input/output ports
Model: 4G enable marine router with GPS, Wi-Fi, Raynet and digital input/output ports
Marine Mobile Router

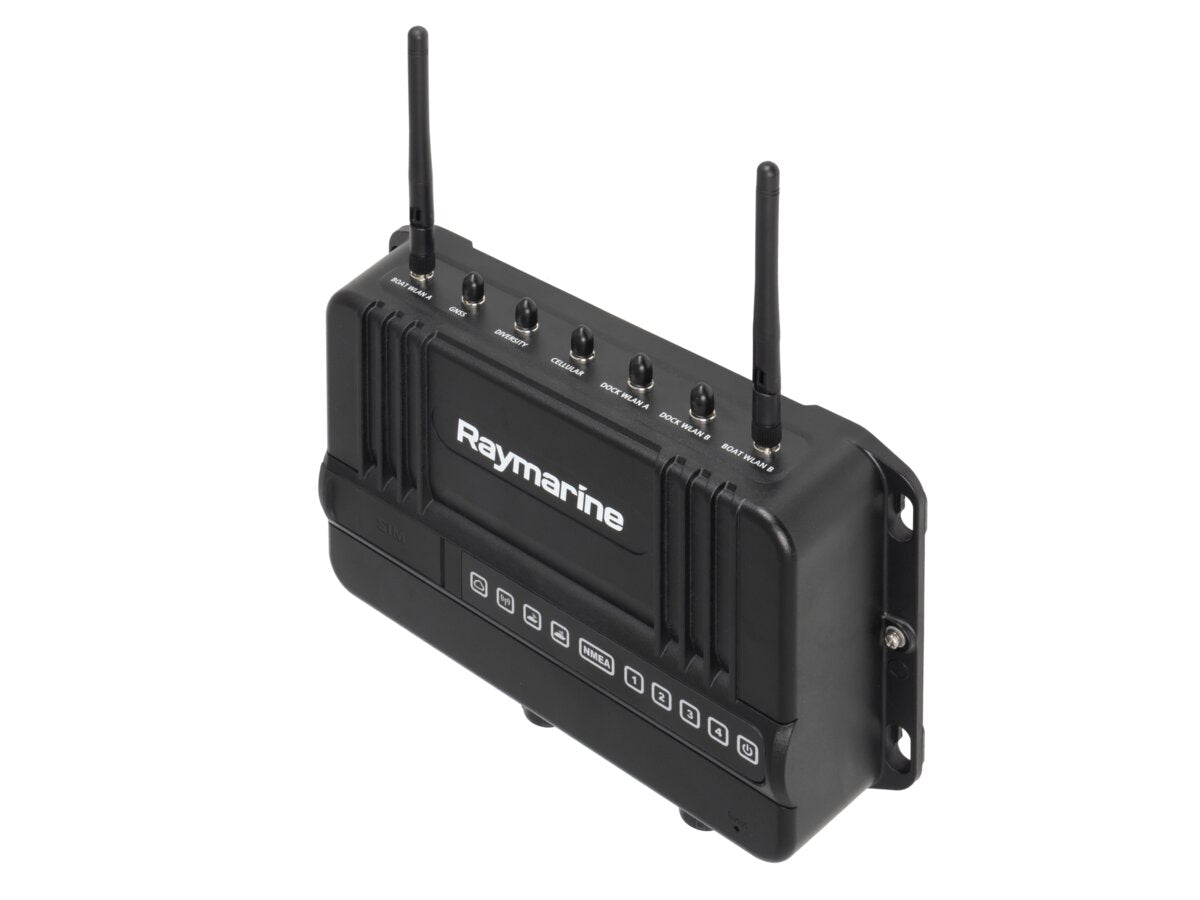

YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom® displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected.
Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.
Remote Monitoring
- GeoFence provides alerts and notifications if your vessel moves in or outside a safety zone.
- Low power consumption mode supports GeoFence remote monitoring (subscription required)
- x4 input and output low voltage digital switching channels
- Easy DIY setup using a web browser or Axiom display
Always Connected
- Connect Raymarine equipment, tablets, smart TVs, and other wireless devices to a unified onboard network
- Mobile broadband connection to 4G (LTE) networks (SIM card and data plan required)
- Supports dual SIM cards for seamless connectivity to international mobile networks
- Integrated GPS with a range extending 5 in 1 antenna (GPS/GNSS, 3G, 4G, and Wi-Fi)
Stay Informed
- Connect and view real time instrument and navigation data on board or remotely
- x4 Raynet Ethernet ports for connecting Raymarine devices
- SeaTalkNG/NMEA2000 port
- Rugged IPX6 enclosure is shock and vibration resistant
Genuine Raymarine product supplied through Raymarine's Australian distributor, shipped Australia-wide from Kadina, SA.
📏 Specifications
| Conformance | |
|---|---|
| Product markings | WEEE Directive |
| Standards | Verizon certified |
| Standards | Radio Equipment Directive 2014/53/EU |
| Standards | PTCRB: 4G, 3G, 2G approved |
| Standards | NMEA 2000 certified |
| Standards | ISED ICES-003 |
| Standards | FCC Part 15C and Part 15E |
| Standards | EN 60945:2002 (Europe, Australia New Zealand) |
| Product markings | CE |
| Product markings | Australian Tick |
| Standards | AT&T certified |
| Network (Cellular / Diversity) | |
| 2G/3G/4G frequencies | WCDMA: B1/B2/B4/B5/B6/B8/B19 |
| 2G/3G/4G frequencies | LTE-TDD: B38/B39/B40/B41 |
| 2G/3G/4G frequencies | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 |
| 2G/3G/4G frequencies | GSM: B2/B3/B5/B8 |
| Environmental | |
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Physical | |
| Dimensions | Length: 242.00 mm (9.53 in), Height: 162.20 mm (6.39 in), Depth: 63.00 mm (2.48 in) |
| Weight | 1.03 Kg (2.26 lb) |
| Power | |
| Operating voltage range | 8 V dc to 32 V dc |
| Nominal supply voltage | 12 V dc |
| Network | |
| Maximum upload speed | 50 Mbps (Actual performance will vary and usually be less than the stated maximums) |
| Maximum download speed | 150 Mbps (Actual performance will vary and usually be less than the stated maximums) |
| LTE category | 4 |
| Network (DOCK WLAN) | |
| Wi-Fi station mode frequencies | 5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm |
| Wi-Fi station mode frequencies | 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm |
| Wi-Fi station mode frequencies | 2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm |
| Network (BOAT Wi-Fi) | |
| Wi-Fi access point mode frequencies | 2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 13.28 dBm |
📦 What's in the box
- YachtSense Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted)
- 4 x mounting fixings (PA 4 x 25 mm self tapping screws)
- Documentation
- 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket
- 2 x Dipole antenna (BOAT Wi-Fi)
- RayNet to RJ45 cable 1 m (3.3 ft)
- SeaTalkng spur cable 1 m (3.3 ft)
- Power cable with 8 A fitted fuse 1.5 m (4.9 ft)
- Input cable (5-wire) 0.5 m (1.64 ft)
- Output cable (8-wire) 0.5 m (1.64 ft)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
