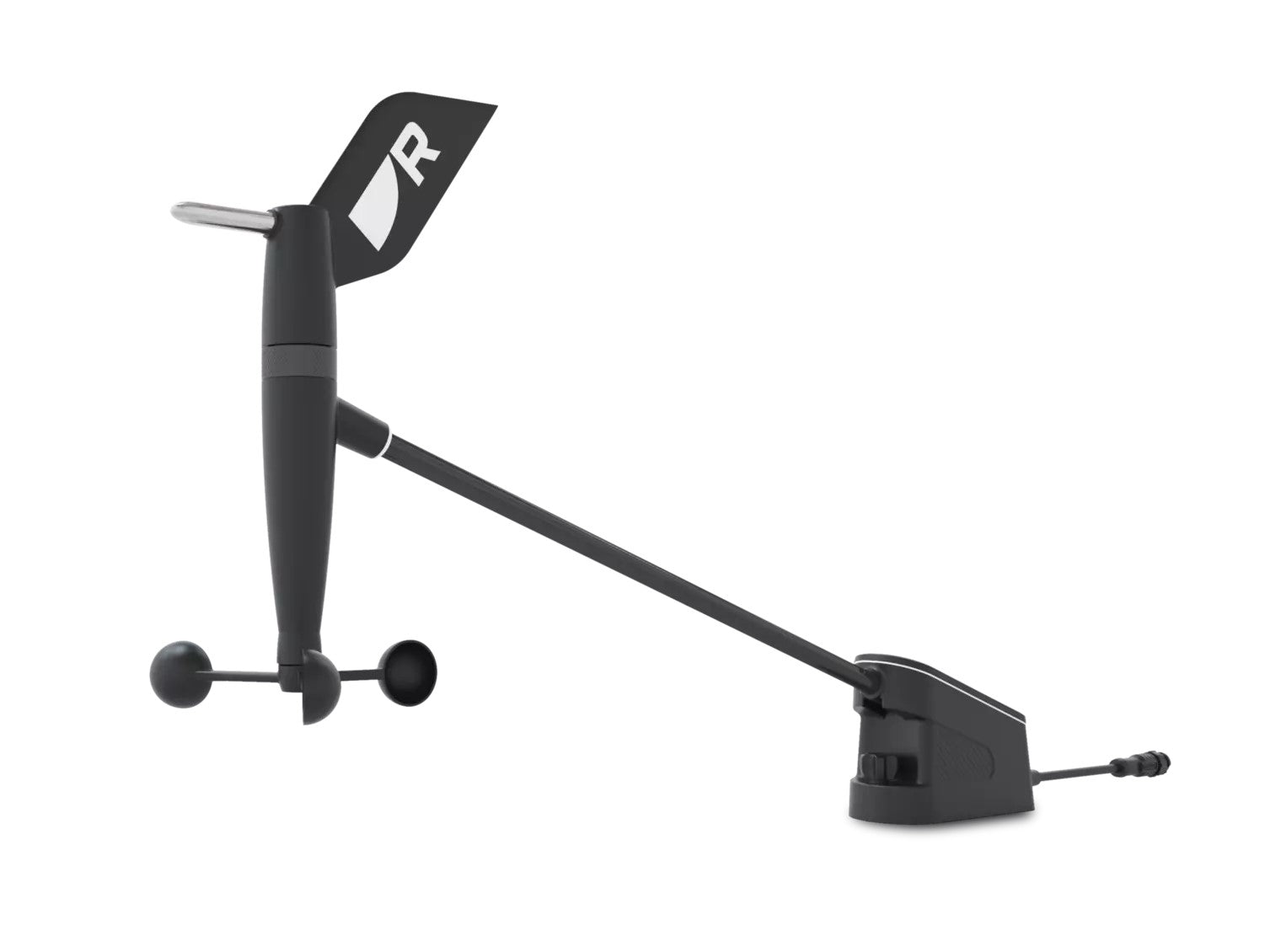

E70670 Raymarine RSW - Smart Wind Transducer, Short Arm with 30m Cable - Part Number: E70670
The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.
Designed for sailors, by sailors, the transducer is lightweight but extremely strong. The 3D motion sensor accounts for pitch and roll whilst Raymarine Smart Wind technology compensates for mast twist and bend and up-wash against the sails.
Winner of the DAME Award.
RSW Wired Product Features
Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
Finely Tuned
Through rigorous wind tunnel testing, Raymarine has fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.
Sail Smarter
Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Physical | |
|---|---|
| Length | Wind transducer (including cable): 657.762 mm (25.90 in) Wind transducer (excluding cable): 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in) |
| Width | Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in) |
| Height | Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 mm (1.21 in) |
| Power | |
| Nominal supply voltage | 12 V dc (via SeaTalk NG) |
| Operating voltage range | 9 V to 16 V dc |
| Power Consumption | < 100 mW |
| Fuse rating | Ensure that the SeaTalk NG backbone is protected by a 5 A fuse |
| NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating | 1 |
| Environmental | |
| Operating temperature range | -25°C to +55°C (-13°F to +131°F) |
| Storage temperature range | -30°C to +70°C (-22°F to +158°F) |
| Relative humidity | Masthead: 100% Below deck: up to 93% @ 40°C |
| Waterproof rating | Wind transducer: IPx6/IPx7 Wired gateway: IPx3 |
| Wind | 115 mph (185 kph) |
| Vibration | EN 60945:2002 (exposed) |
| Conformance | |
| Europe, Australia & New Zealand | EN 60945:2002 |
| Canada | ICES-003 |
| USA | CFR47 Part 15 |
| Japan / China | IACS section E10 |
| Product markings | UKCA CE Australian Tick WEEE Directive Industry Canada |
| Manual | |
| Download Manual | Download Raymarine Smart Wind manuals, declarations of conformity and mounting templates here. |
| Software | |
| Software Update | Download the latest software for your Raymarine Smart Wind. |
📦 What's in the box
- No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
- No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
- 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
- Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
- Mast cable, 30 m (98.43 ft) reel
- Documentation
- Wind transducer
- Smart wind wired gateway
- SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
