VBC Aftermarket Yanmar/Volvo Penta Exhaust Clamp 4 Inch 119773-13300 / 842993 Cast 316 Stainless Steel | Sawley's Select Marine Parts

🔧 Product Description

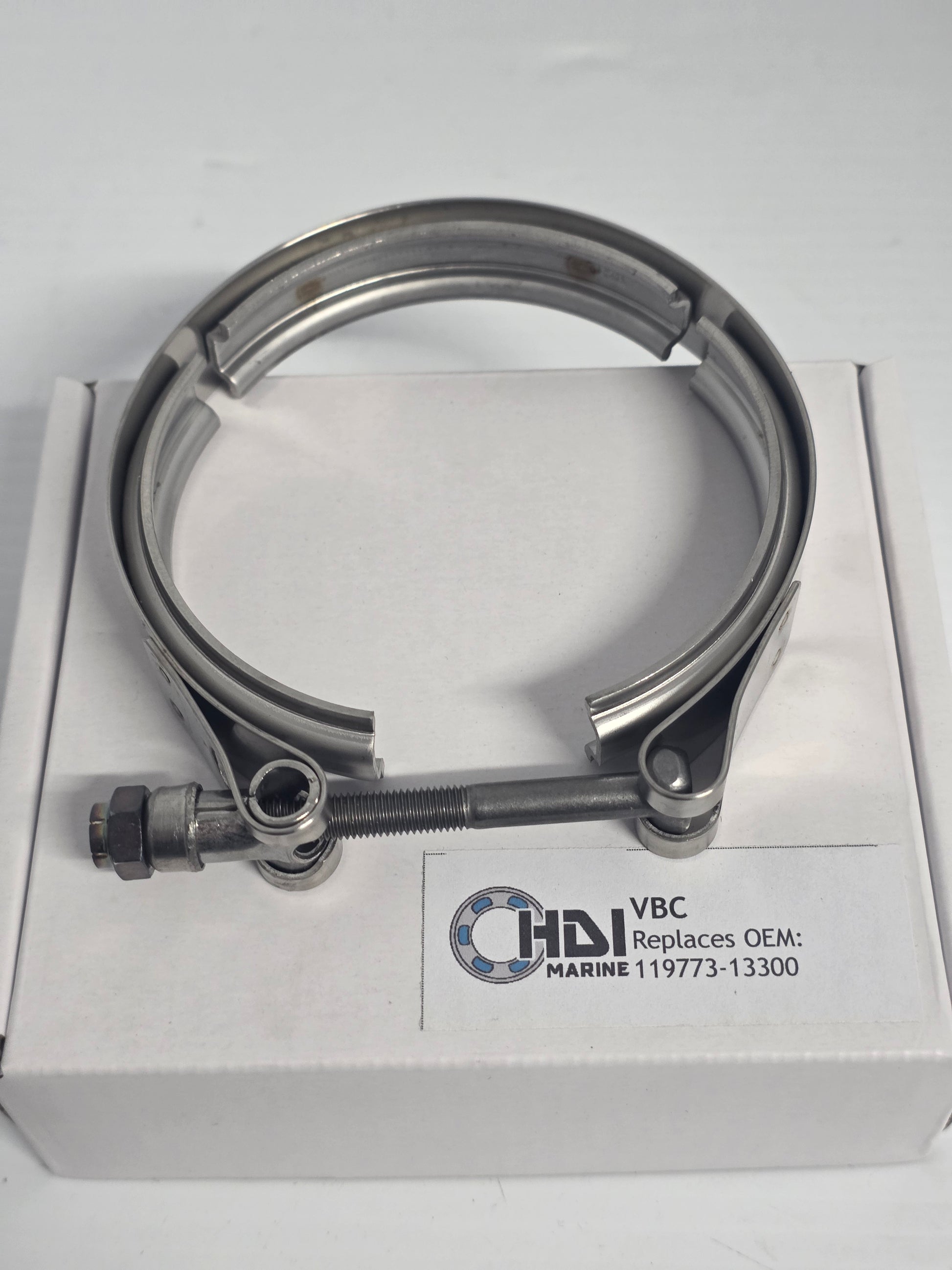

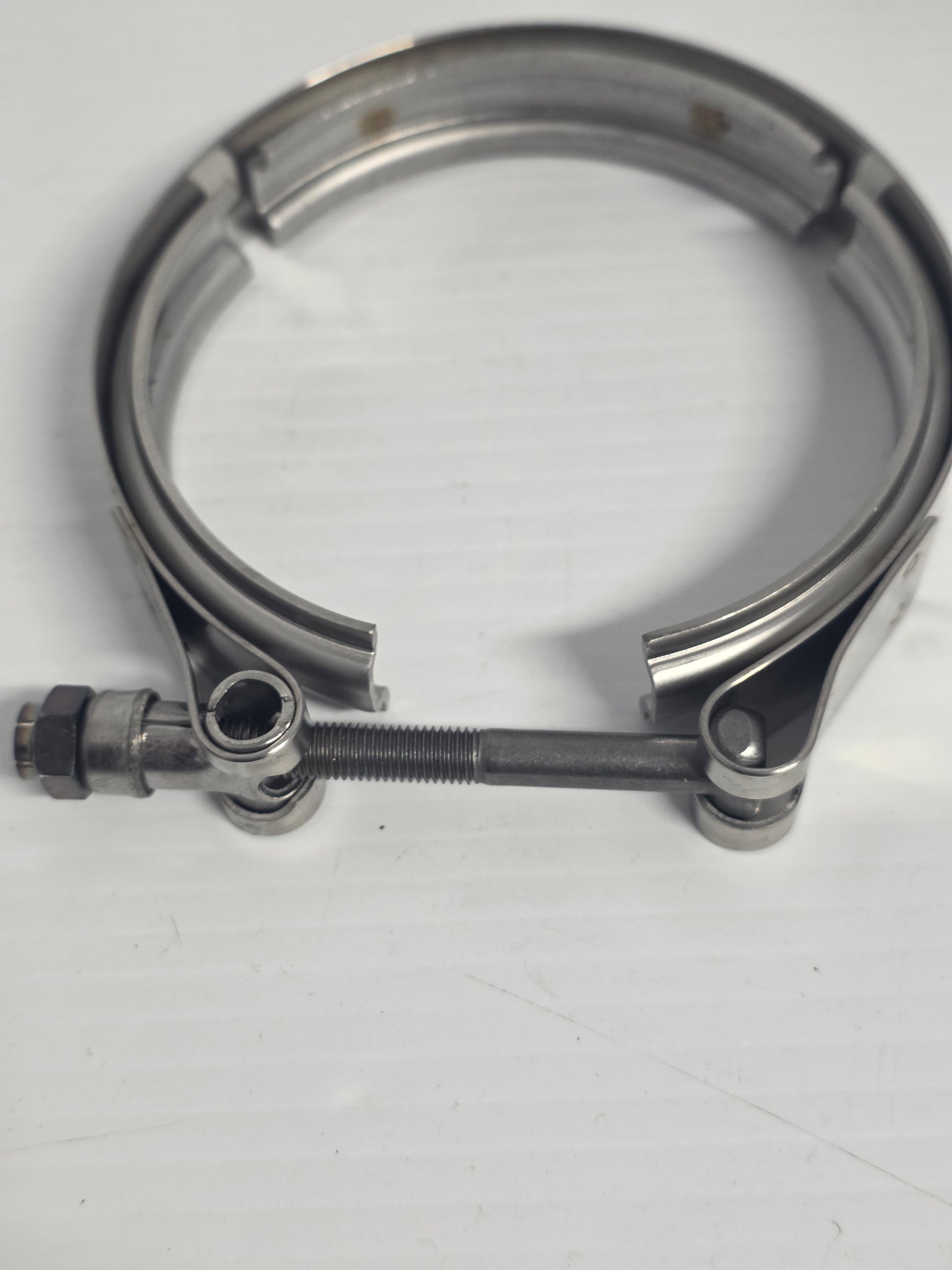

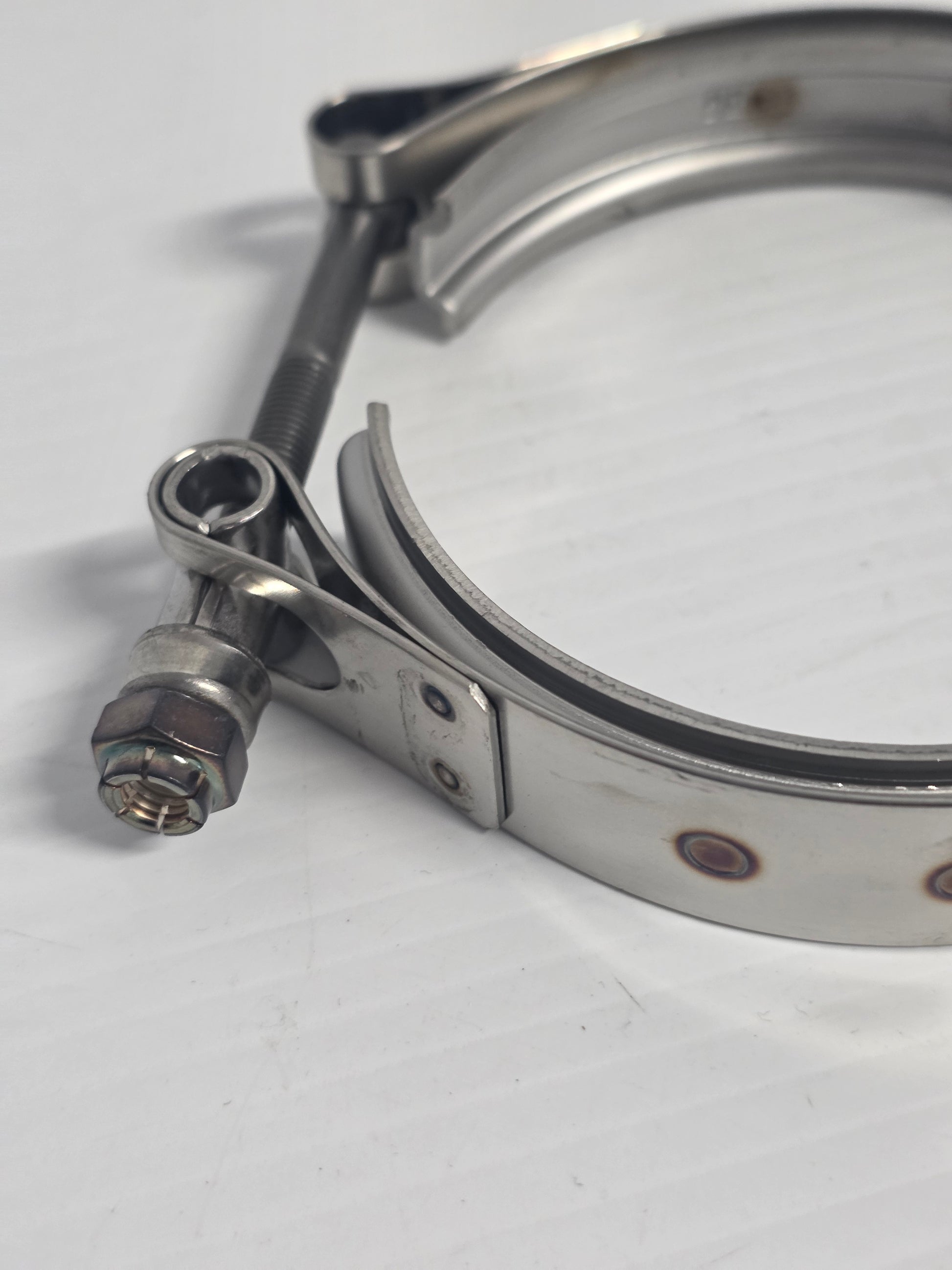

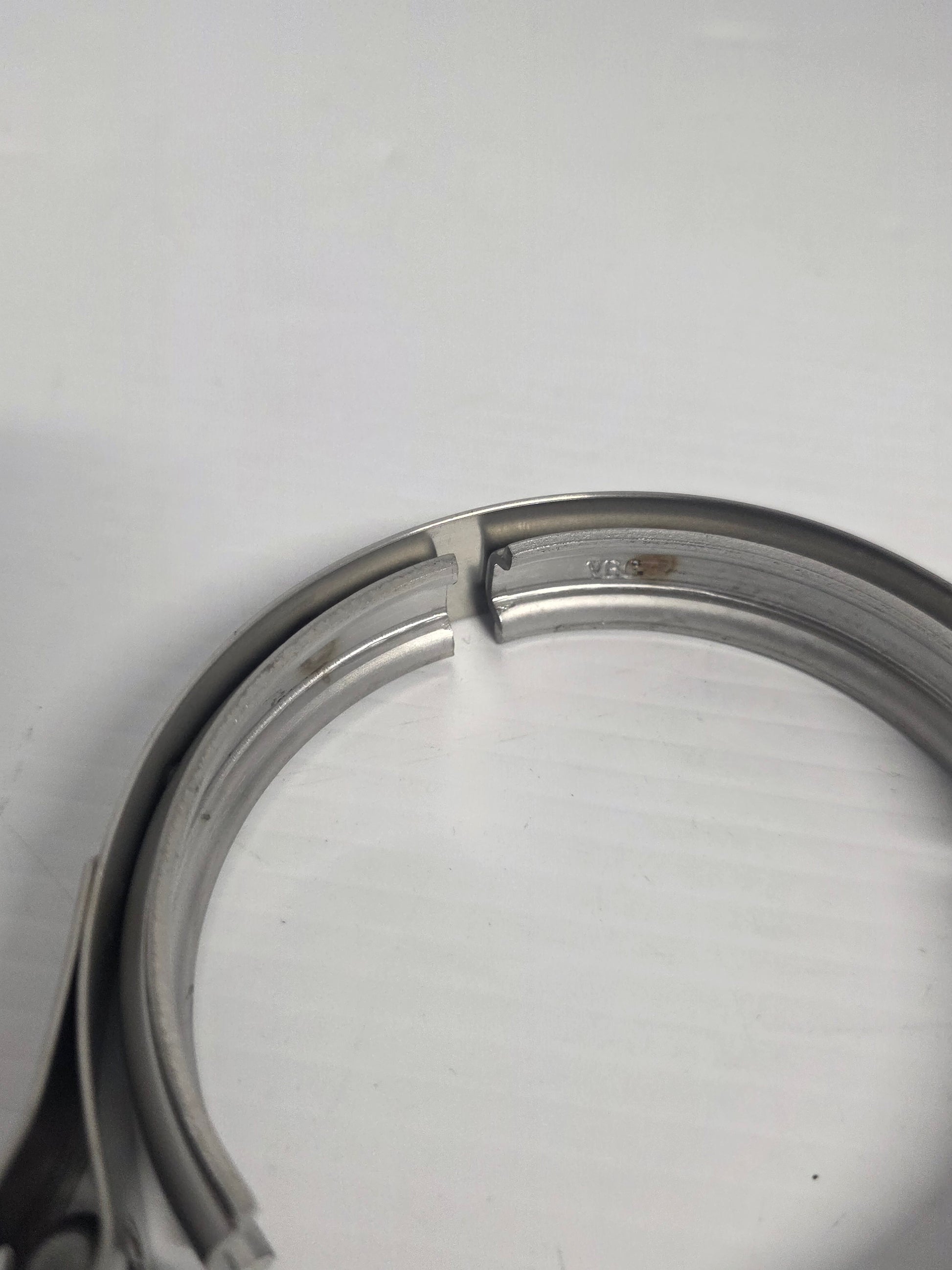

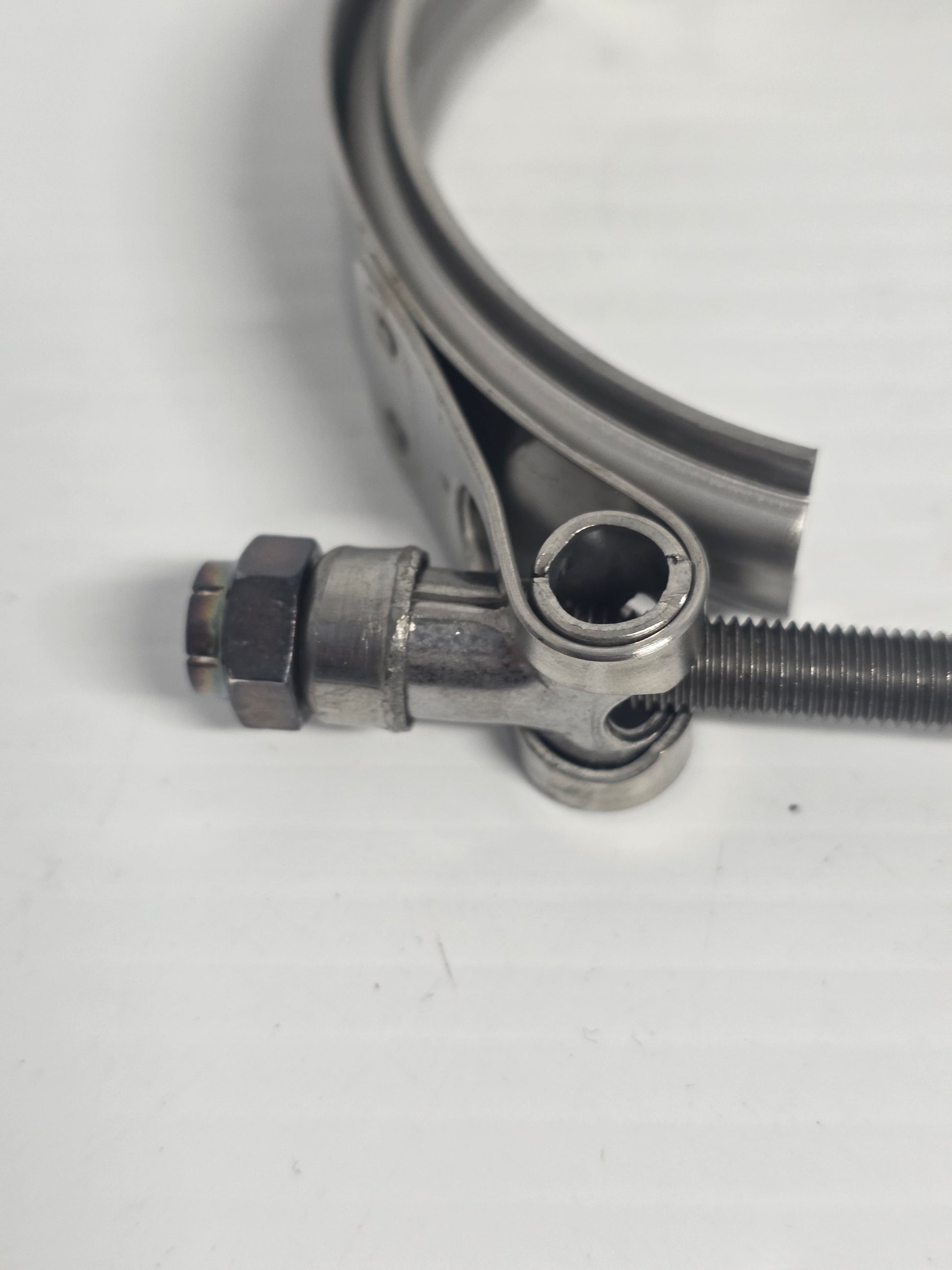

Aftermarket Yanmar/Volvo Penta Exhaust Clamp 4 Inch 119773-13300 / 842993 Cast 316 Stainless Steel - Part Number: VBC

A cast AISI 316 stainless-steel 4-inch V-band clamp for the removable exhaust joint between Yanmar dry risers and VB-series mixing elbows. It replaces Yanmar 119773-13300 and is also used as a corrosion-resistant substitute for Volvo Penta 842993 where the flange diameter and profile match.

⚙️ Key Features

• Cast AISI 316 stainless-steel construction

• 4-inch V-band exhaust-joint size

• Replaces Yanmar 119773-13300

• Cross-references to Volvo Penta 842993 on matching joints

• Allows the mixer to be removed for cleaning and inspection

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• VBC → Replaces Yanmar 119773-13300

• VBC → Cross-references to Volvo Penta 842993 where the flange profile matches

OEM / Related Numbers:

• VBC

• 119773-13300

• Volvo Penta 842993

Aftermarket / Verified Equivalents:

• HDI Marine: VBC

🚤 Compatibility

Commonly used on:

• Yanmar 4LHA and 6LP/6LPA removable wet-exhaust joints

• Volvo Penta 31/41-series exhaust joints using clamp 842993

Typically suits:

• Engine models:

• Yanmar 4LHA-DTE

• Yanmar 4LHA-DTP

• Yanmar 4LHA-HTE

• Yanmar 4LHA-HTP

• Yanmar 4LHA-STE

• Yanmar 4LHA-STP

• Yanmar 4LHA-STP2

• Yanmar 6LP-DTE

• Yanmar 6LP-STE

• Yanmar 6LPA-DTP

• Yanmar 6LPA-DTZE

• Yanmar 6LPA-DTZP

• Yanmar 6LPA-STP

• Yanmar 6LPA-STP2

• Yanmar 6LPA-STZE

• Yanmar 6LPA-STZP

• Volvo Penta AD31B

• Volvo Penta TAMD31B/D/L-A/M-A/P-A

• Volvo Penta TMD31B/D/L-A

• Volvo Penta AD41B/D

• Volvo Penta TAMD41B/D/H-A/L-A/M-A/P-A

• Volvo Penta TMD41B/D/L-A

• Nominal Joint Size: 4 in

• Material: cast AISI 316 stainless steel

• Clamp Type: removable V-band

🔌 Function

The clamp draws the two mating V-band flanges together evenly to maintain a gas- and water-tight removable exhaust joint.

Common signs of failure:

• Soot or water leakage at the clamped joint

• Loose, stretched or distorted clamp band

• Cracked T-bolt, trunnion or latch

• Uneven engagement of the mating V-band flanges

• Corrosion that prevents the clamp reaching its specified tension

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
