🔧 Product Description

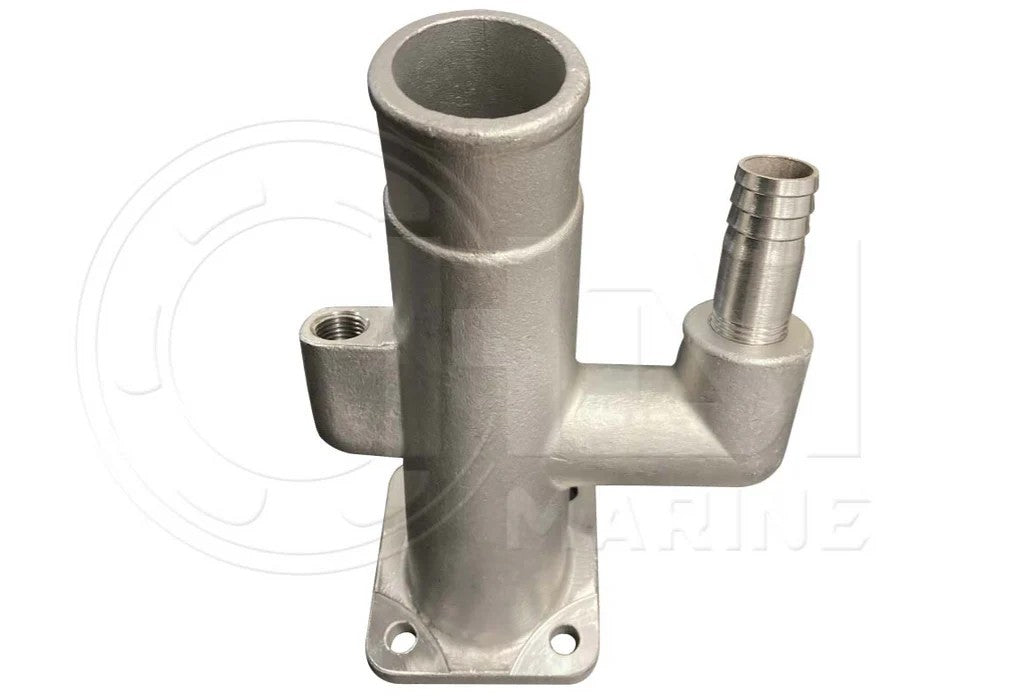

Aftermarket Fischer Panda Cast 316 Stainless Steel Exhaust Elbow - Part Number: GIZ1381E00

A cast AISI 316 stainless-steel exhaust mixing elbow for Fischer Panda MINI-8 and MINI-9 marine generator sets. It replaces the original elbow at the generator exhaust outlet and includes the sealing and water-inlet parts required for installation.

⚙️ Key Features

• Cast AISI 316 stainless construction

• 1-1/2-inch wet-exhaust outlet

• 3/4-inch / approximately 20mm cooling-water hose barb

• Supplied with mounting gasket

• Direct generator exhaust replacement

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• HDI PANDA8 → Replaces Fischer Panda GIZ1381E00

OEM / Related Numbers:

• GIZ1381E00

• HDI PANDA8

Aftermarket / Verified Equivalents:

• HDI Marine: PANDA8

Included Components:

• Mixing elbow - Part Number: GIZ1381E00 / HDI PANDA8

• Mounting gasket - supplied with PANDA8

• Threaded cooling-water hose barb - supplied with PANDA8

🚤 Compatibility

Commonly used on:

• Fischer Panda compact marine generator wet-exhaust systems

Typically suits:

• Engine models:

• Fischer Panda MINI-8

• Fischer Panda MINI-9

• Exhaust Outlet: 1-1/2 in / 38mm

• Cooling-Water Connection: 3/4 in OD / approximately 20mm hose barb

• Material: cast AISI 316 stainless steel

🔌 Function

The elbow carries combustion gas from the generator exhaust manifold and injects seawater before the exhaust enters the flexible hose.

Common signs of failure:

• External corrosion, cracking or pin-hole leakage

• Internal carbon, rust or salt restriction

• Cooling water entering the manifold, turbocharger or cylinders

• Steam, reduced cooling-water discharge or an abnormally hot exhaust hose

• Loss of power caused by excessive exhaust back-pressure

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
