GS1-HYU001 Whiteline Performance Suspension Kit to Suit Hyundai I30 N PD Hatch and Fast Back | Genuine Whiteline Sway Bar
GS1-HYU001 Whiteline Performance Suspension Kit to Suit Hyundai I30 N PD Hatch and Fast Back | Genuine Whiteline Sway Bar
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Reduces body roll and lowers your centre of gravity for sharper grip and stability through corners; a complete, premium upgrade. Includes: 22mm 2-Point Adjustable Rear Sway Bar, Rear Sway Bar Link & Front and Rear Lowered Coil Springs.

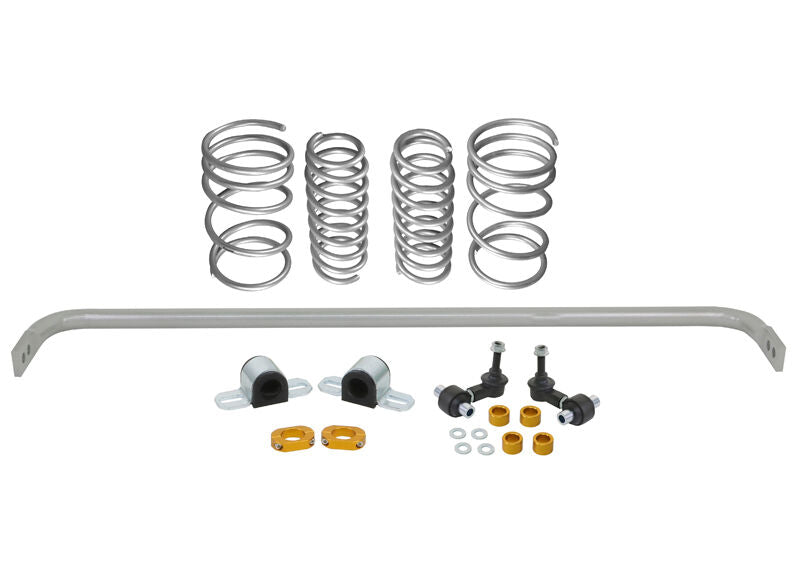

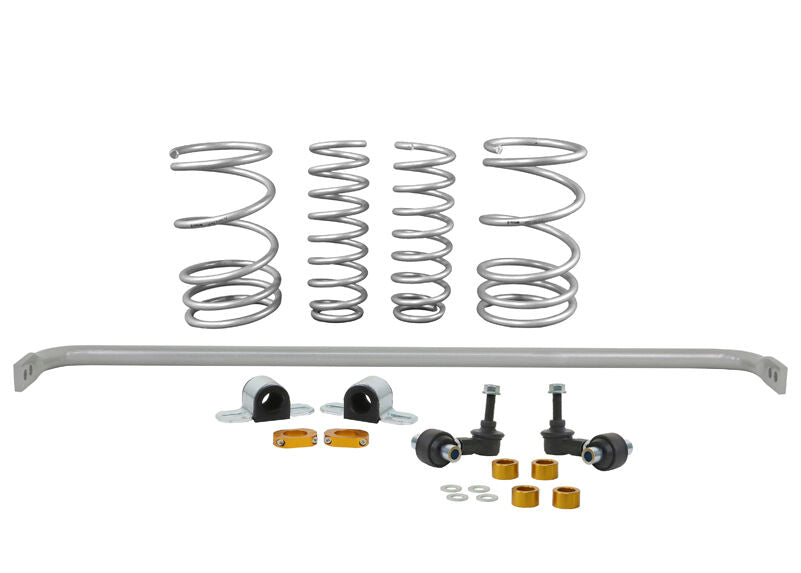

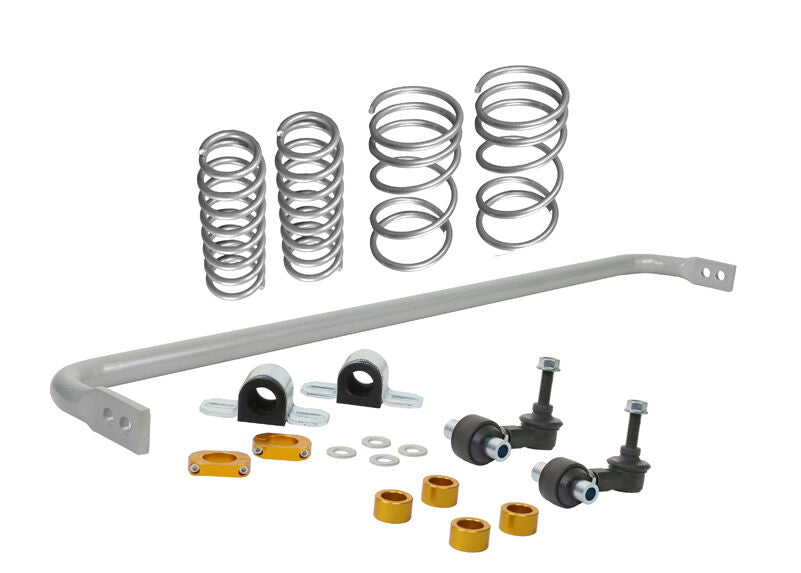

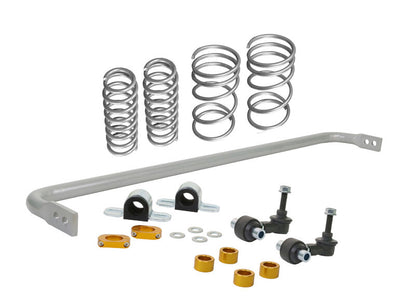

Kit Contains:
WSK-HYU001, BHR98Z and KLC221 - essential to 'Activate more grip'

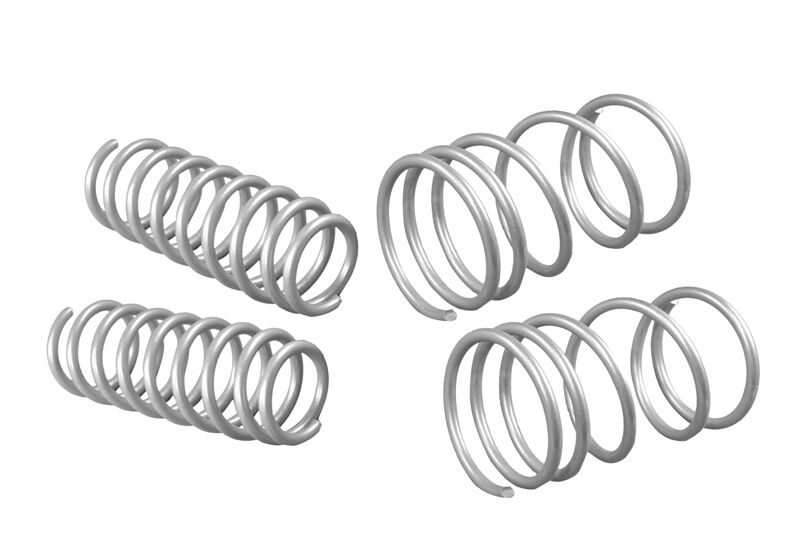

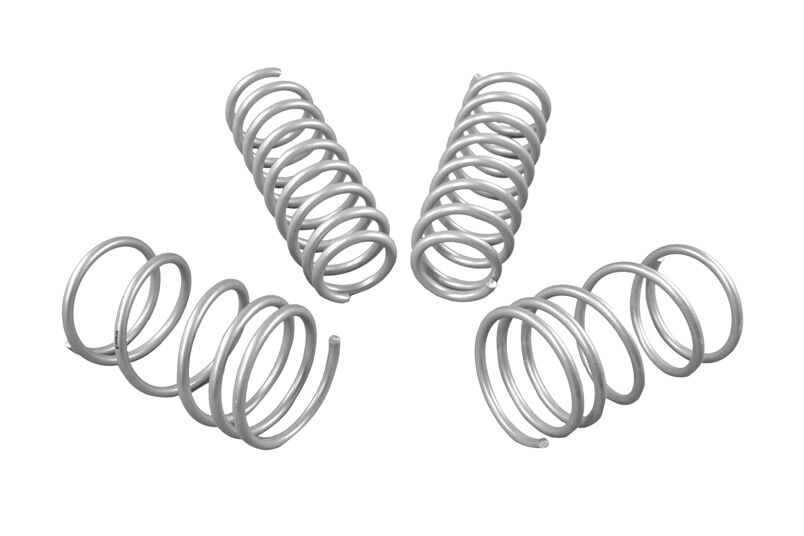

- Front and Rear Coil Springs - Lowered

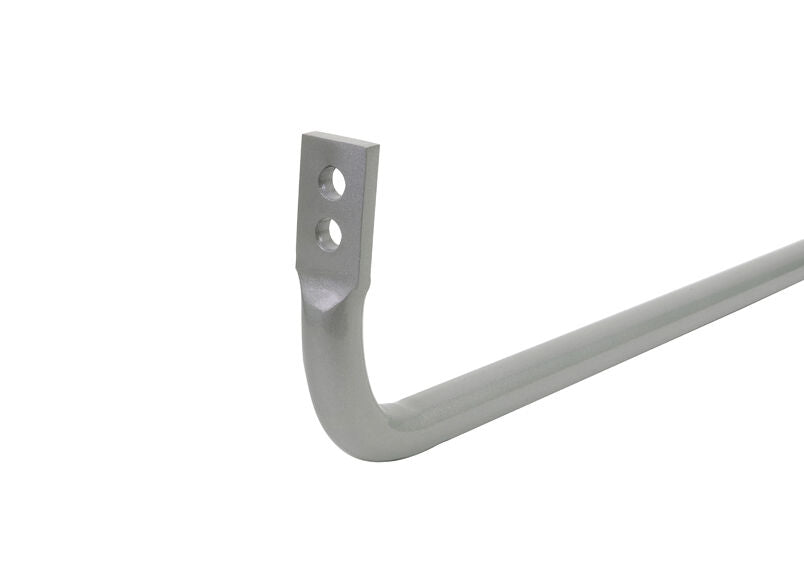

- Rear Sway Bar - 22mm 2 Point Adjustable
- Rear Sway Bar - Link Kit
Whiteline Springs deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. By lowering the vehicles centre of gravity, the unique and progressive rate coil design not only improve performance but enhance overall appearance.
Upgrading the sway bars on your vehicle will;
- Minimising excess body roll
- Dramatically improving handling performance
- Tyre life
- Steering response
- Braking stability and response
- No compromise to ride quality, NVH or comfort of the vehicle
We recommend fitting this kit for total grip activation and unrivalled handling and optimal vehicle performance.
Benefit Note: The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature rear adjustable sway bar, drop links and performance lowering springs.
Engineered to dominate corners, with less body roll, more grip, tuned comfort, and total transformation.
- All-in-one suspension upgrade
- Precision sway bars reduce body roll
- Lowering springs boost grip and stance
- Enhances cornering and braking stability
- Improves tyre wear and handling geometry
- Fine-tune for your driving style with adjustable components
Kit Specifications
| Sway Bar Kit | ||
|---|---|---|
| Location | Front | Rear |
| Sway Bar | BHR98Z | |
| Diameter (mm) | 22 | |
| Diameter (in) Fraction | 7/8" | |
| Diameter (in) Decimal | 0.866 | |
| Material | Solid Spring Steel | |
| Sway Bar Adjustment Type | 2 Point Adjustable | |
| Sway Bar Link Included | No | Yes |
| Location | Front | Rear |
|---|---|---|
| Lowering (mm) | 25 | 25 |
| Lowering (in) | 1 | 1 |
| Spring Rate | 3.6kg/mm (202lb/in) | 4.0kg/mm (225lb/in) |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 14kg | 30.86lbs |
| Length | 120cm | 47.24" |
| Width | 25cm | 9.84" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | GS1-HYU001 |
| Components Per | 4 Springs, 1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 2 lateral Locks, 4 Spacers, 4 Washers |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Reduces body roll and lowers your centre of gravity for sharper grip and stability through corners; a complete, premium upgrade. Includes: 22mm 2-Point Adjustable Rear Sway Bar, Rear Sway Bar Link & Front and Rear Lowered Coil Springs. |
| EAN | 9319924454129 |
