H3038 Mackay 7205 Dunbier Breakaway Switch | Marine Trailer Part
H3038 Mackay 7205 Dunbier Breakaway Switch | Marine Trailer Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

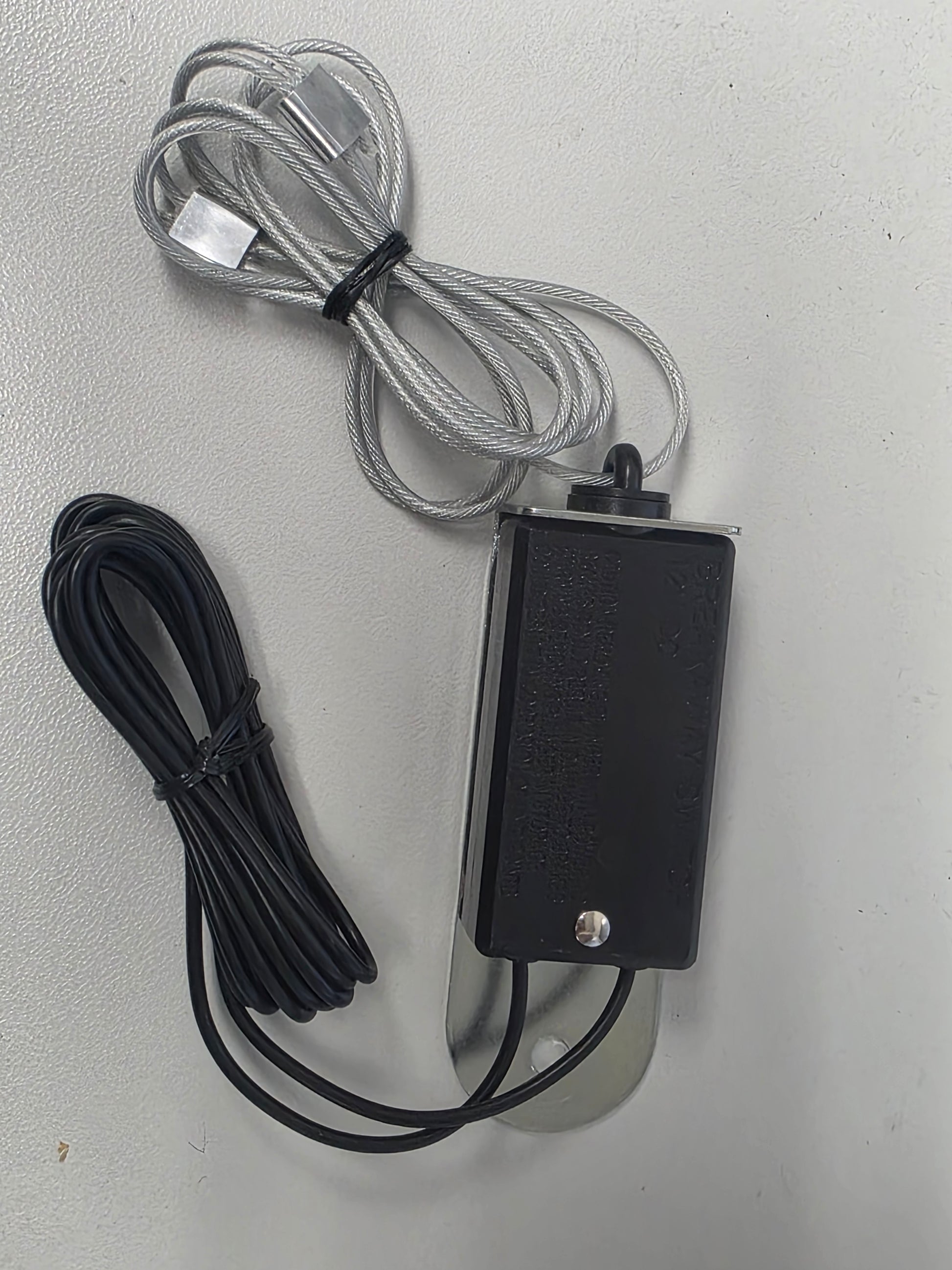

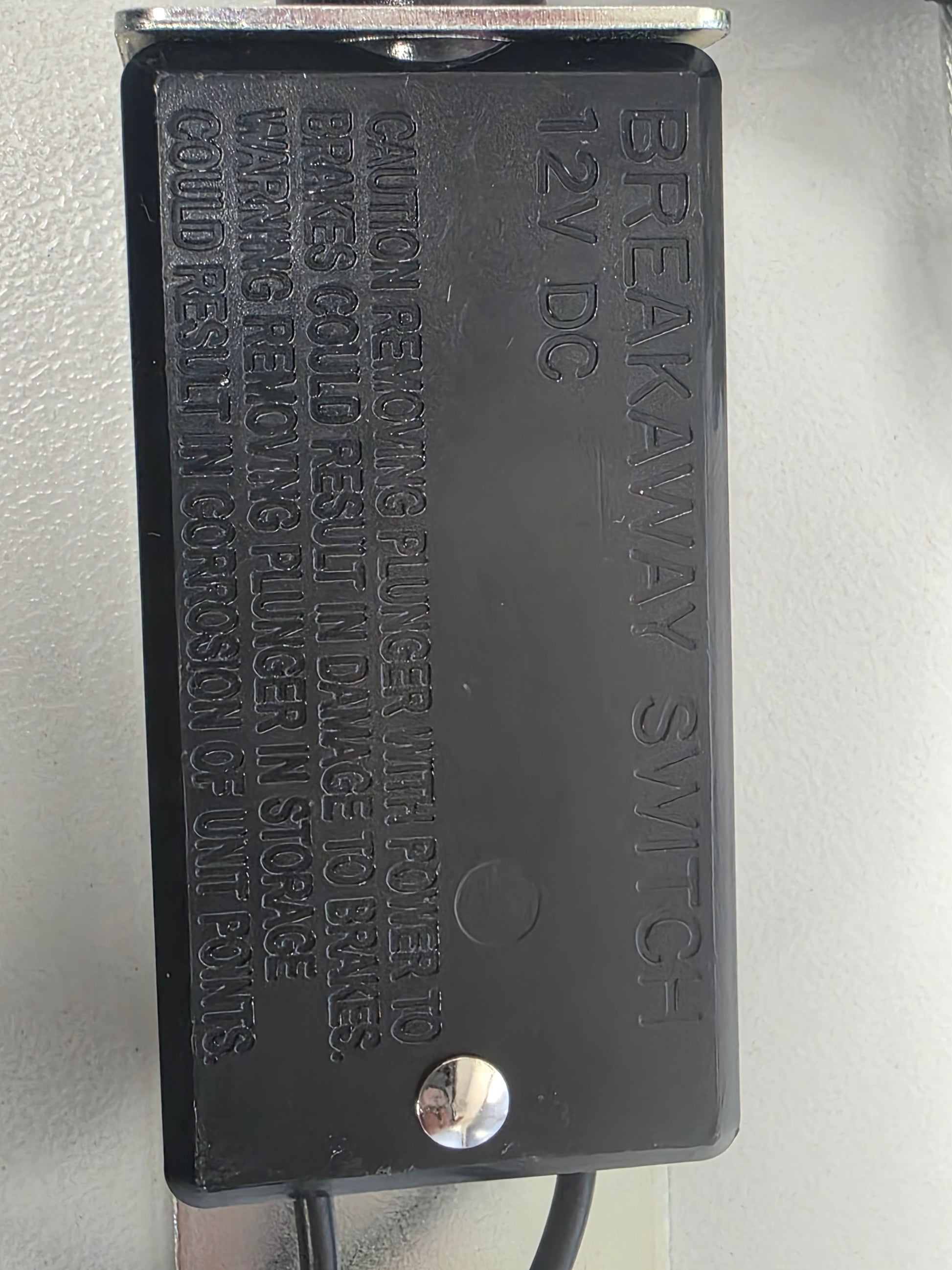

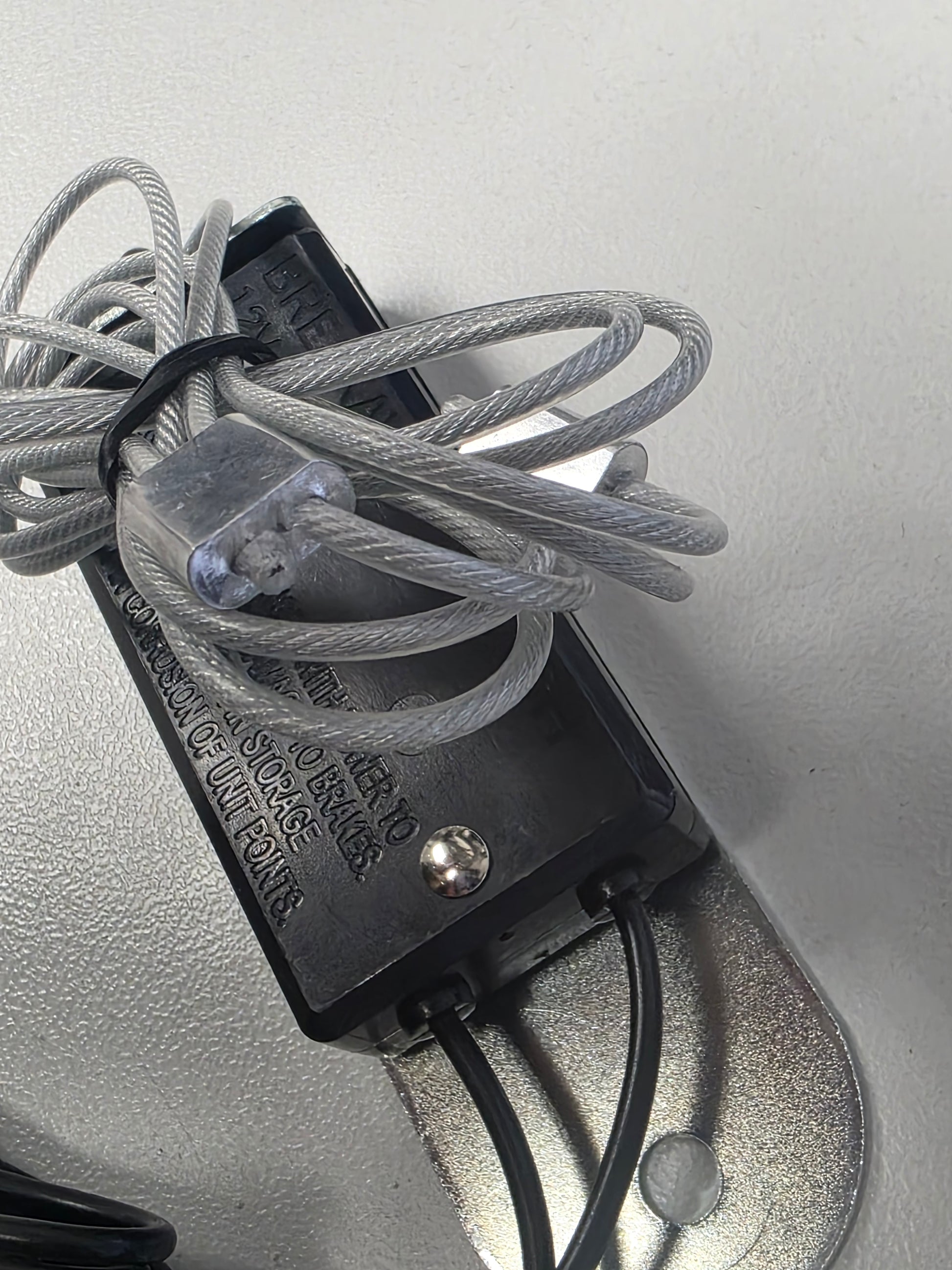

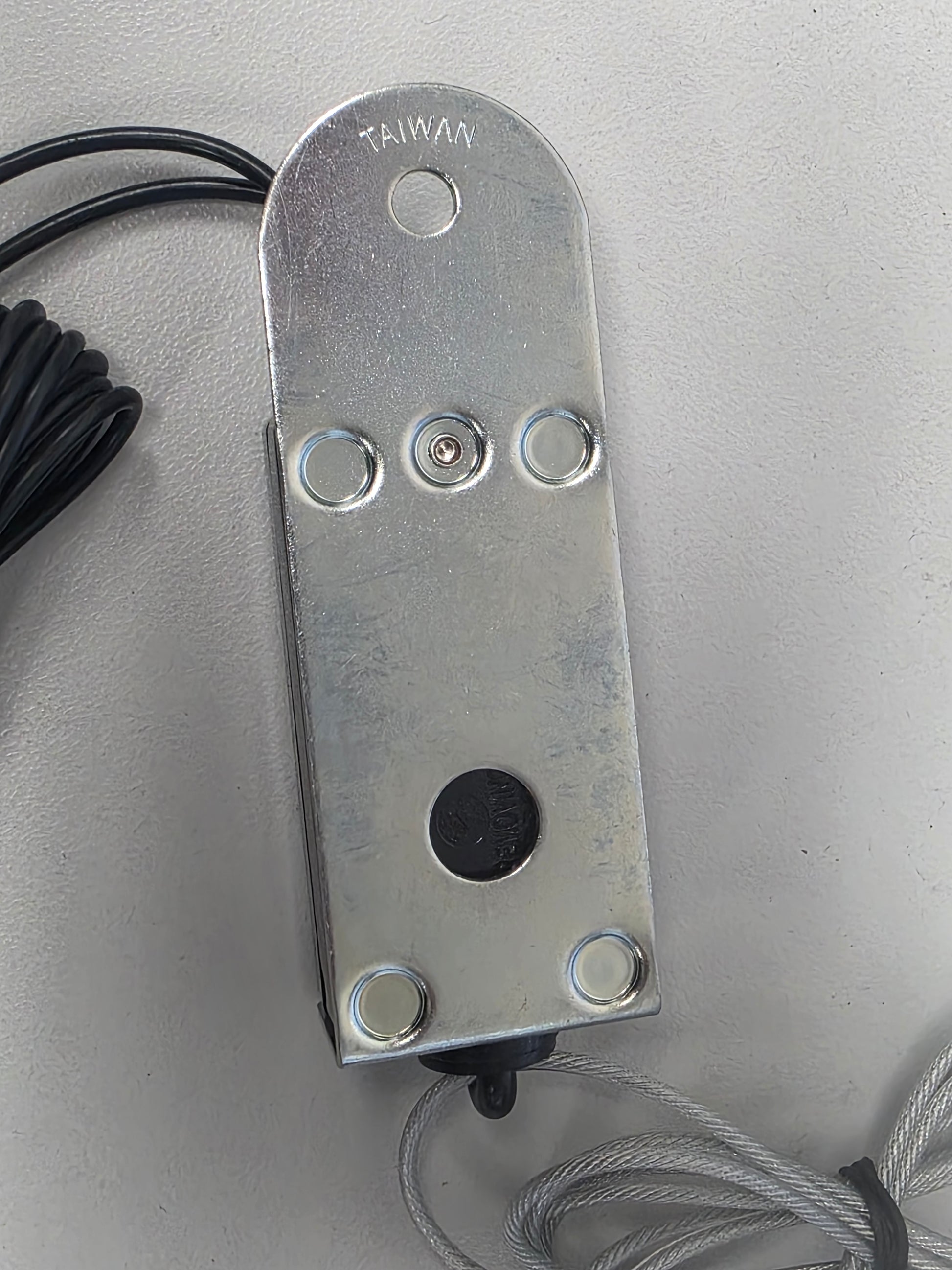

Mackay Trailer Breakaway Switch with Pull Cable – Part Number: H3038
A replacement emergency breakaway switch for electric or electric-over-hydraulic trailer braking systems. If the trailer separates from the tow vehicle, the tether pulls the switch pin and commands the trailer brakes to apply.
⚙️ Key Features
- Emergency trailer-separation switch
- Pull-pin and tether-cable operation
- Weather-resistant trailer mounting
- Suitable for compatible breakaway braking systems
- Replacement for damaged or corroded switch assemblies
📏 Specifications
- Mackay reference: H3038
- Dunbier reference: 7205
- Electrical configuration must match the breakaway battery and actuator/controller
- Cable length and mounting position must allow independent operation
🔄 Cross Reference & Related Parts
- Mackay: H3038
- Dunbier: 7205
- Used with compatible AL-KO iQ7, Hydrastar or electric-brake breakaway circuits subject to wiring design
🚤 Trailer Compatibility & Application
- Suitable for trailers legally requiring automatic emergency brake application
- The tether must attach to the tow vehicle independently of the safety chains
🔌 Function
Closes or changes the emergency circuit when its pin is pulled, activating the trailer brakes after separation.
⚠️ Common Signs of Failure
- Pin is seized or difficult to remove
- Cable is frayed, kinked or too short
- Switch housing is cracked or water-damaged
- Breakaway test does not activate the brakes
- Electrical terminals are corroded
🛠️ Installation & Safety
- Wire according to the actuator or breakaway-system instructions
- Mount so the cable pulls in a straight path
- Do not loop the tether around a safety chain
- Test the system and battery condition regularly
- Reinsert the pin before normal towing
📦 Condition
- Brand new Mackay trailer component
- Supplied as one breakaway switch with pull pin and cable
- Supplied in original or equivalent packaging
