06211-ZV4-505 Aftermarket Honda BF9.9A BF15A Service Kit | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Honda BF9.9A / BF15A Routine Service Kit - Kit Reference: 06211-ZV4-505

Comprehensive aftermarket routine-maintenance kit assembled for 9.9-15 HP Honda twin-cylinder carburetted four-stroke outboard applications. It combines the ignition, cooling, filtration and drain-sealing components listed below so the main scheduled-service items can be renewed together.

⚙️ Key Features

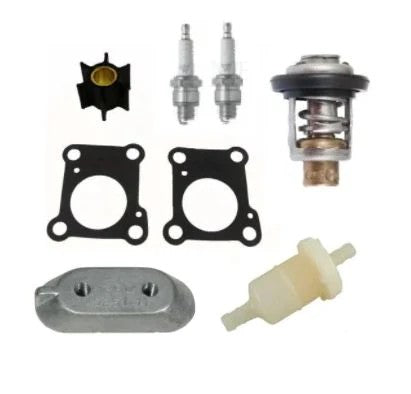

Kit contents:

• 1 × Water-pump impeller repair kit - Part Number: 06192-ZV4-000 (includes impeller 19210-ZV4-651, key 90752-ZV4-650 and pump gaskets 19232-ZV4-010 / 19232-ZV4-610)

• 1 × Thermostat - Part Number: 19300-881-761

• 2 × NGK spark plug - Part Number: DR6HS

• 1 × Inline fuel filter - Part Number: 16910-ZV4-015

• 1 × External sacrificial anode - Part Number: 41106-ZV4-650 (related later reference 41106-ZVA-000)

• 1 × Propeller cotter pin - Part Number: 90758-ZV1-000 (related 90758-ZV4-000)

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Honda 06211-ZV4-505 complete service-kit reference

• Thermostat gasket 19351-ZV4-610 is a related service item and is not listed as included

OEM / Related Numbers:

• 06211-ZV4-505

• 06192-ZV4-000

• 19300-881-761

• DR6HS

• 16910-ZV4-015

• 41106-ZV4-650

• 90758-ZV1-000

Aftermarket / Verified Equivalents:

• Recmar 06211-ZV4-505 replacement service kit

• NGK DR6HS spark plugs

🚤 Compatibility

Commonly used on:

• Honda BF9.9A and BF15A carburetted four-stroke outboards using the ZV4 service components listed above

Typically suits:

• HP Range: 9.9-15 HP

• Engine Type: Honda twin-cylinder carburetted four-stroke outboard

• Year / Serial Range: Early BF9.9A/BF15A model families; verify frame/model code because later BF9.9/BF15 platforms use different service parts

• Identification: Confirm the complete engine model and serial number before ordering, particularly where shaft length, gear ratio or gearcase family changes the water-pump components.

🔌 Function

Provides the principal routine-service components used to maintain correct ignition, fuel delivery, cooling-water flow and fluid sealing. Renewing these items at the proper service interval helps support reliable starting, stable running, normal operating temperature and protection against contaminated oil or water-pump failure.

Common signs service is required:

• Hard starting, misfire, poor idle or reduced throttle response

• Restricted fuel flow, dirty filters or fuel starvation under load

• Weak or intermittent tell-tale flow, rising temperature or an overheat warning

• Cracked, hardened or missing impeller vanes

• Oil or gear-lubricant leakage from deteriorated drain-plug seals

• Scheduled annual, 100-hour or storage-return maintenance interval reached

📦 Condition

• Brand-new aftermarket service kit

• Supplied as new replacement components

• Supplied in suitable retail or equivalent packaging
