HOT5 Aftermarket Yanmar 8LV Z-Series V-Drive Long Stainless Steel Dry Exhaust Elbow 119799-13350 | Sawley's Select Marine Parts

🔧 Product Description

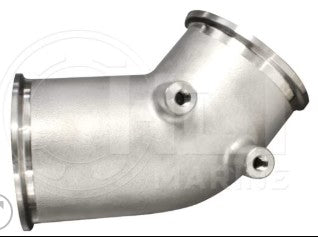

Aftermarket Yanmar 8LV Z-Series V-Drive Long Stainless Steel Dry Exhaust Elbow 119799-13350 - Part Number: HOT5

A long fabricated stainless-steel dry exhaust elbow for Yanmar 8LV Z-series V-drive engines. It replaces Yanmar 119799-13350 and 119799-13370 and routes turbo exhaust to the separate wet-mixing assembly.

⚙️ Key Features

• Long dry-exhaust elbow for V-drive installations

• Stainless-steel construction

• Replaces 119799-13350 and 119799-13370

• For 8LV320Z / 350Z / 370Z engines

• Designed for use ahead of the separate wet mixer

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• HOT5 → Replaces Yanmar 119799-13350 and 119799-13370

OEM / Related Numbers:

• HOT5

• 119799-13350

• 119799-13370

• 119779-13250 gasket family

Aftermarket / Verified Equivalents:

• HDI Marine: HOT5

🚤 Compatibility

Commonly used on:

• Yanmar 8LV Z-series V-drive dry-exhaust systems

Typically suits:

• Engine models:

• Yanmar 8LV320Z

• Yanmar 8LV350Z

• Yanmar 8LV370Z

• Flange Diameter: approximately 3.5 in / 89mm

• Construction: fabricated stainless steel

• Configuration: long V-drive dry elbow

🔌 Function

The dry elbow carries turbocharger exhaust through the V-drive installation before the gas reaches the separate water-injection mixer.

Common signs of failure:

• External corrosion, cracking or pin-hole leakage

• Internal carbon, rust or salt restriction

• Cooling water entering the manifold, turbocharger or cylinders

• Steam, reduced cooling-water discharge or an abnormally hot exhaust hose

• Loss of power caused by excessive exhaust back-pressure

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
