JO6HD Aftermarket Marine Heavy-Duty Sterndrive Installer | Sawley's Select Marine Parts

🔧 Product Description

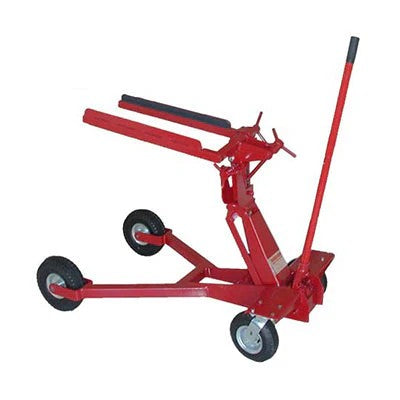

Heavy-duty wheeled hydraulic installer designed to allow one technician to remove, support, manoeuvre and reinstall marine sterndrives. The JO6HD configuration uses a wide stable chassis, four flat-free tyres and adjustable support arms to accommodate a broad range of drive housings.

It is especially useful for Alpha, Bravo, Volvo Penta, OMC and similar drives that are awkward and unsafe to handle manually.

⚙️ Key Features

• Rated capacity approximately 500lb / 225kg

• Adjustable fork spacing of approximately 6-12.5 inches

• Working fork height approximately 19-33 inches before optional lift kits

• Four flat-free tyres suit workshop floors and firmer outdoor surfaces

• Multi-axis adjustment helps align the drive shaft, studs and bell housing

📋 Kit Contents

• 1 × Heavy-duty wheeled installer chassis - JO6HD / RECJO6HD family

• 1 × Hydraulic lifting cylinder/jack assembly

• 1 × Adjustable drive-support arm/fork assembly

• 4 × Flat-free wheels

• 1 × Operating handle, where included in the manufacturer package

🔄 Supersession & Cross Reference

• Yardarm reference: JO6HD

• Recmar equivalent: RECJO6HD

• Related Recmar replacement cylinder: RECKOCYL

• Related Recmar rear wheel: RECKRW

• Related Recmar front/jack wheel: RECKFW

• Related height accessory: RECJO10

• Yardarm accessories: JO-LK-5, JO-LK-10, JO-LK-15 and SD6AP

🚤 Compatibility

• Most common MerCruiser, Volvo Penta, OMC, Yamaha and other sterndrive housings within capacity

• Suitable for drive removal, installation, transport and supported service

• Drive must be securely clamped and balanced before moving

• Not an engine crane or overhead lifting appliance

🔌 Function

Supports the sterndrive at the correct height and angle while it is separated from or aligned with the transom assembly. Fine adjustment reduces manual lifting, helps protect input-shaft splines and makes one-person drive installation substantially safer.

📦 Condition

• Brand-new aftermarket heavy-duty installer

• Assembly and final fastener checks required before use

• Observe the 500lb/225kg load limit and use on a stable surface
