Johnson 150hp Carburettor and Reed Plate Assembly | Genuine Used Part

🔧 Product Description

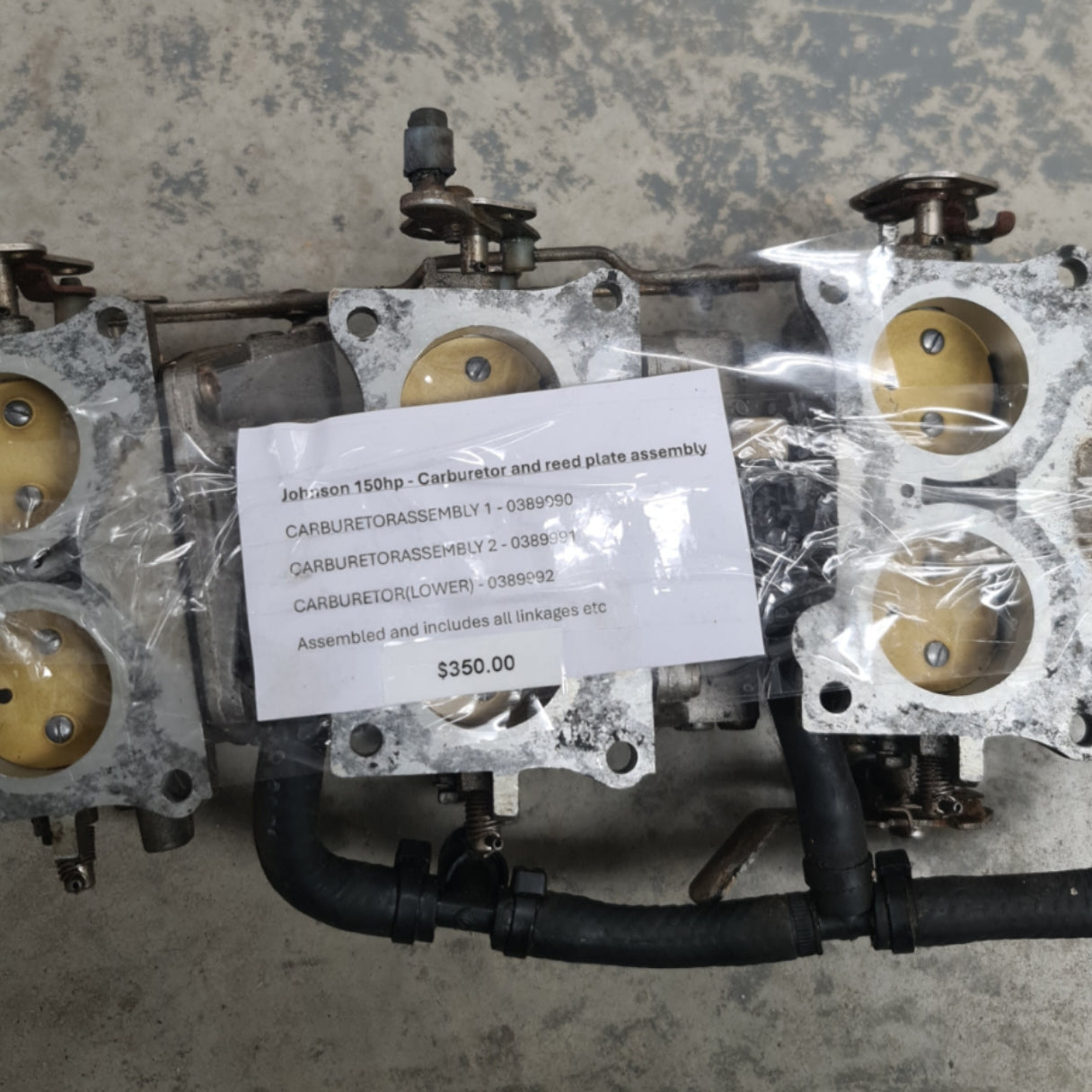

Genuine OMC Johnson Evinrude 150HP Three-Carburettor and Reed Plate Assembly - Part Numbers: 0389990, 0389991 & 0389992

A genuine used matched carburettor assembly for 1979 Johnson and Evinrude 150HP V6 crossflow outboard motors.

This complete assembly comprises the dedicated upper, middle and lower two-barrel carburettors supplied together on the associated intake and reed plate assembly. Each carburettor is calibrated for its specific position and should remain installed in the correct upper, middle or lower location.

Supplying the three carburettors together helps retain matching throttle-shaft geometry, choke linkage, jetting and fuel delivery across all six cylinders.

⚙️ Key Features

• Genuine OMC Johnson / Evinrude matched three-carburettor assembly
• Includes upper carburettor 0389990
• Includes middle carburettor 0389991
• Includes lower carburettor 0389992
• Specifically calibrated for 1979 150HP V6 crossflow engines

🚤 Compatibility

Commonly used on

• 1979 OMC Johnson and Evinrude 150HP V6 crossflow outboards
• Three-carburettor intake and reed plate assemblies
• Six-cylinder carburetted two-stroke fuel-induction systems

Typically suits

• Engine models:
• 1979 Johnson 150HP - 150TL79C
• 1979 Johnson 150HP - 150TXL79C
• 1979 Evinrude 150HP - 150940C
• 1979 Evinrude 150HP - 150949C
• HP Range: 150HP
• Engine Type: OMC Johnson / Evinrude 90-degree V6 crossflow two-stroke outboard
• Induction Type: Three two-barrel carburettors with reed-valve crankcase induction
• Year Range: 1979

🔌 Function

The three carburettors meter and distribute the correct fuel-and-air mixture to the six engine cylinders. The upper, middle and lower carburettors work together through a synchronised throttle and choke linkage to provide consistent idle, acceleration and wide-open-throttle operation.

The reed plate assembly controls the direction of the incoming fuel-and-air charge, allowing the mixture to enter the crankcase while preventing reverse flow back through the carburettors.

⚠️ Common Signs of Failure

• Hard starting when cold or hot
• Uneven, rough or unstable idle
• Engine sneezes or backfires through the carburettors
• Hesitation or bogging during acceleration
• One or more cylinders operate lean or receive insufficient fuel
• Fuel leaks or flooding occur around a float bowl
• Engine will not reach full rated RPM
• Spark plugs show inconsistent colour between cylinders
• Choke or throttle linkage does not move all three carburettors evenly
• Damaged reed valves cause poor crankcase filling and fuel misting from the carburettor throat

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0389990 original upper 150HP carburettor assembly reference
• 0389991 original middle 150HP carburettor assembly reference
• 0389992 original lower 150HP carburettor assembly reference

Related Carburettor Repair Kit Chain

• 0439076 → Supersedes 0434888
• 0434888 → Supersedes 0398526
• 0398526 → Supersedes 0392550
• 0392550 → Supersedes 0390241
• 0390241 earlier OEM carburettor repair-kit reference

OEM / Related Numbers

• 0389990
• 389990
• 0389991
• 389991
• 0389992
• 389992
• 0439076 carburettor repair kit with float
• 439076
• 0777718
• 777718
• 0396520 float valve and seat assembly
• 0383437 float and arm assembly
• 0338884 float-bowl gasket
• 0315052 carburettor mounting gasket
• 0322776 No. 29 idle orifice for 150HP application
• 0323938 No. 51C high-speed orifice plug for 150HP application

Aftermarket / Verified Equivalents

• Sierra: 18-7046 - carburettor repair kit; one kit required per carburettor
• GLM: 40570 - carburettor repair kit
• Mallory: 9-37100 - carburettor repair kit
• Recmar: REC439076 - carburettor repair kit
• EMP: 1300-01895 - carburettor repair kit
• Red Rhino: JE-C76 - carburettor repair kit
• Sierra: 18-7038 - replacement needle and seat assembly
• No aftermarket equivalent for the complete matched three-carburettor assembly

📦 Condition

• Genuine used part
• Supplied as one matched upper, middle and lower carburettor assembly
• Removed from running engine where applicable
• In good working condition unless otherwise stated
