🔧 Product Description

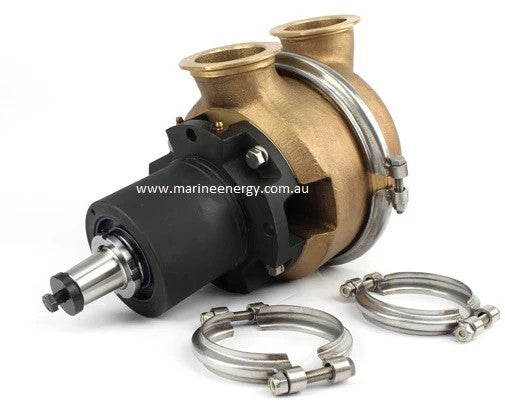

Aftermarket replacement K38/K50 Vertical Seawater Pump - Part Number: JPR-C3800V

New aftermarket engine-cooling seawater pump for Cummins K38 and KTA38 marine engines, Cummins K50 and KTA50 marine engines. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Both supplied listings represent the same JPR-C3800V family with different Cummins reference numbers.

⚙️ Key Features

• Direct aftermarket replacement for JPR-C3800V

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Engine-driven vertical pump

• Port configuration: Large flange-port vertical pump

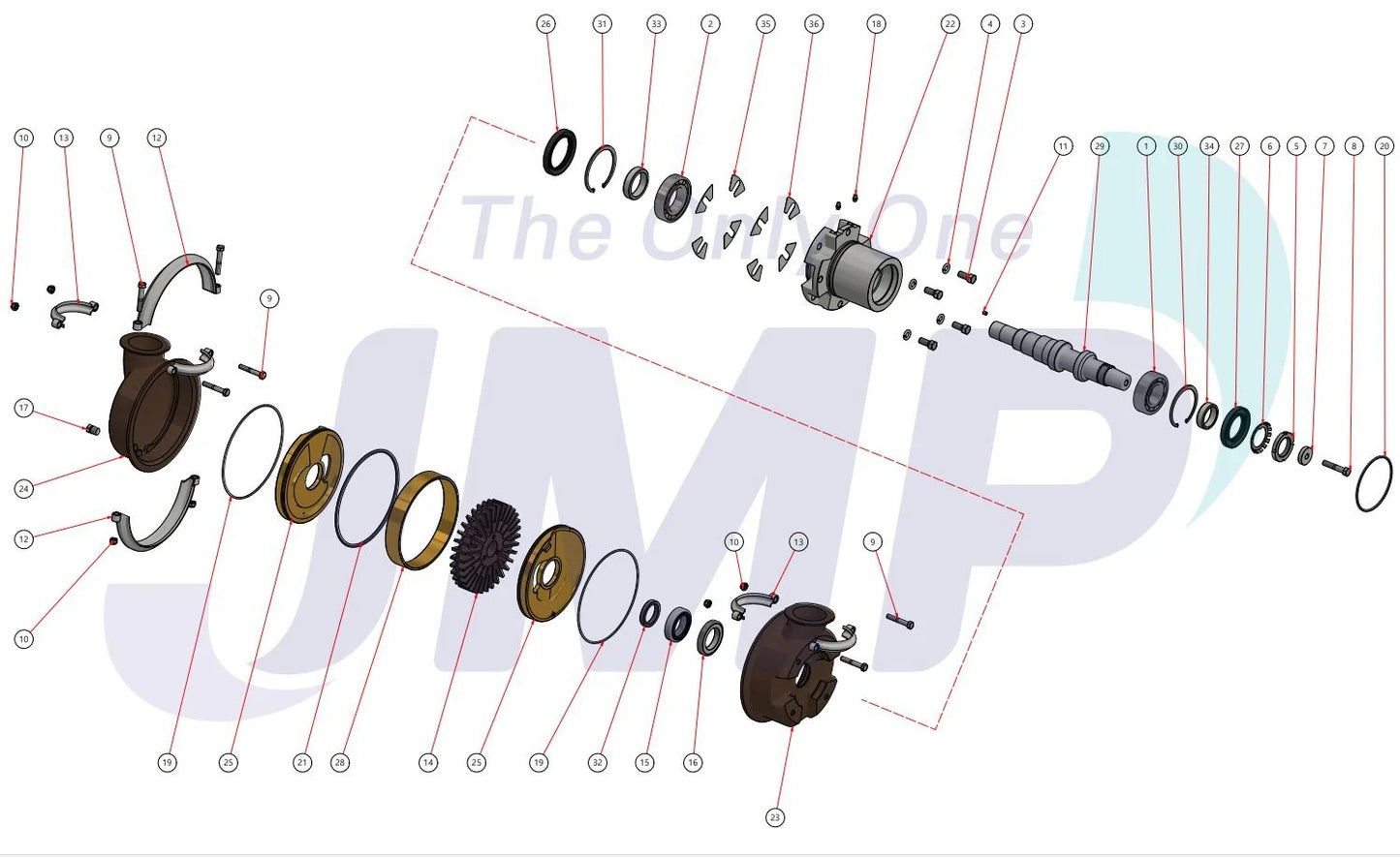

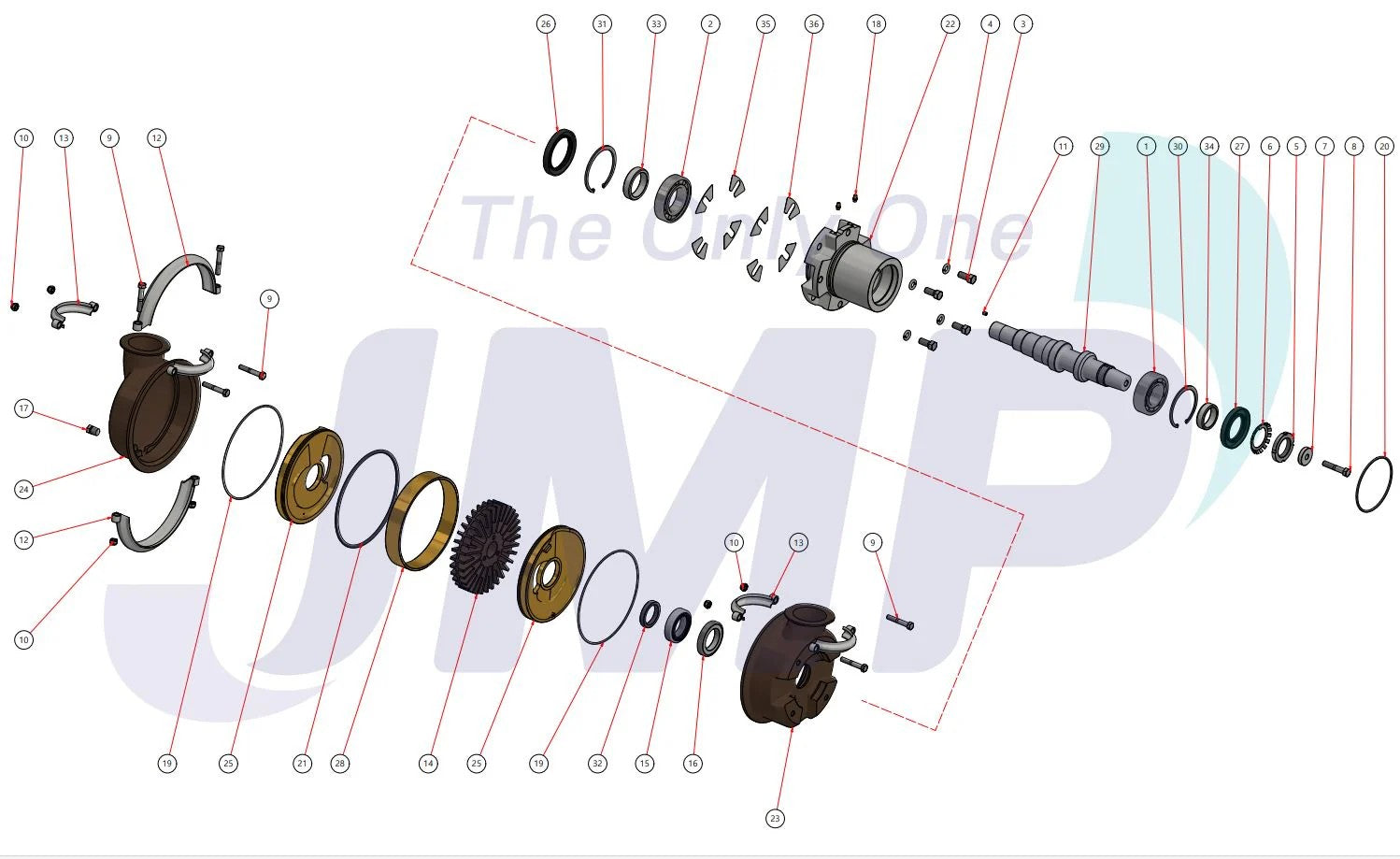

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-C3800V

• 1 × Installed impeller - Large flexible impeller for the 15780-series pump

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Confirm drive, mounting flange and pump rotation

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-C3800V → Replaces / cross-references 3049157

• JPR-C3800V → Replaces / cross-references 4314820

OEM / Related Numbers:

• 3049157

• 4314820

Aftermarket / Verified Equivalents:

• Jabsco: 15780-0000

• JMP Marine: JPR-C3800V

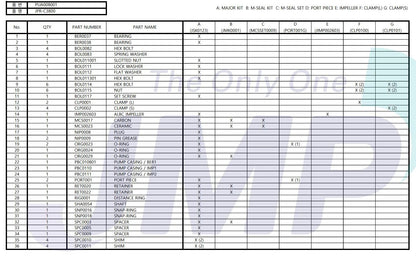

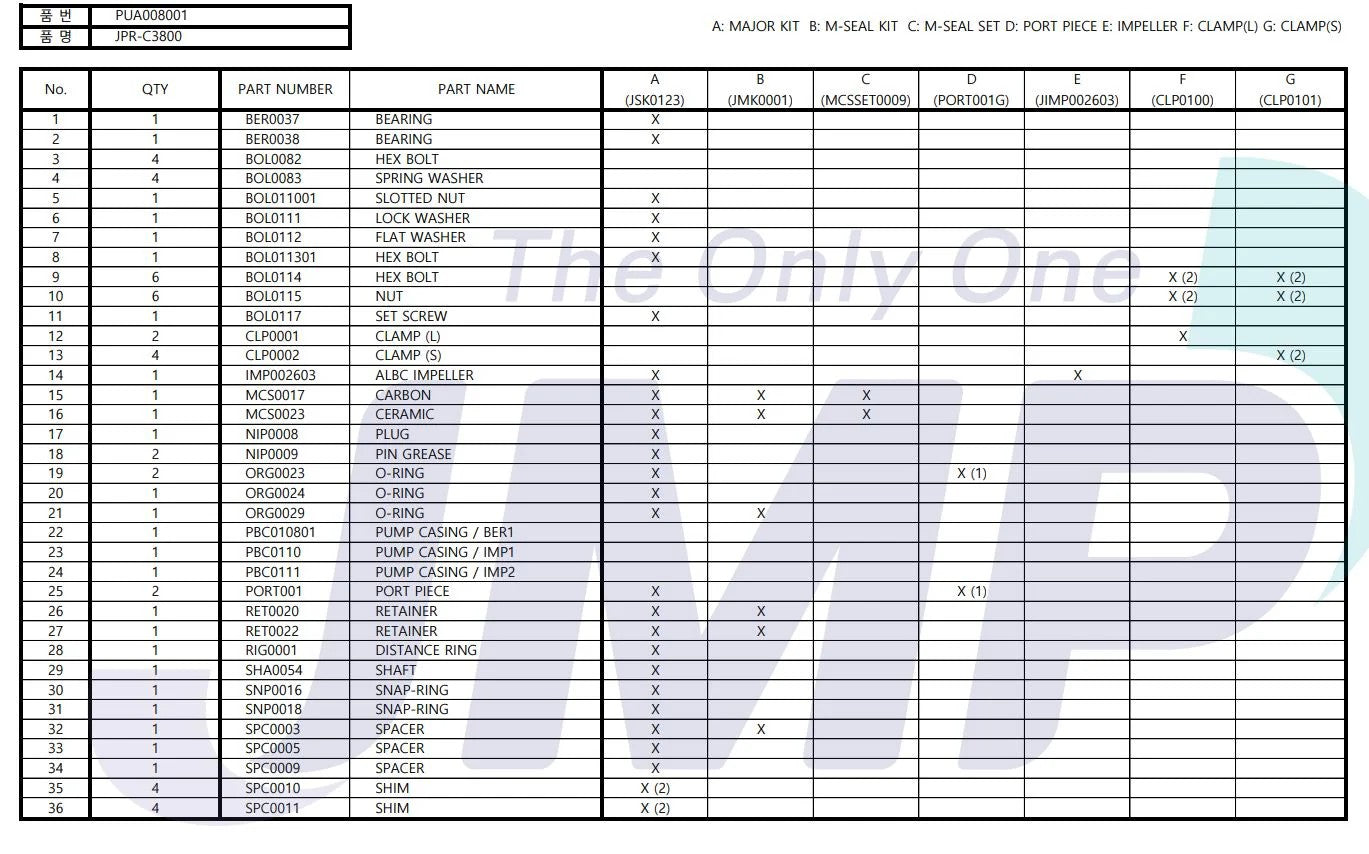

Service Parts / Kits:

• JMP major/minor service parts for JPR-C3800V

🚤 Compatibility

Commonly used on:

• JMP Marine / Cummins / Jabsco marine engine-cooling systems

Typically suits:

• Engine models:

• Cummins K38 and KTA38 marine engines

• Cummins K50 and KTA50 marine engines

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

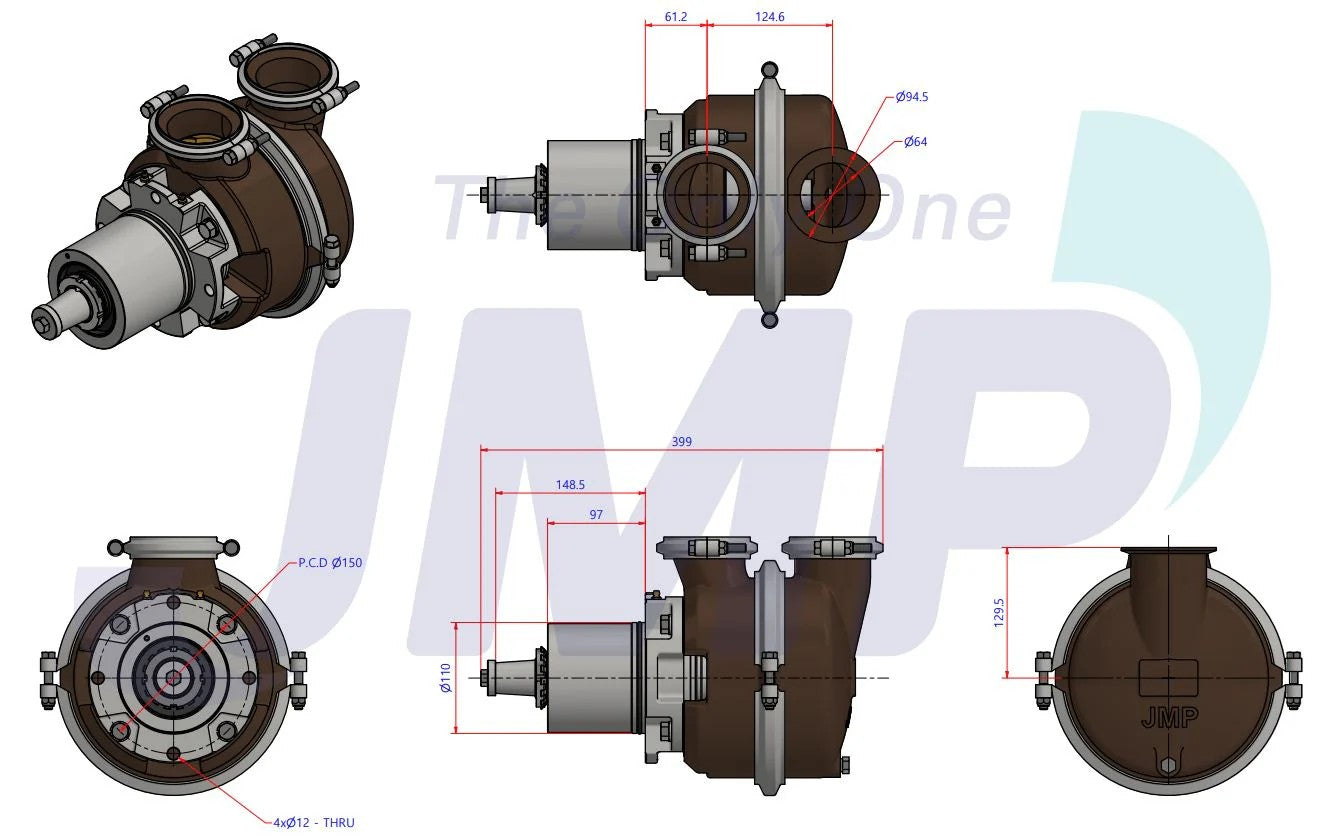

• Port / Drive Identification: Large flange-port vertical pump; Engine-driven vertical pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
