JPR-G6200 Aftermarket Detroit Diesel 6-71TI/8V71/12V71 Seawater Pump | Sawley's Select Marine Parts

🔧 Product Description

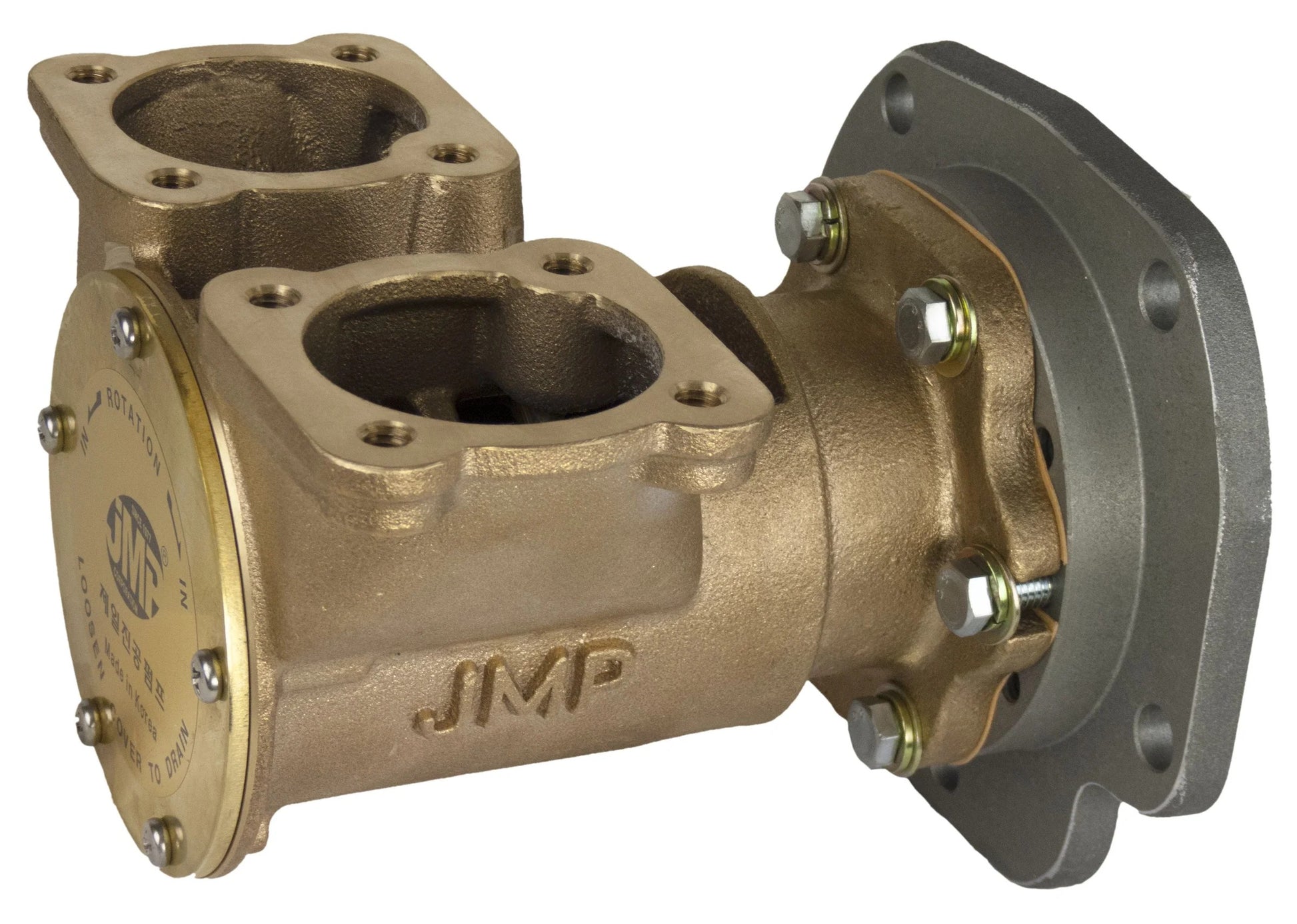

Aftermarket replacement 6-71TI/8V71/12V71 Seawater Pump - Part Number: JPR-G6200

New aftermarket engine-cooling seawater pump for Detroit Diesel 6-71TI, Detroit Diesel 8V71, Detroit Diesel 12V71. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Engine model, rotation and port orientation must match the original.

⚙️ Key Features

• Direct aftermarket replacement for JPR-G6200

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Gear-driven pump

• Port configuration: Large Detroit Diesel flange connections

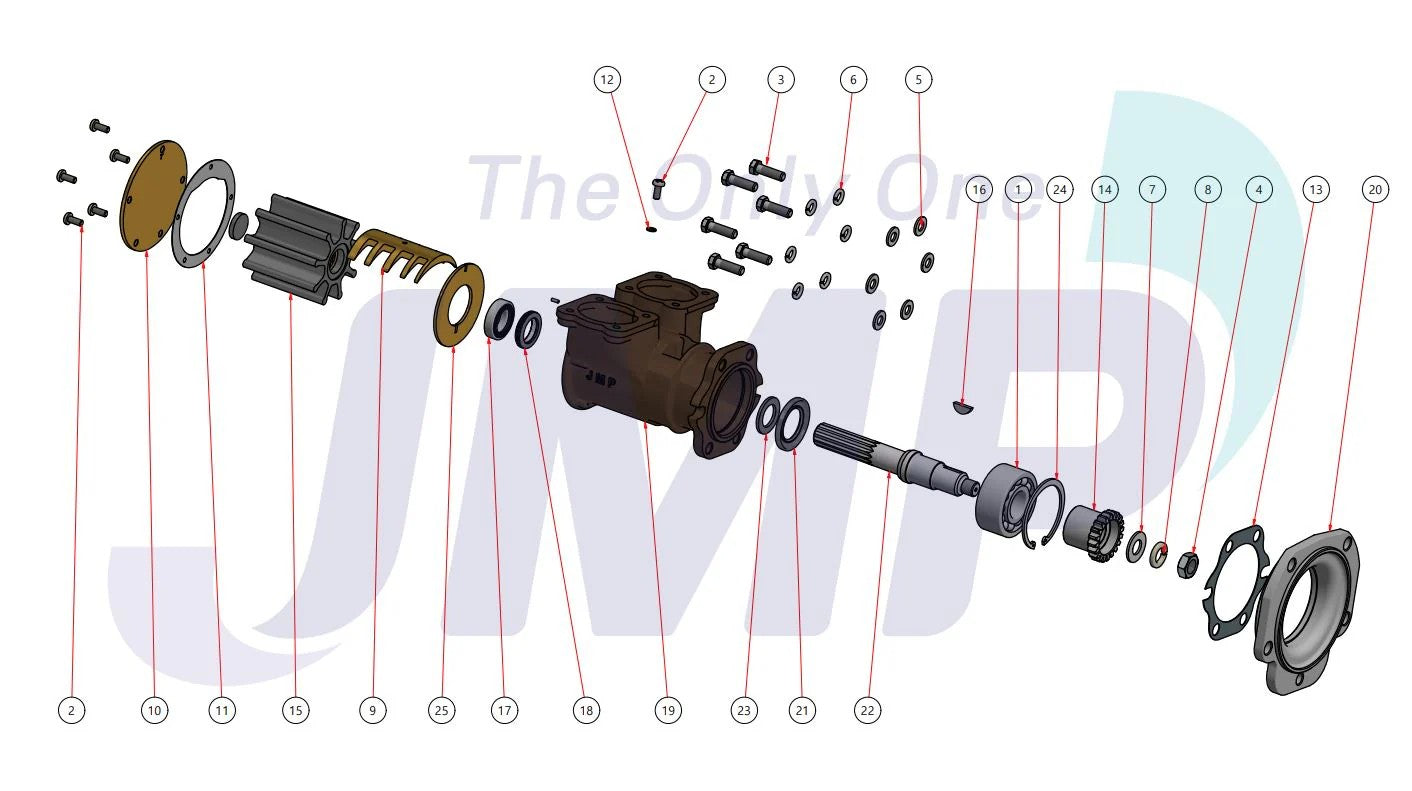

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-G6200

• 1 × Installed impeller - Installed heavy-duty flexible impeller

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Confirm drive gear and pump rotation

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-G6200 → Replaces / cross-references Detroit Diesel G6200 replacement-pump family

OEM / Related Numbers:

• Detroit Diesel G6200 replacement-pump family

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-G6200

Service Parts / Kits:

• JMP major/minor service kits matched to JPR-G6200

🚤 Compatibility

Commonly used on:

• JMP Marine / Detroit Diesel / Jabsco marine engine-cooling systems

Typically suits:

• Engine models:

• Detroit Diesel 6-71TI

• Detroit Diesel 8V71

• Detroit Diesel 12V71

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: Large Detroit Diesel flange connections; Gear-driven pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
