JPR-G6300 Aftermarket Detroit Diesel 8V92TA/16V92TA Seawater Pump | Sawley's Select Marine Parts

🔧 Product Description

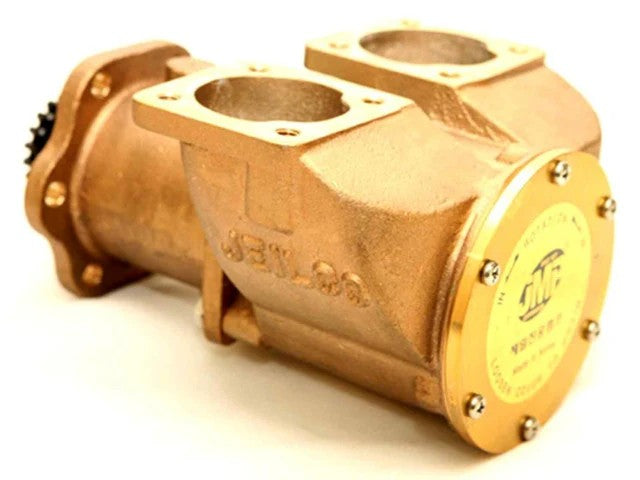

Aftermarket replacement 8V92TA/16V92TA Seawater Pump - Part Number: JPR-G6300

New aftermarket engine-cooling seawater pump for Detroit Diesel 8V92TA, Detroit Diesel 16V92TA. It replaces the listed OEM pump family and is supplied as a complete assembled pump. JPR-G6300 shares a service-kit family with JPR-CT3530 but fitment is engine-specific.

⚙️ Key Features

• Direct aftermarket replacement for JPR-G6300

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Gear-driven pump

• Port configuration: Large Series 92 engine ports

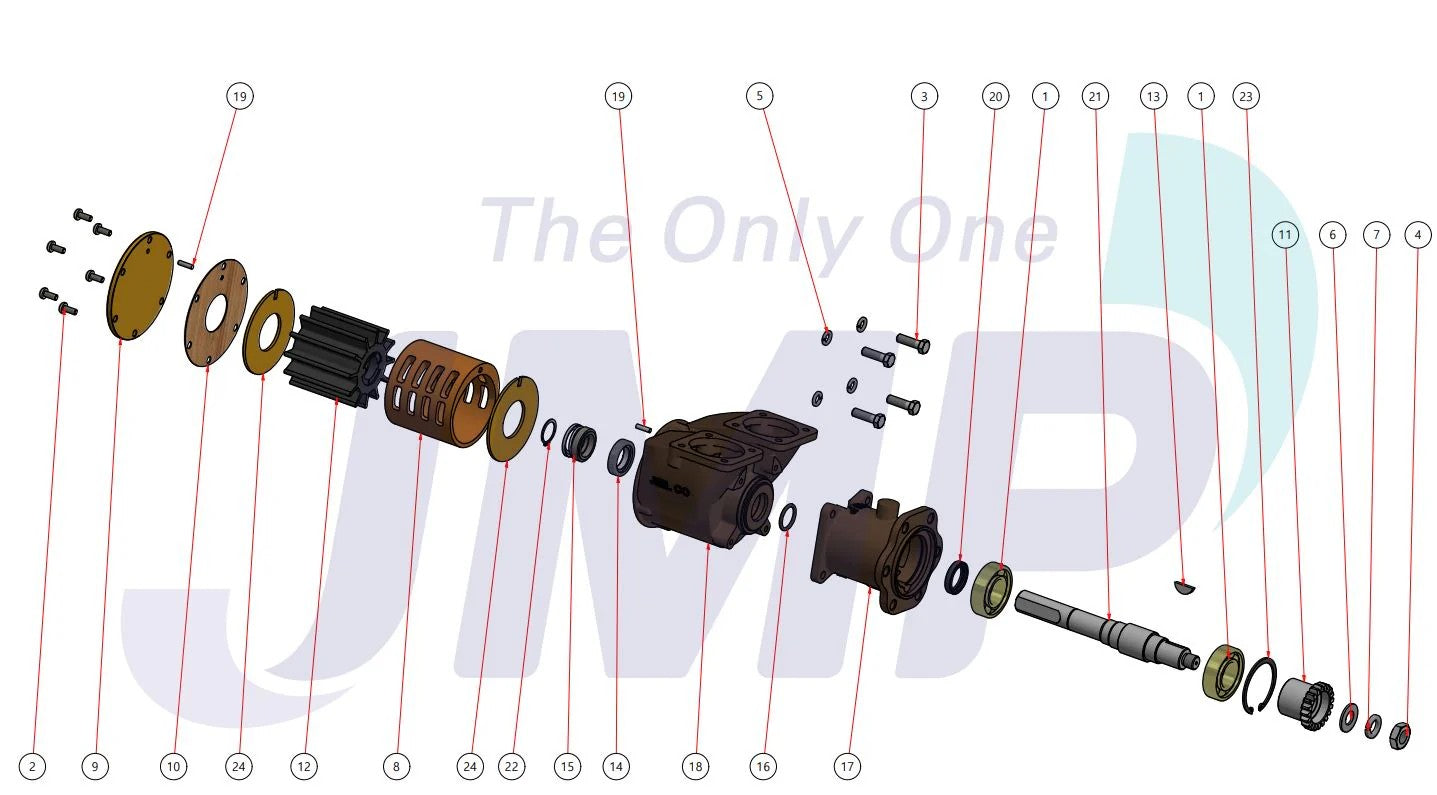

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-G6300

• 1 × Installed impeller - JMP 8300-01K family

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Confirm drive gear and rotation

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-G6300 → Replaces / cross-references 23507973

• JPR-G6300 → Replaces / cross-references 23507475

• JPR-G6300 → Replaces / cross-references 23507476

• JPR-G6300 → Replaces / cross-references 23507477

• JPR-G6300 → Replaces / cross-references 8923363

OEM / Related Numbers:

• 23507973

• 23507475

• 23507476

• 23507477

• 8923363

Aftermarket / Verified Equivalents:

• Jabsco: 18760-0001

• Jabsco: 17360-1001 family on specified arrangements

• JMP Marine: JPR-G6300

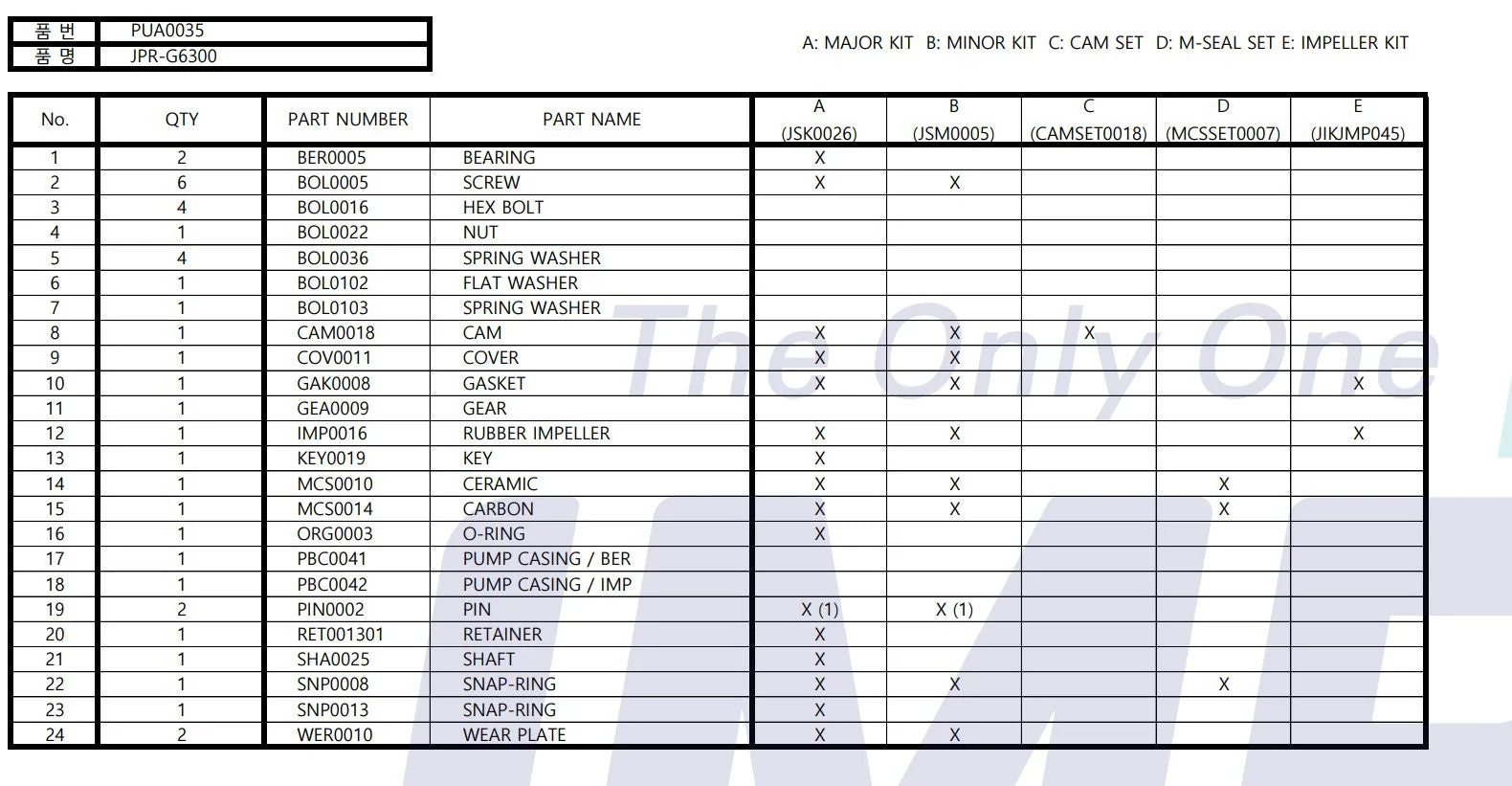

Service Parts / Kits:

• Major service kit: JMP JSK0026

🚤 Compatibility

Commonly used on:

• JMP Marine / Detroit Diesel / Jabsco marine engine-cooling systems

Typically suits:

• Engine models:

• Detroit Diesel 8V92TA

• Detroit Diesel 16V92TA

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

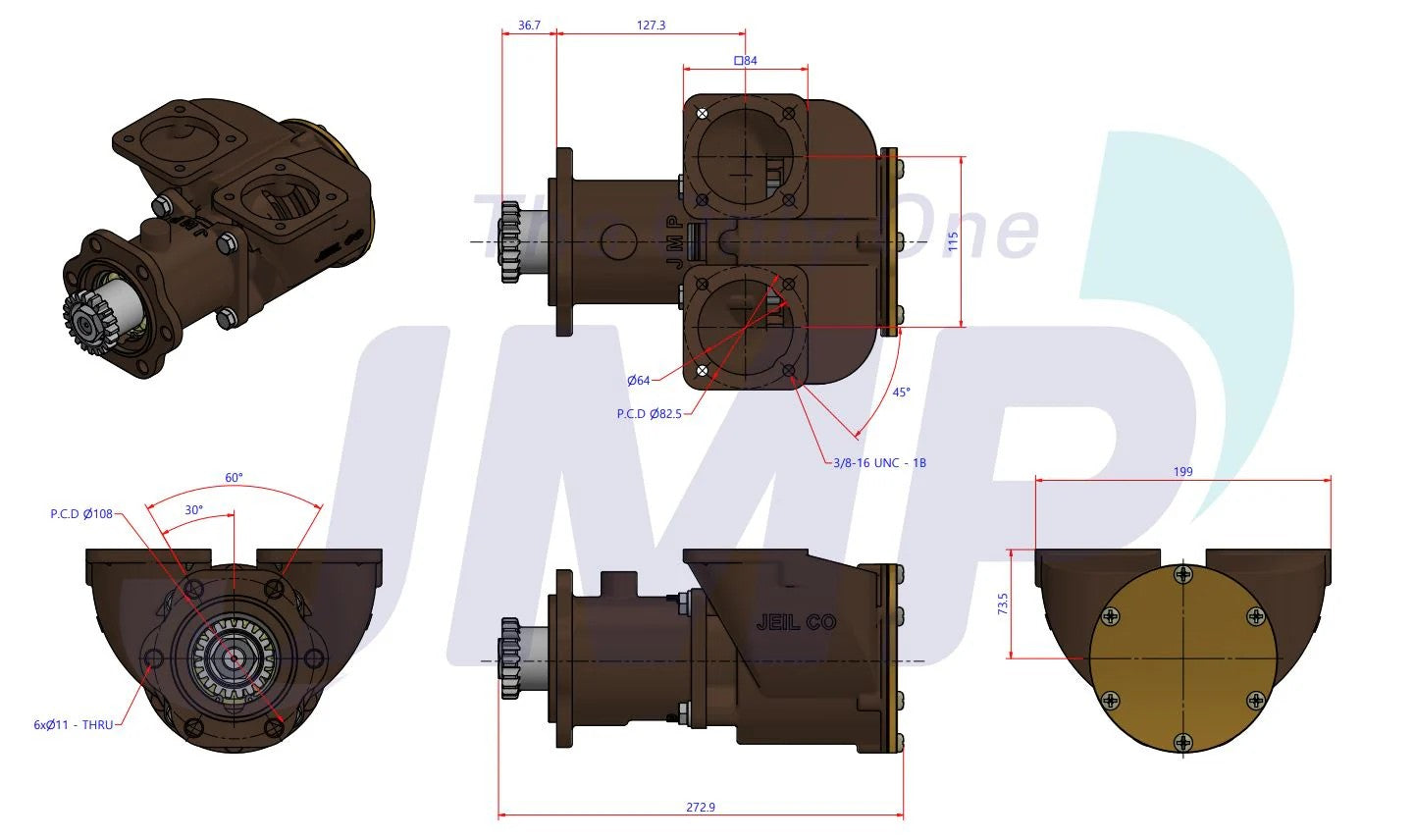

• Port / Drive Identification: Large Series 92 engine ports; Gear-driven pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
