JPR-G6500 Aftermarket MTU Detroit Diesel Series 60 Seawater Pump 23535447, 23525200 | Sawley's Select Marine Parts

🔧 Product Description

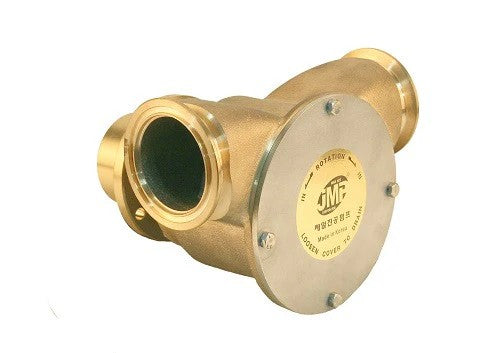

Aftermarket replacement Series 60 Seawater Pump - Part Number: JPR-G6500

New aftermarket engine-cooling seawater pump for Detroit Diesel / MTU Series 60 marine engines. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Confirm Series 60 pump number and flange orientation.

⚙️ Key Features

• Direct aftermarket replacement for JPR-G6500

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Engine-driven heavy-duty pump

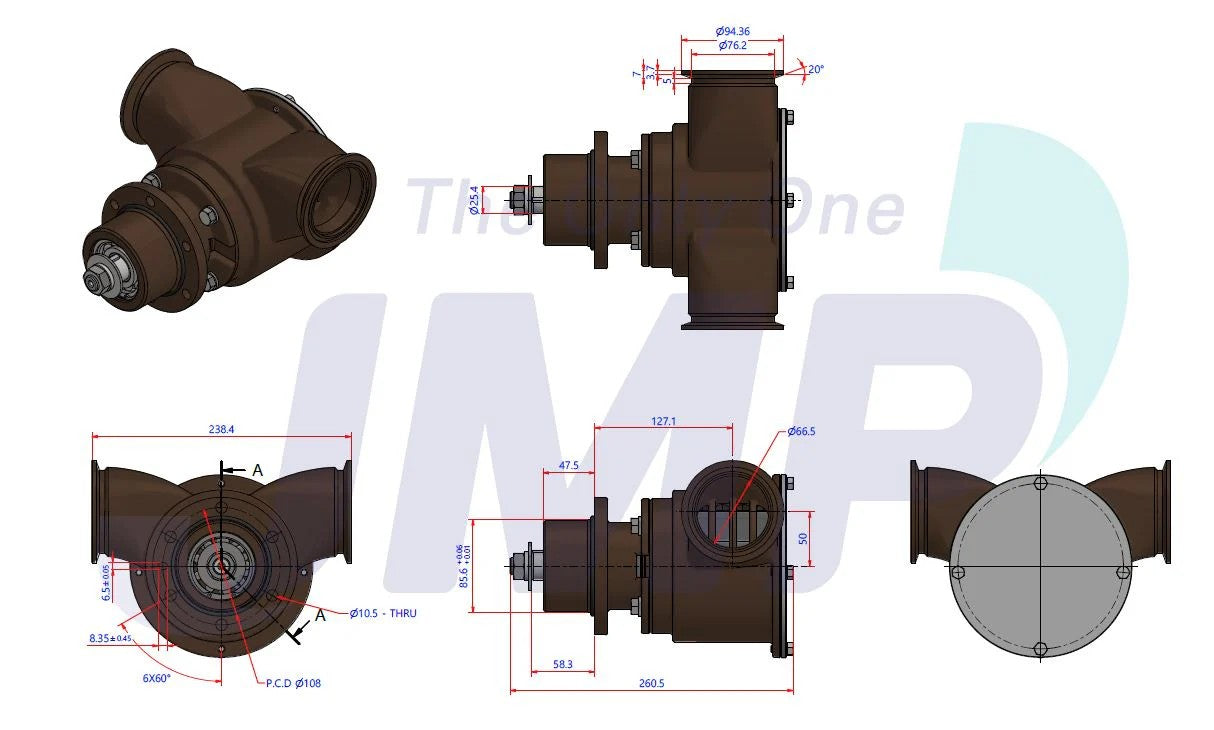

• Port configuration: 2-inch flange ports

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

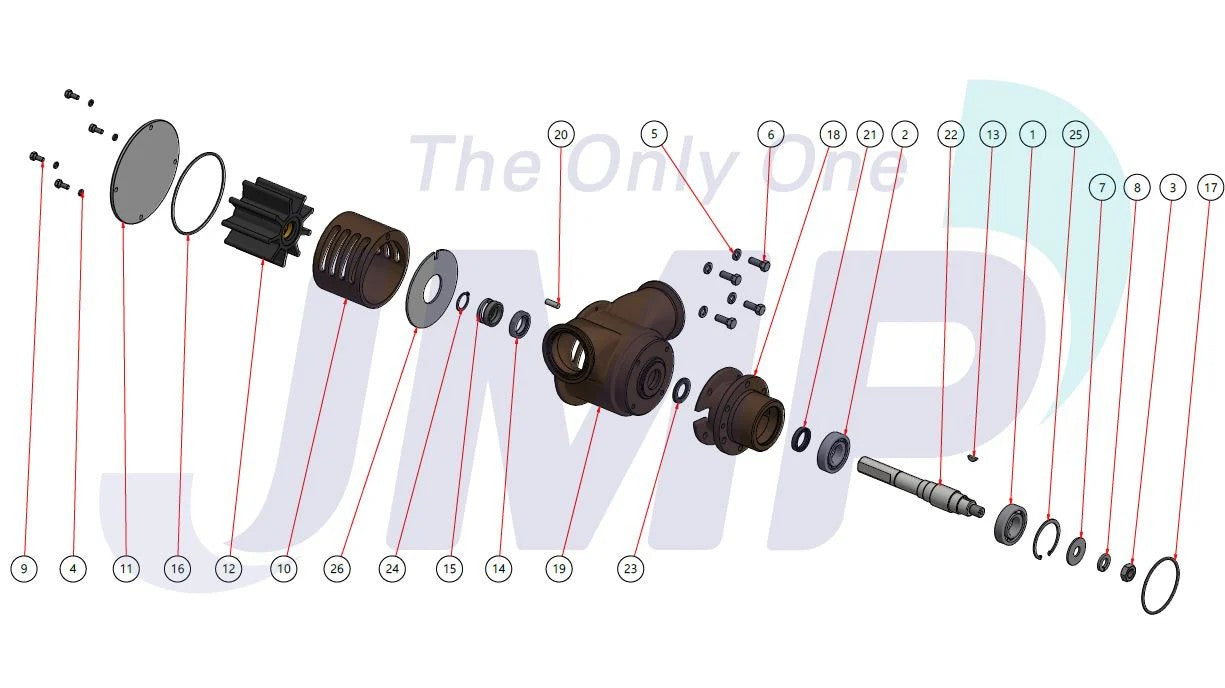

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-G6500

• 1 × Installed impeller - JMP 9000-01K

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Complete pump supplied assembled

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-G6500 → Replaces / cross-references 23525200

• JPR-G6500 → Replaces / cross-references 23522735

• JPR-G6500 → Replaces / cross-references 23535447

• JPR-G6500 → Replaces / cross-references 2352353

• JPR-G6500 → Replaces / cross-references 2352078

OEM / Related Numbers:

• 23525200

• 23522735

• 23535447

• 2352353

• 2352078

Aftermarket / Verified Equivalents:

• Jabsco: 17540-0001

• Jabsco: 17540-0201

• JMP Marine: JPR-G6500

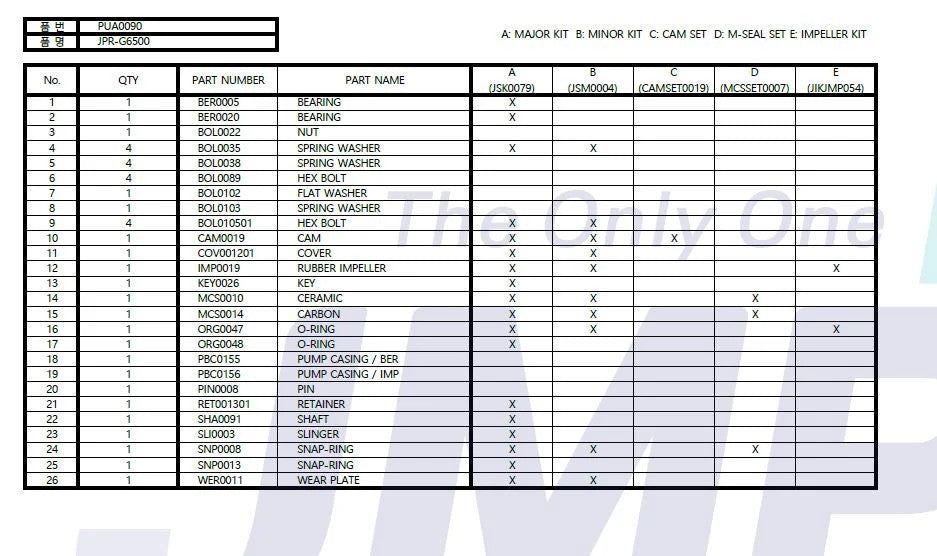

Service Parts / Kits:

• Major service kit: JMP JSK0079

• Minor service kit: JMP JSM0004

🚤 Compatibility

Commonly used on:

• JMP Marine / MTU Detroit Diesel / Jabsco marine engine-cooling systems

Typically suits:

• Engine models:

• Detroit Diesel / MTU Series 60 marine engines

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: 2-inch flange ports; Engine-driven heavy-duty pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
