JPR-JD50LF Aftermarket John Deere 6125A/H Seawater Pump | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement 6125A/6125H Seawater Pump - Part Number: JPR-JD50LF

New aftermarket engine-cooling seawater pump for John Deere 6125A, John Deere 6125H, Dong-A 6125-series marine engines using this pump. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Confirm JPR-JD50LF rather than the Nanni-specific JPR-JD50LF2.

⚙️ Key Features

• Direct aftermarket replacement for JPR-JD50LF

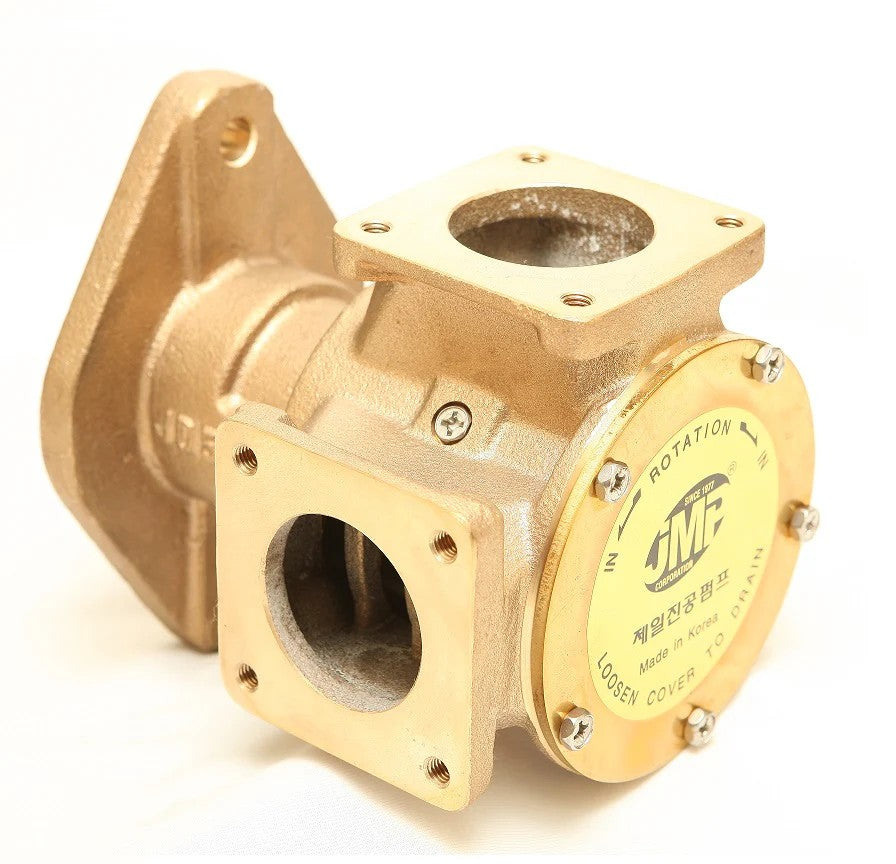

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Engine-driven pump without elbow

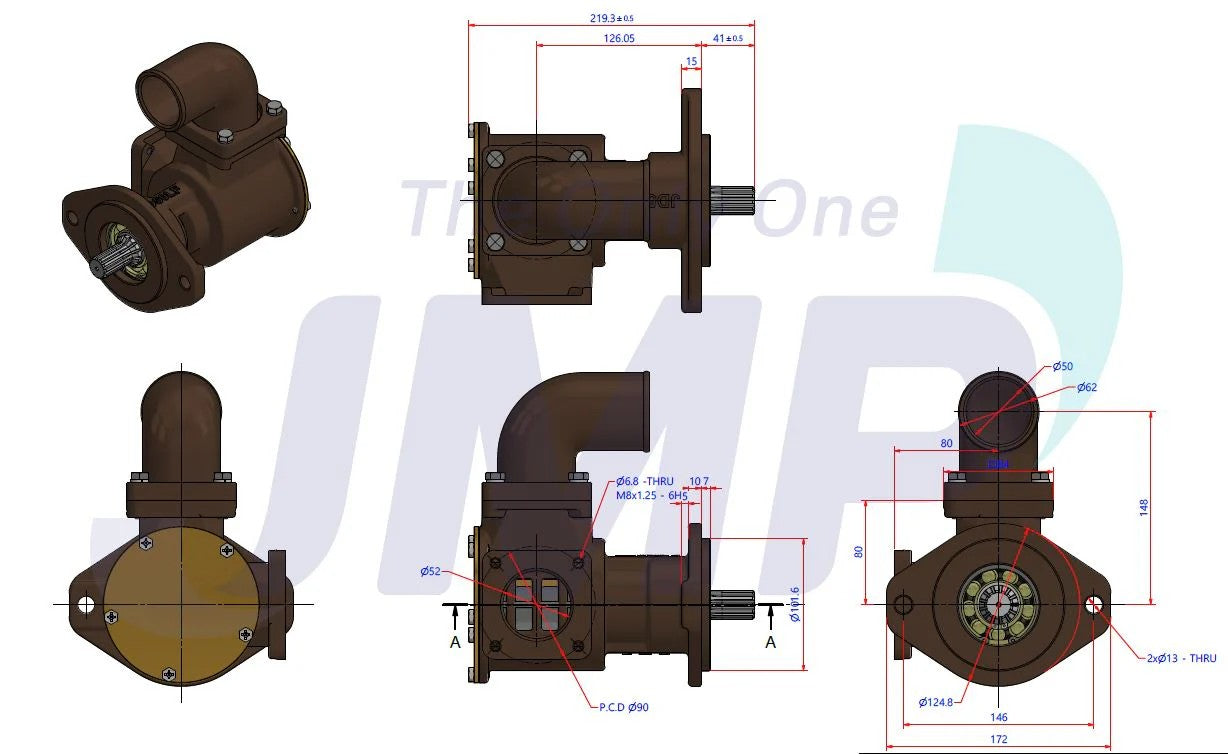

• Port configuration: 2-inch flange ports

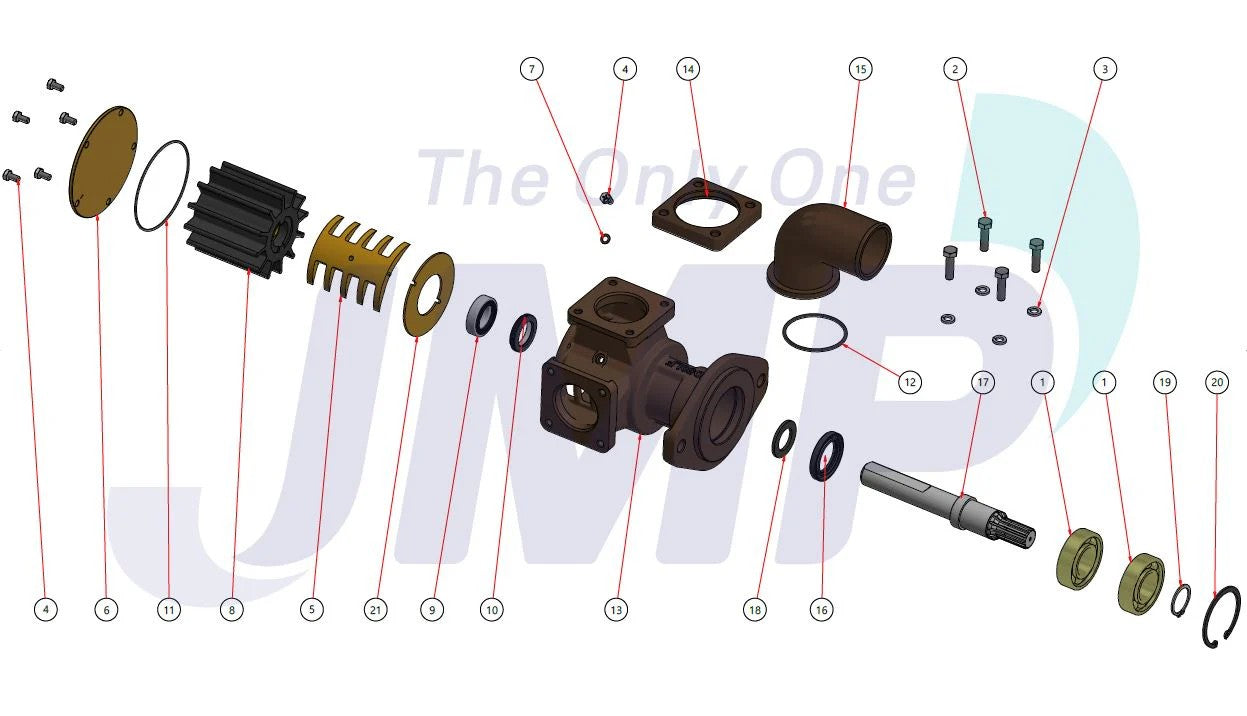

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

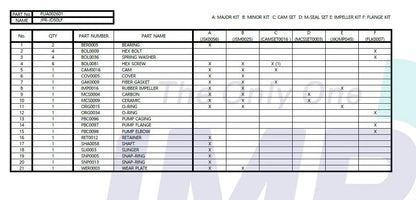

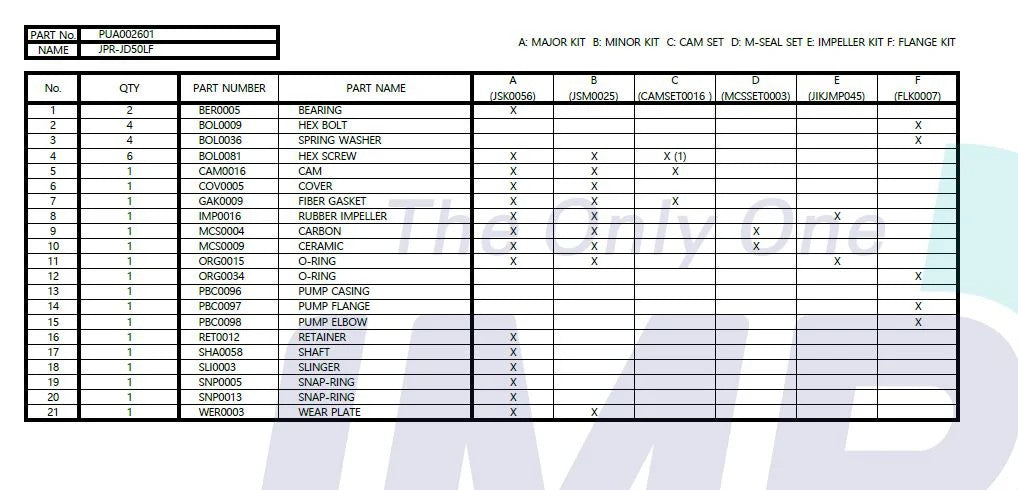

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-JD50LF

• 1 × Installed impeller - JMP 8300-01K

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Elbow and external fittings are not included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-JD50LF → Replaces / cross-references RE45458

OEM / Related Numbers:

• RE45458

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-JD50LF

Service Parts / Kits:

• Major service kit: JMP JSK0056

🚤 Compatibility

Commonly used on:

• JMP Marine / John Deere marine engine-cooling systems

Typically suits:

• Engine models:

• John Deere 6125A

• John Deere 6125H

• Dong-A 6125-series marine engines using this pump

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: 2-inch flange ports; Engine-driven pump without elbow. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
