JPR-ON7002 Aftermarket Onan MDKBH/MDKAU/MGKBC Seawater Pump 132-0430, Sherwood G8002 | Sawley's Select Marine Parts

🔧 Product Description

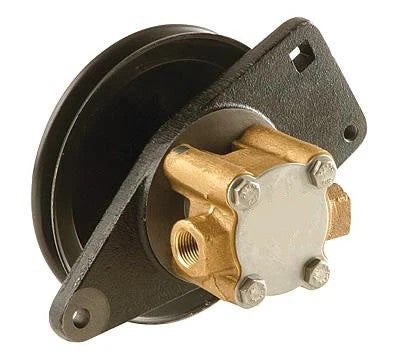

Aftermarket replacement G8002 Generator Seawater Pump - Part Number: JPR-ON7002

New aftermarket engine-cooling seawater pump for Onan MDKBH, MDKBJ and MDKBW, Onan MDKAU, Onan MGKBC and related generator models using 132-0430. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Confirm G8002 pump and pulley alignment.

⚙️ Key Features

• Direct aftermarket replacement for JPR-ON7002

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Pulley-driven generator seawater pump

• Port configuration: Generator-engine hose ports

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

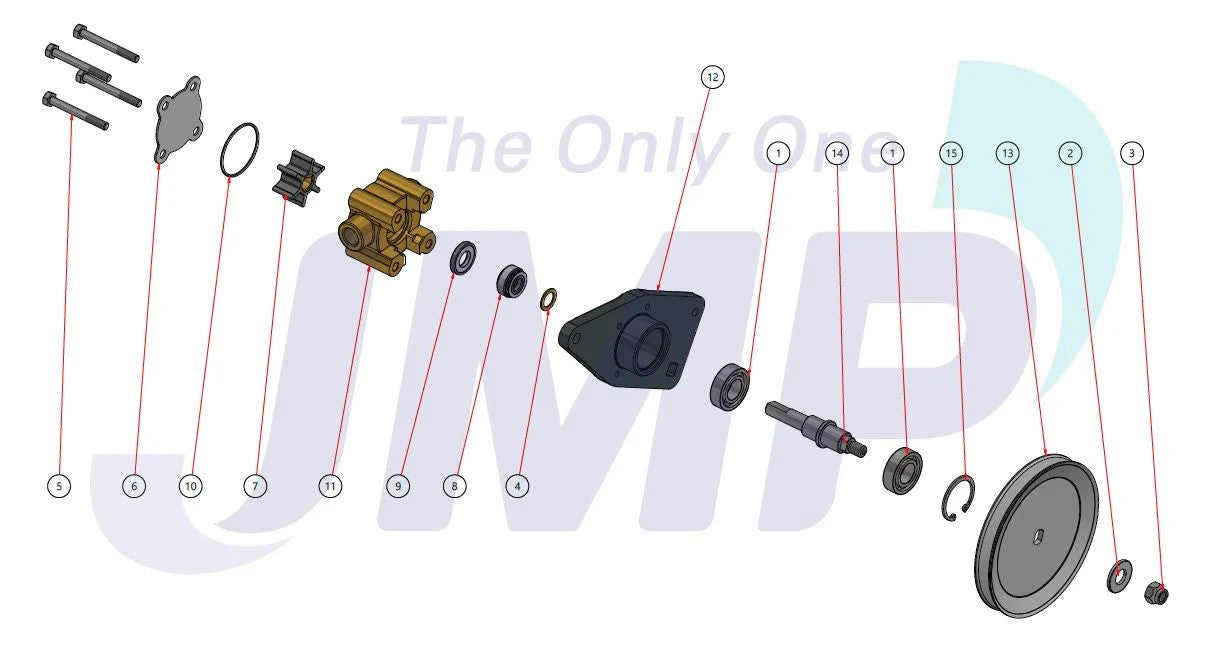

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-ON7002

• 1 × Installed impeller - JMP 7013-01K

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Complete pump supplied with pulley; mounting gasket serviced separately unless included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-ON7002 → Replaces / cross-references 132-0430

• JPR-ON7002 → Replaces / cross-references 132-0395

OEM / Related Numbers:

• 132-0430

• 132-0395

Aftermarket / Verified Equivalents:

• Sherwood: G8002

• JMP Marine: JPR-ON7002

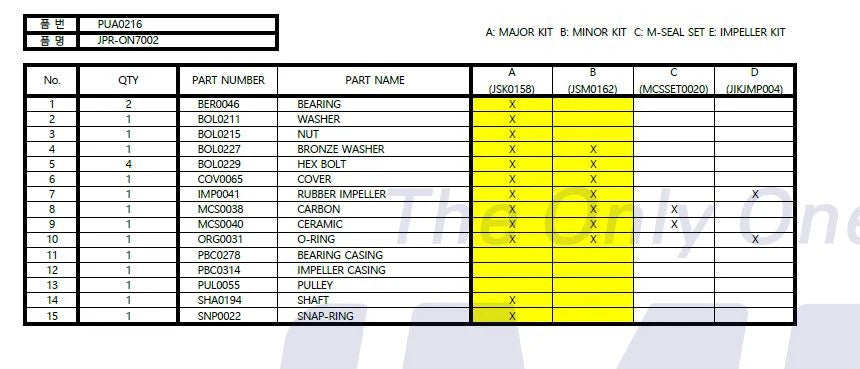

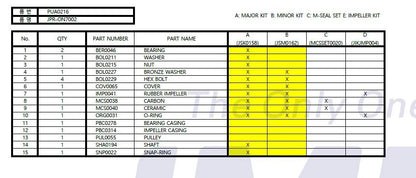

Service Parts / Kits:

• Major service kit: JMP JSK0158

• Minor service kit: JMP JSM0162

🚤 Compatibility

Commonly used on:

• JMP Marine / Cummins Onan marine engine-cooling systems

Typically suits:

• Engine models:

• Onan MDKBH, MDKBJ and MDKBW

• Onan MDKAU

• Onan MGKBC and related generator models using 132-0430

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: Generator-engine hose ports; Pulley-driven generator seawater pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
