🔧 Product Description

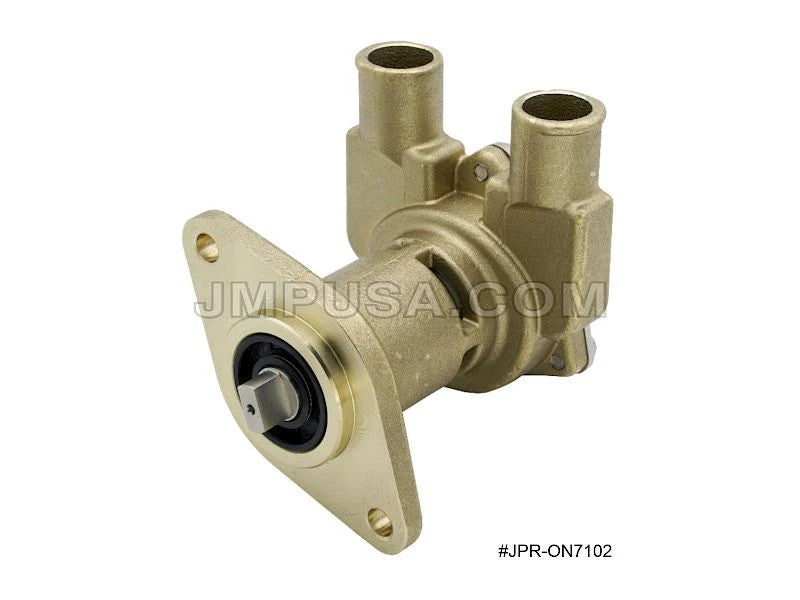

Aftermarket replacement G702 Generator Seawater Pump - Part Number: JPR-ON7102

New aftermarket engine-cooling seawater pump for Onan MDKBK, MDKBL, MDKBM and MDKBN, Onan MDKDK, MDKDM and MDKDN, Onan QD 7/9kW, 9.5/11.5kW and 11/13.5kW generator families. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Impeller, cover plate and mechanical seal match the original family; other internals are JMP-specific.

⚙️ Key Features

• Direct aftermarket replacement for JPR-ON7102

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Engine-driven pump with pulley/shaft arrangement as supplied

• Port configuration: Generator-engine hose ports

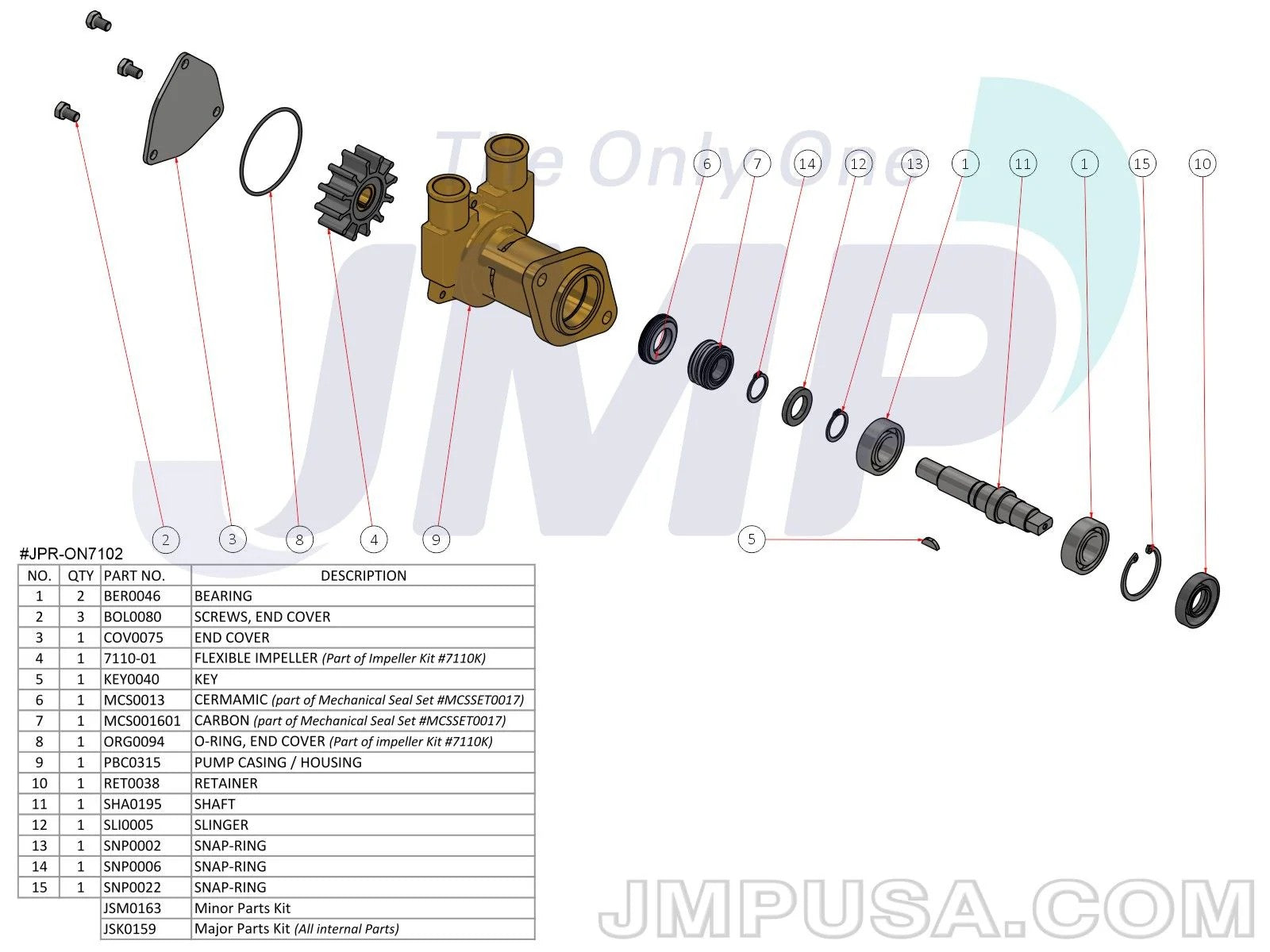

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-ON7102

• 1 × Installed impeller - Installed JMP/Sherwood G702-family flexible impeller

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Mounting gasket 0185-6579 is not included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-ON7102 → Replaces / cross-references 132-0358

• JPR-ON7102 → Replaces / cross-references 132-0459

• JPR-ON7102 → Replaces / cross-references 0132-0459

OEM / Related Numbers:

• 132-0358

• 132-0459

• 0132-0459

Aftermarket / Verified Equivalents:

• Sherwood: G702

• Sherwood: G701

• JMP Marine: JPR-ON7102

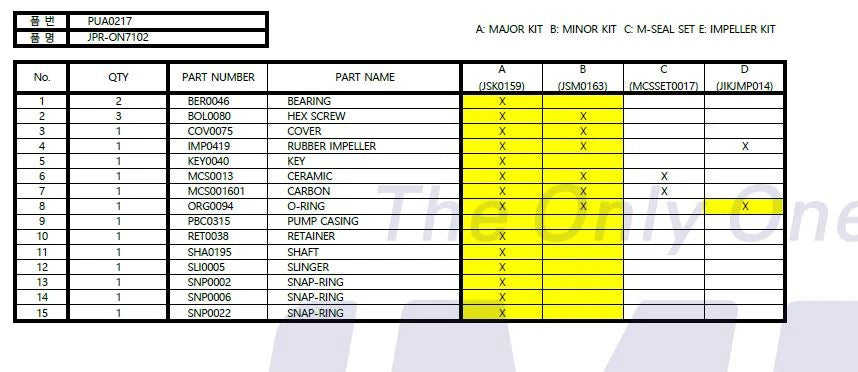

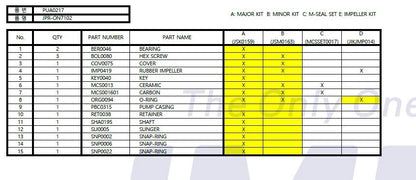

Service Parts / Kits:

• Minor service kit: JMP JSM0163

🚤 Compatibility

Commonly used on:

• JMP Marine / Cummins Onan marine engine-cooling systems

Typically suits:

• Engine models:

• Onan MDKBK, MDKBL, MDKBM and MDKBN

• Onan MDKDK, MDKDM and MDKDN

• Onan QD 7/9kW, 9.5/11.5kW and 11/13.5kW generator families

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: Generator-engine hose ports; Engine-driven pump with pulley/shaft arrangement as supplied. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
