JPR-ON7312 Aftermarket Onan MDKDS Seawater Pump Sherwood G1012, G1009 | Sawley's Select Marine Parts

🔧 Product Description

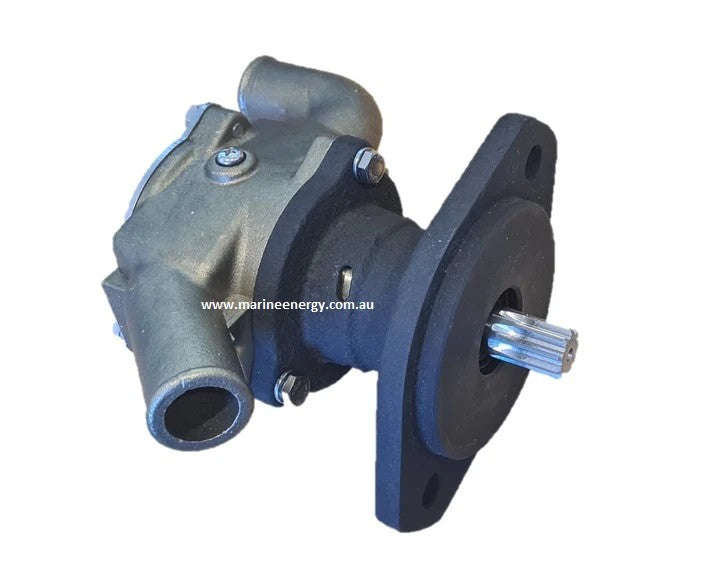

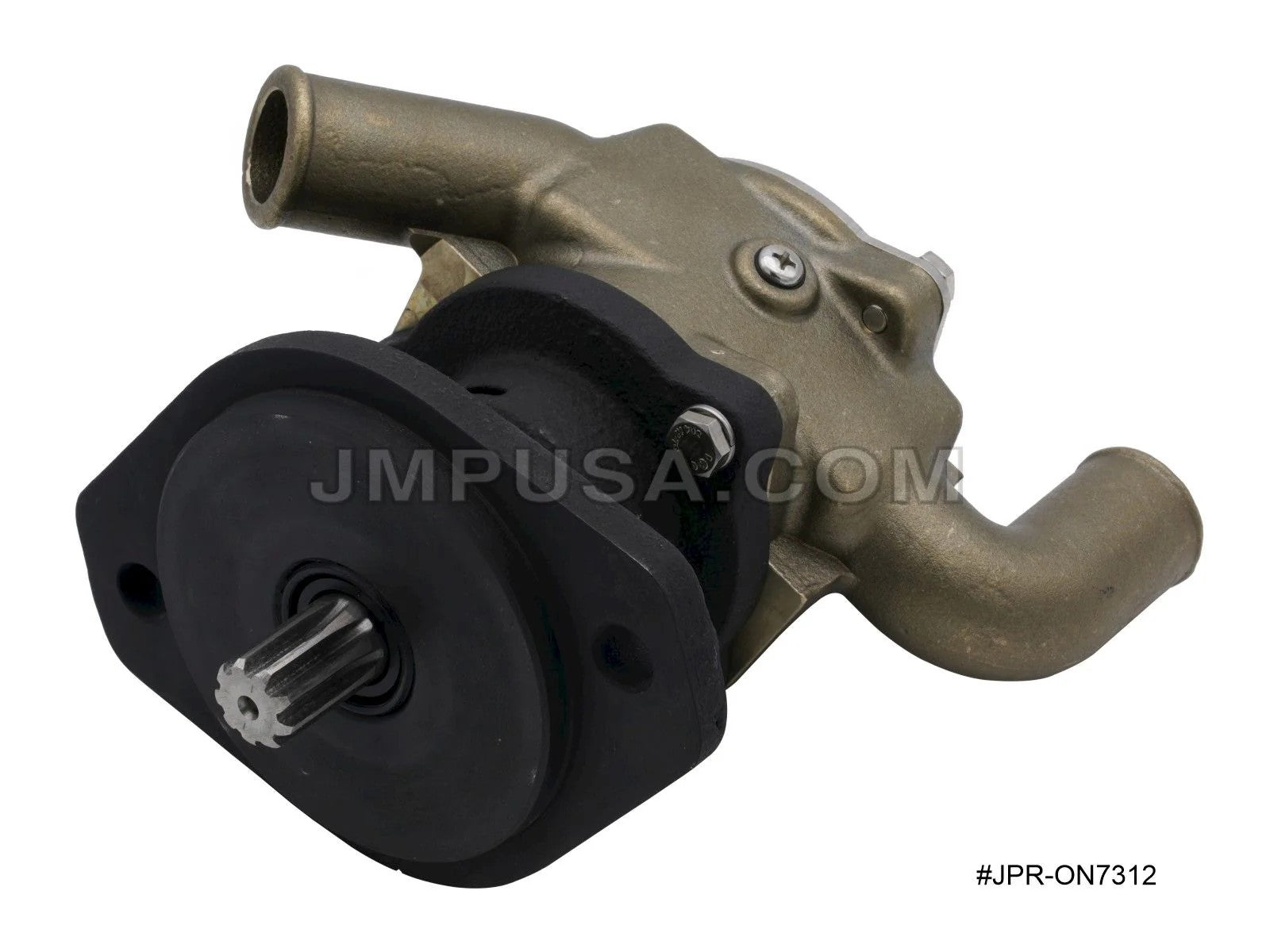

Aftermarket replacement G1012/G1009 Generator Seawater Pump - Part Number: JPR-ON7312

New aftermarket engine-cooling seawater pump for Onan MDKDS, MDKDT and MDKDU, Onan MDKBT and MDKBU, Onan QD 22.5/27/29kW generator families. It replaces the listed OEM pump family and is supplied as a complete assembled pump. G1012 replaced G1009, but the hose connections are not identical.

⚙️ Key Features

• Direct aftermarket replacement for JPR-ON7312

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Pulley/shaft-driven generator seawater pump

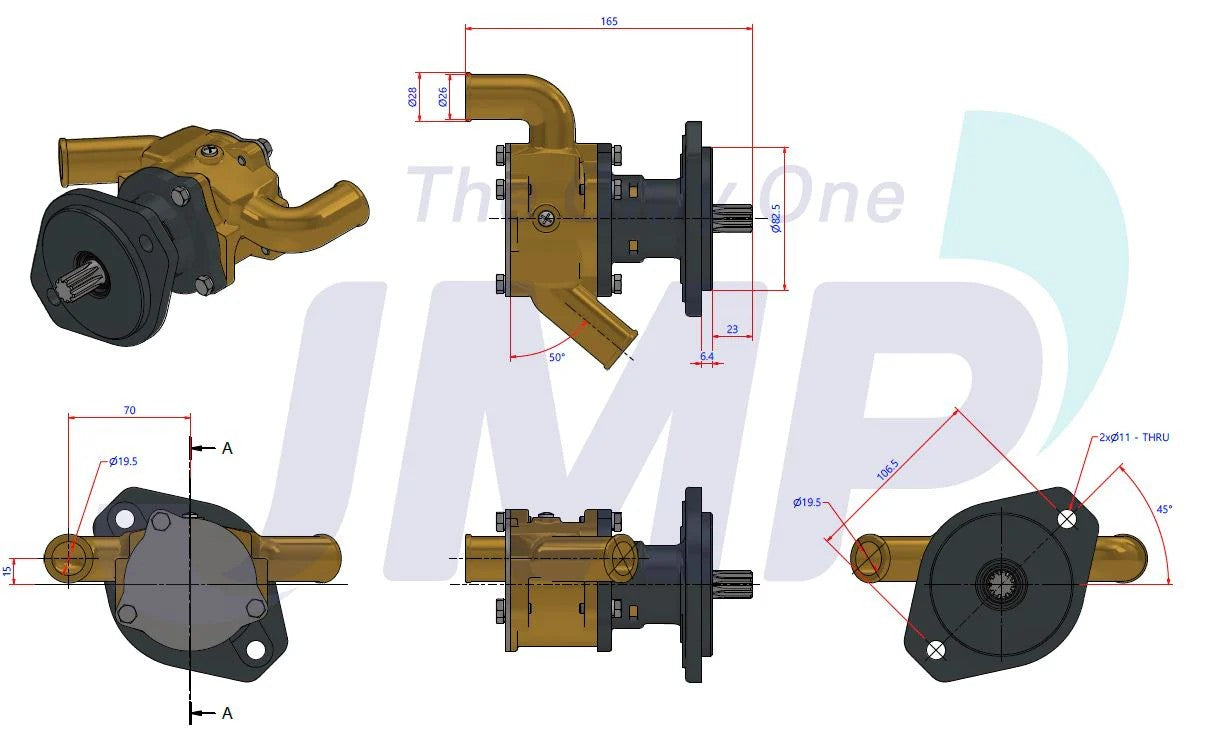

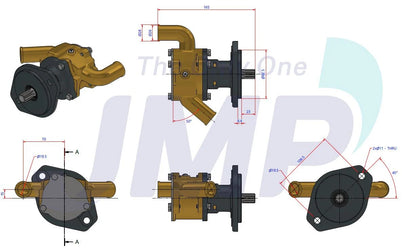

• Port configuration: 1/2-inch hose ports

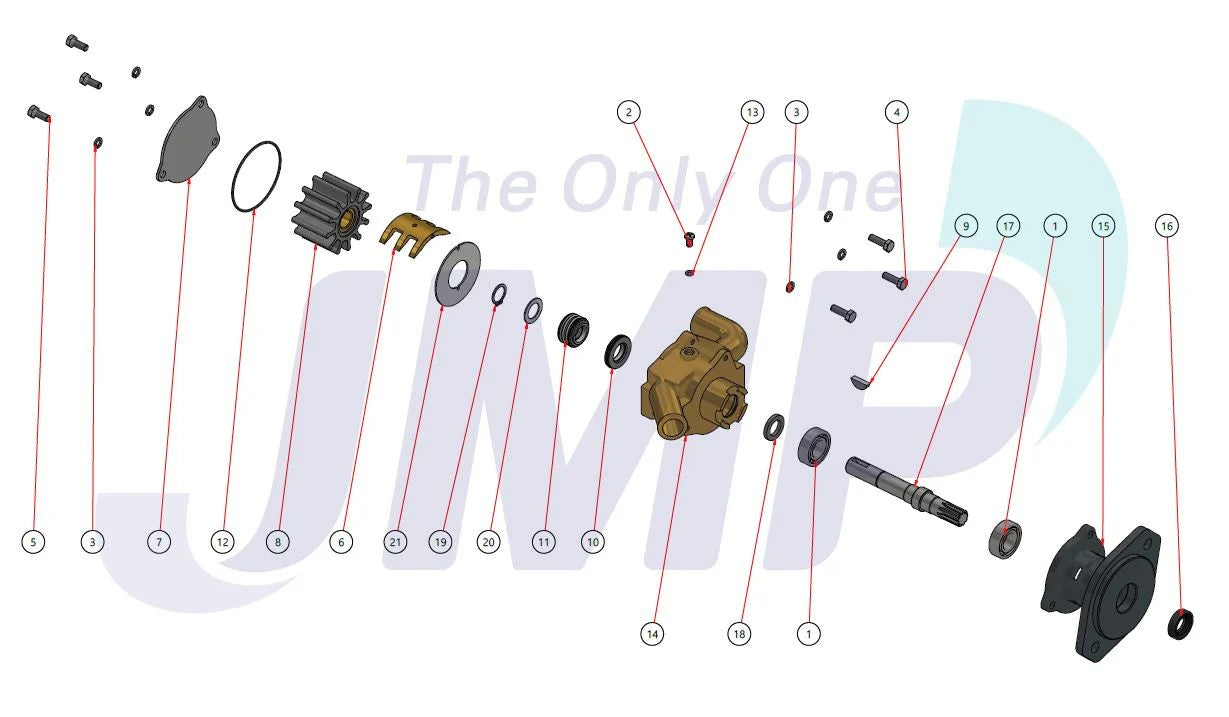

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

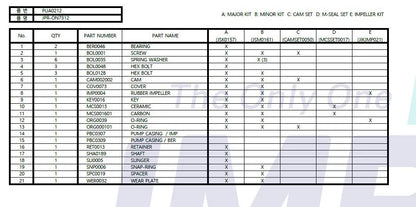

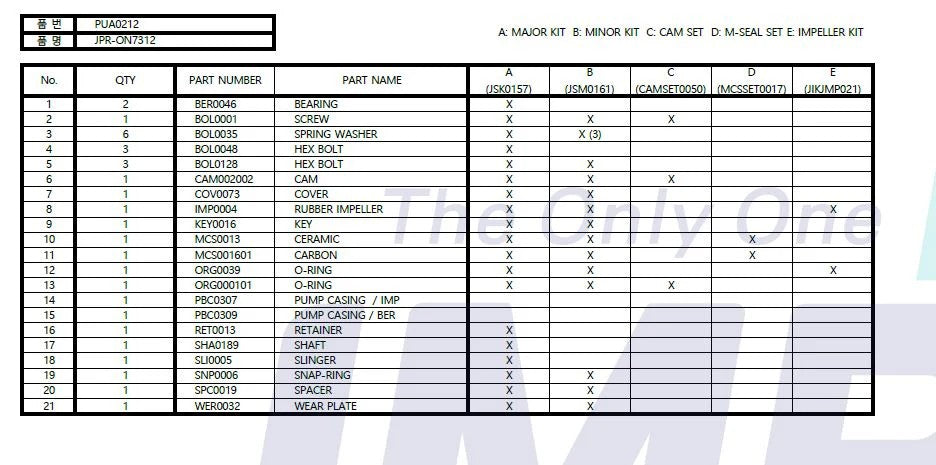

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-ON7312

• 1 × Installed impeller - JMP 7300-01K / Sherwood 10615K

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: G1009-to-G1012 replacement may require hose replumbing

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-ON7312 → Replaces / cross-references A032Y747

• JPR-ON7312 → Replaces / cross-references 132-0464

OEM / Related Numbers:

• A032Y747

• 132-0464

Aftermarket / Verified Equivalents:

• Sherwood: G1012

• Sherwood: G1009

• JMP Marine: JPR-ON7312

Service Parts / Kits:

• Minor service kit: JMP JSM0161

• Major service kit: JMP family for JPR-ON7312

🚤 Compatibility

Commonly used on:

• JMP Marine / Cummins Onan marine engine-cooling systems

Typically suits:

• Engine models:

• Onan MDKDS, MDKDT and MDKDU

• Onan MDKBT and MDKBU

• Onan QD 22.5/27/29kW generator families

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: 1/2-inch hose ports; Pulley/shaft-driven generator seawater pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
