JPR-PK10IH Aftermarket Kohler/Perkins M20 Seawater Pump GM58527 | Sawley's Select Marine Parts

🔧 Product Description

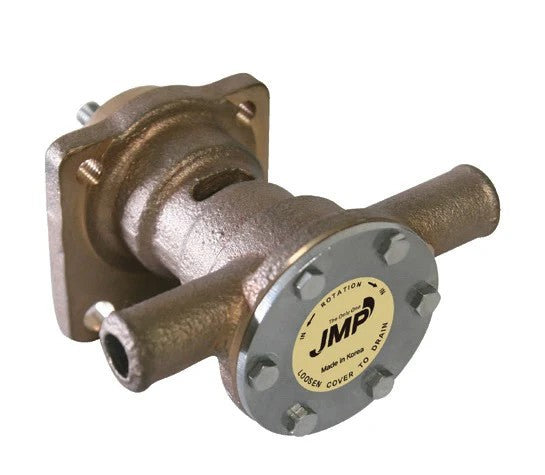

Aftermarket replacement M20 & 6EOD/4.5EFOD Seawater Pump - Part Number: JPR-PK10IH

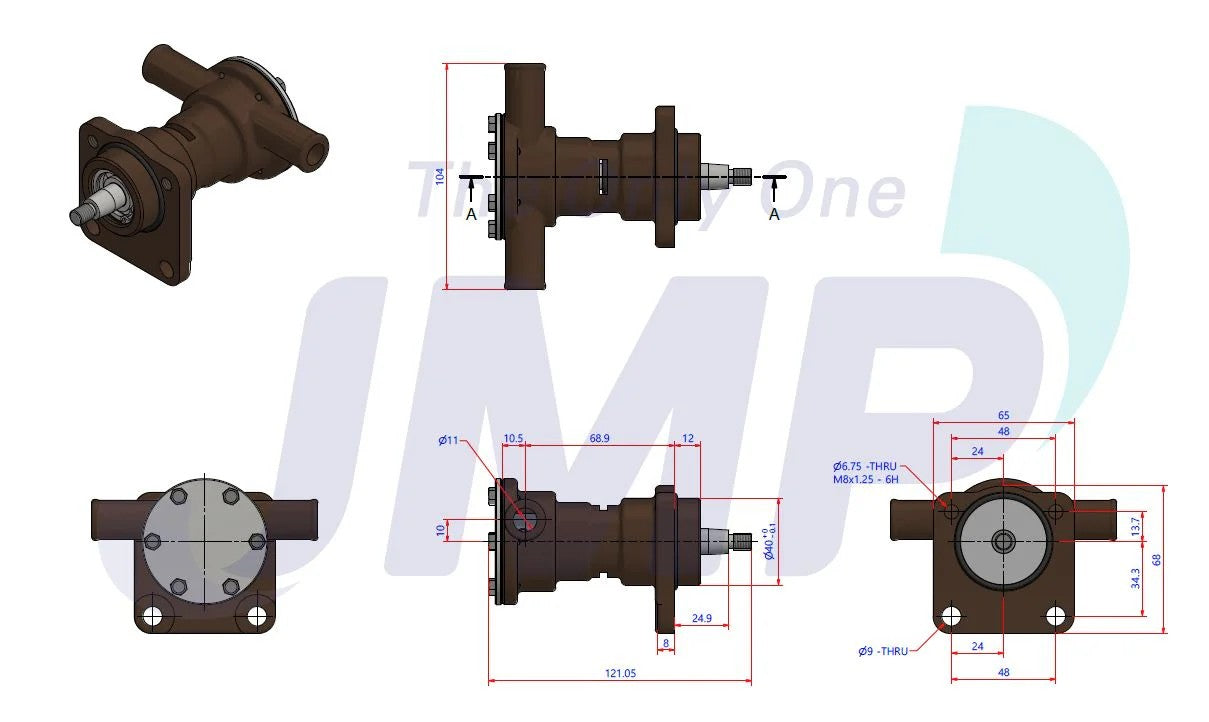

New aftermarket engine-cooling seawater pump for Perkins M20 marine engines, Kohler 6EOD and 4.5EFOD generator sets. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Approximate pump envelope 122 × 104 × 72mm.

⚙️ Key Features

• Direct aftermarket replacement for JPR-PK10IH

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Engine-driven compact pump

• Port configuration: 18mm inlet and 18mm outlet

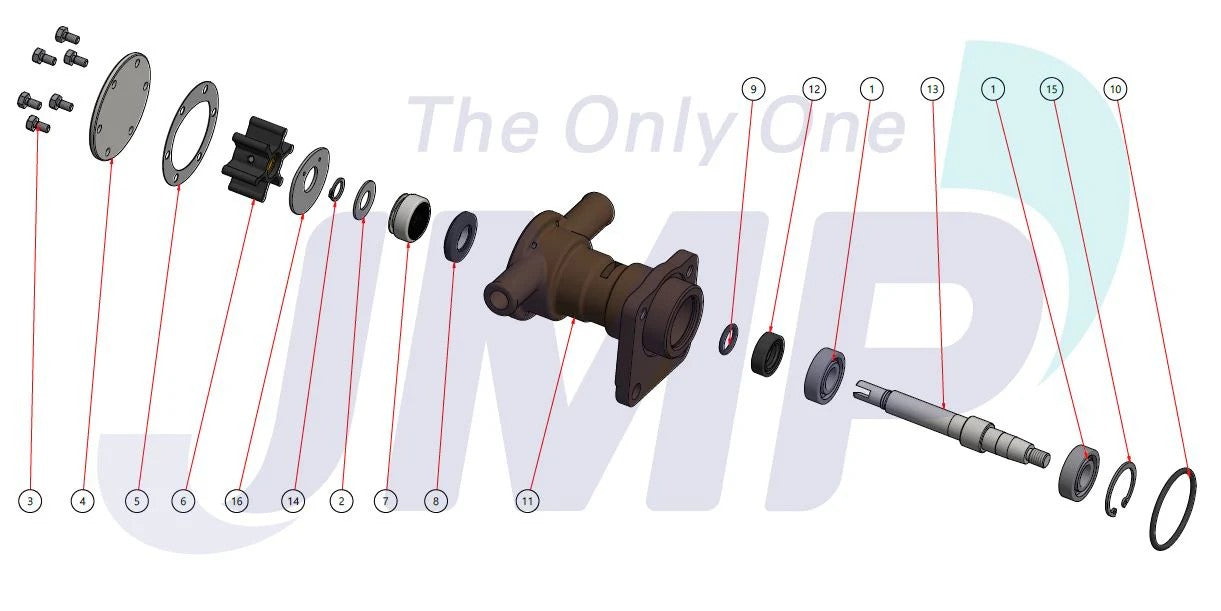

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

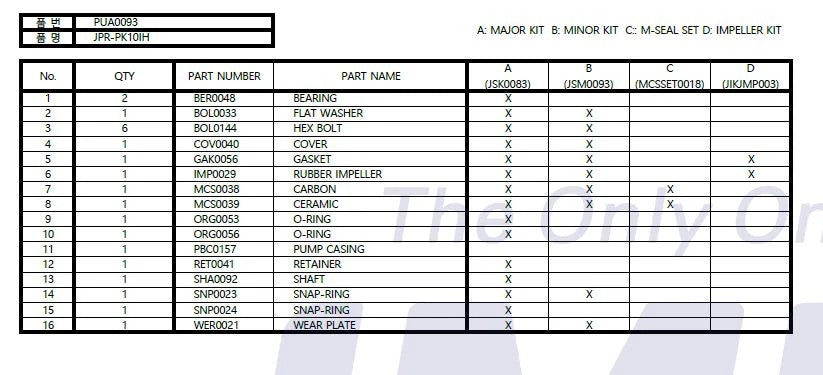

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-PK10IH

• 1 × Installed impeller - Installed JMP flexible impeller for JPR-PK10IH

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Mounting O-ring JMP ORG0056 / Kohler GM58420 included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-PK10IH → Replaces / cross-references GM58527

OEM / Related Numbers:

• GM58527

Aftermarket / Verified Equivalents:

• Jabsco: 29350-1001

• JMP Marine: JPR-PK10IH

Service Parts / Kits:

• JMP service kits for JPR-PK10IH

🚤 Compatibility

Commonly used on:

• JMP Marine / Kohler / Perkins / Jabsco marine engine-cooling systems

Typically suits:

• Engine models:

• Perkins M20 marine engines

• Kohler 6EOD and 4.5EFOD generator sets

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: 18mm inlet and 18mm outlet; Engine-driven compact pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
